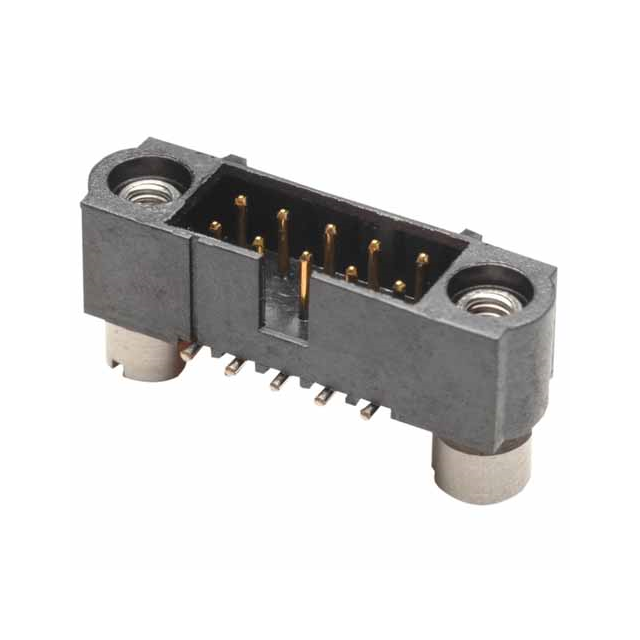

M80-5124442

Obsolete

Harwin Inc.

CONN HEADER SMD 44POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M80-5124442

Obsolete

Harwin Inc.

CONN HEADER SMD 44POS 2MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-5124442

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	3 µm
Contact Finish Thickness - Post	118.1 µin
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2.2 A
Features	Mounting Flange, Mating Flange, Mounting Hardware, Keying Slot
Insulation Color	Black
Insulation Height	5.95 mm
Insulation Height	0.234 in
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Mated Stacking Heights	10.1 mm, 7.95 mm, 11.1 mm, 13.65 mm, 15.1 mm, 7.55 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	44
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	800 V

M80-512 Series

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Mounting Type	Number of Positions Loaded	Insulation Height	Insulation Height	Contact Material	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Insulation Color	Number of Positions	Insulation Material	Contact Shape	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Number of Rows	Style	Voltage Rating	Material Flammability Rating	Shrouding	Connector Type	Termination	Contact Finish - Mating	Mated Stacking Heights	Features	Number of Positions
Harwin Inc. M80-5124442	30 Áin	0.76 Ám	0.079 in	2 mm	Surface Mount	All	5.95 mm	0.234 in	Phosphor Bronze	0.079 in	2 mm	3 µm	118.1 µin	2.2 A	Black	44	Polyphenylene Sulfide (PPS) Glass Filled	Circular	Tin	-55 °C	125 °C	Male Pin	2	Board to Board Cable	800 V	UL94 V-0	Shrouded - 4 Wall	Header	Solder	Gold	7.55 mm 7.95 mm 10.1 mm 11.1 mm 13.65 mm 15.1 mm	Keying Slot Mating Flange Mounting Flange Mounting Hardware
Harwin Inc. M80-5123042	30 Áin	0.76 Ám	0.079 in	2 mm	Surface Mount	All	5.95 mm	0.234 in	Phosphor Bronze	0.079 in	2 mm	3 µm	118.1 µin	2.2 A	Black	30	Polyphenylene Sulfide (PPS) Glass Filled	Circular	Tin	-55 °C	125 °C	Male Pin	2	Board to Board Cable	800 V	UL94 V-0	Shrouded - 4 Wall	Header	Solder	Gold	7.55 mm 7.95 mm 10.1 mm 11.1 mm 13.65 mm 15.1 mm	Keying Slot Mating Flange Mounting Flange Mounting Hardware
Harwin Inc. M80-5122405	30 Áin	0.76 Ám	0.079 in	2 mm	Surface Mount	All	5.95 mm	0.234 in	Phosphor Bronze	0.079 in	2 mm	0.76 µm	30 µin	2.2 A	Black	24	Polyphenylene Sulfide (PPS) Glass Filled	Circular	Gold	-55 °C	125 °C	Male Pin	2	Board to Board Cable	800 V	UL94 V-0	Shrouded - 4 Wall	Header	Solder	Gold	7.55 mm 7.95 mm 10.1 mm 11.1 mm 13.65 mm 15.1 mm	Keying Slot Mating Flange Mounting Flange Mounting Hardware
Harwin Inc. M80-5122022	29.5 Áin	0.75 Ám	0.079 in	2 mm	Surface Mount	All	5.95 mm	0.234 in	Phosphor Bronze	0.079 in	2 mm	3 µm	118.1 µin	2.2 A	Black	20	Polyphenylene Sulfide (PPS) Glass Filled	Circular	Tin-Lead	-55 °C	125 °C	Male Pin	2	Board to Board Cable	800 V	UL94 V-0	Shrouded - 4 Wall	Header	Solder	Gold	7.55 mm 7.95 mm 10.1 mm 11.1 mm 13.65 mm 15.1 mm	Keying Slot Mating Flange Mounting Flange Mounting Hardware
Harwin Inc. M80-5124622	30 Áin	0.76 Ám	0.079 in	2 mm	Surface Mount	All	5.95 mm	0.234 in	Phosphor Bronze	0.079 in	2 mm	3 µm	118.1 µin	2.2 A	Black	46	Polyphenylene Sulfide (PPS) Glass Filled	Circular	Tin-Lead	-55 °C	125 °C	Male Pin	2	Board to Board Cable	800 V	UL94 V-0	Shrouded - 4 Wall	Header	Solder	Gold	7.55 mm 7.95 mm 10.1 mm 11.1 mm 13.65 mm 15.1 mm	Keying Slot Mating Flange Mounting Flange Mounting Hardware
Harwin Inc. M80-5124242	29.5 Áin	0.75 Ám	0.079 in	2 mm	Surface Mount	All	5.95 mm	0.234 in	Phosphor Bronze	0.079 in	2 mm	3 µm	118.1 µin	2.2 A	Black	42	Polyphenylene Sulfide (PPS) Glass Filled	Circular	Tin	-55 °C	125 °C	Male Pin	2	Board to Board Cable	800 V	UL94 V-0	Shrouded - 4 Wall	Header	Solder	Gold	7.55 mm 7.95 mm 10.1 mm 11.1 mm 13.65 mm 15.1 mm	Keying Slot Mating Flange Mounting Flange Mounting Hardware
Harwin Inc. M80-5121605	30 Áin	0.76 Ám	0.079 in	2 mm	Surface Mount	All	5.95 mm	0.234 in	Phosphor Bronze	0.079 in	2 mm	0.76 µm	30 µin	2.2 A	Black		Polyphenylene Sulfide (PPS) Glass Filled	Circular	Gold	-55 °C	125 °C	Male Pin	2	Board to Board Cable	800 V	UL94 V-0	Shrouded - 4 Wall	Header	Solder	Gold	7.55 mm 7.95 mm 10.1 mm 11.1 mm 13.65 mm 15.1 mm	Keying Slot Mating Flange Mounting Flange Mounting Hardware	16
Harwin Inc. M80-5121005	30 Áin	0.76 Ám	0.079 in	2 mm	Surface Mount	All	5.95 mm	0.234 in	Phosphor Bronze	0.079 in	2 mm	0.76 µm	30 µin	2.2 A	Black	10	Polyphenylene Sulfide (PPS) Glass Filled	Circular	Gold	-55 °C	125 °C	Male Pin	2	Board to Board Cable	800 V	UL94 V-0	Shrouded - 4 Wall	Header	Solder	Gold	7.55 mm 7.95 mm 10.1 mm 11.1 mm 13.65 mm 15.1 mm	Keying Slot Mating Flange Mounting Flange Mounting Hardware
Harwin Inc. M80-5124405	30 Áin	0.76 Ám	0.079 in	2 mm	Surface Mount	All	5.95 mm	0.234 in	Phosphor Bronze	0.079 in	2 mm	0.76 µm	30 µin	2.2 A	Black	44	Polyphenylene Sulfide (PPS) Glass Filled	Circular	Gold	-55 °C	125 °C	Male Pin	2	Board to Board Cable	800 V	UL94 V-0	Shrouded - 4 Wall	Header	Solder	Gold	7.55 mm 7.95 mm 10.1 mm 11.1 mm 13.65 mm 15.1 mm	Keying Slot Mating Flange Mounting Flange Mounting Hardware
Harwin Inc. M80-5120642P	29.5 Áin	0.75 Ám	0.079 in	2 mm	Surface Mount	All	5.95 mm	0.234 in	Phosphor Bronze	0.079 in	2 mm	0.3 µm	12 µin	2.2 A	Black	6	Polyphenylene Sulfide (PPS) Glass Filled	Circular	Tin	-55 °C	125 °C	Male Pin	2	Board to Cable/Wire	800 VAC	UL94 V-0	Shrouded - 4 Wall	Header	Solder	Gold	7.55 mm 8.05 mm	Keying Slot Mating Flange Mounting Flange Mounting Hardware

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

M80-512 Series

Connector Header Surface Mount 44 position 0.079" (2.00mm)
