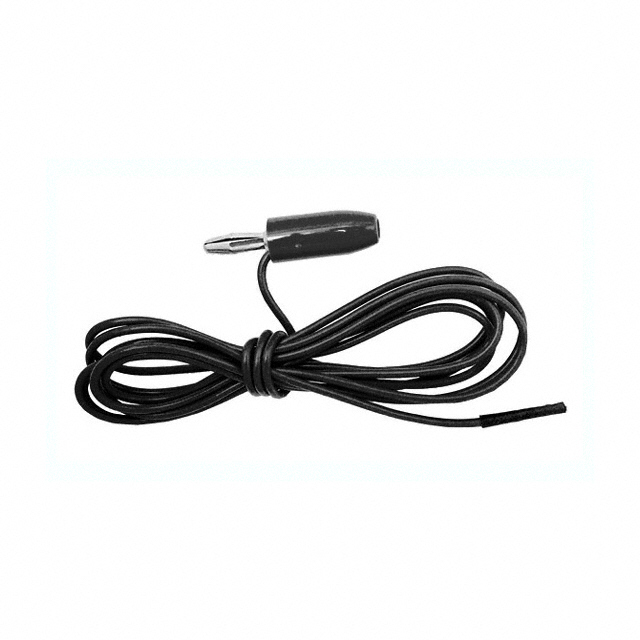

9169-24 BLK

Active

E-Z-Hook

TEST LEAD BANANA TO SOCKET 24"

Search across all available documentation for this part.

Active

E-Z-Hook

TEST LEAD BANANA TO SOCKET 24"

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	9169-24 BLK	9169-24 Series

1st Connector	Single, Stackable, Banana Plug	Single, Stackable, Banana Plug
2nd Connector	Socket, Square	Socket, Square
2nd Connector	0.64 mm	0.64 mm
2nd Connector	0.025 in	0.025 in
Cable Length	24 "	24 "
Cable Length	609.6 mm	609.6 mm
Configuration	Banana to Socket	Banana to Socket
Contents	1 Lead, Black	Multiple Colors, 1 Lead, Black
Contents	-	10 Leads
Current Rating (Amps)	2.5 A	2.5 A
Material - Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Stacking Method	Front Stacking	Front Stacking
Type	Patch Cord	Patch Cord
Voltage - Rated	1 kV	1 kV
Voltage - Rated	1000 V	1000 V
Wire Gauge	22 AWG	22 AWG

TEST LEAD BANANA/SOCKET 24" 10PC

Part	Configuration	Material - Insulation	1st Connector	Stacking Method	Voltage - Rated	Voltage - Rated	Current Rating (Amps)	Wire Gauge	Type	Cable Length	Cable Length	2nd Connector	2nd Connector	2nd Connector	Contents	Contents
E-Z-Hook 9169-24-S	Banana to Socket	Poly-Vinyl Chloride (PVC)	Banana Plug, Single, Stackable	Front Stacking	1 kV	1000 V	2.5 A	22 AWG	Patch Cord	24 "	609.6 mm	Socket, Square	0.64 mm	0.025 in	Multiple Colors	10 Leads
E-Z-Hook 9169-24 BLK	Banana to Socket	Poly-Vinyl Chloride (PVC)	Banana Plug, Single, Stackable	Front Stacking	1 kV	1000 V	2.5 A	22 AWG	Patch Cord	24 "	609.6 mm	Socket, Square	0.64 mm	0.025 in	1 Lead, Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

24.0" (609.60mm) Banana Plug, Single, Stackable To Socket, Square, 0.025" (0.64mm) Patch Cord 1000V (1kV)
