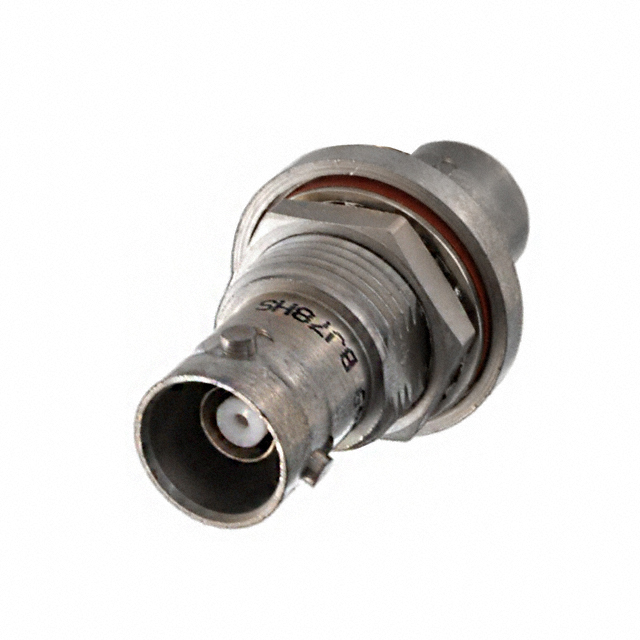

BJ78HS

Active

Cinch Connectivity Solutions Trompeter

CONN ADAPT JCK-JCK TRB TWIN/TRI

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN ADAPT JCK-JCK TRB TWIN/TRI

Technical Specifications

Parameters and characteristics for this part

Specification	BJ78HS

Adapter Series	TRB Twinaxial/Triaxial to TRB Twinaxial/Triaxial
Adapter Type	Jack to Jack
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	TRB Twinaxial/Triaxial (Concentric) Jack, Female Socket
Convert To (Adapter End)	TRB Twinaxial/Triaxial (Concentric) Jack, Female Socket
Fastening Type	Bayonet Lock
Features	Hermetically Sealed, Three Lug
Frequency - Max [Max]	500 MHz
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mounting Feature	Bulkhead
Style	Straight

CONN ADAPT JCK-JCK TRB TWIN/TRI

Part	Style	Fastening Type	Features	Convert From (Adapter End)	Center Contact Plating	Mounting Feature	Adapter Type	Center Gender	Frequency - Max [Max]	Includes	Convert To (Adapter End)	Adapter Series	Conversion Type
Cinch Connectivity Solutions Trompeter BJ78HS	Straight	Bayonet Lock	Hermetically Sealed, Three Lug	TRB Twinaxial/Triaxial (Concentric) Jack, Female Socket	Gold	Bulkhead	Jack to Jack	Female to Female	500 MHz	1 Connector, 1 Lockwasher, 1 Nut	TRB Twinaxial/Triaxial (Concentric) Jack, Female Socket	TRB Twinaxial/Triaxial to TRB Twinaxial/Triaxial	Same Series

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 310.20

General part information

Adapter Coaxial Connector TRB Twinaxial/Triaxial (Concentric) Jack, Female Socket To TRB Twinaxial/Triaxial (Concentric) Jack, Female Socket

Technical documentation and resources

No documents available
