Technical Specifications
Parameters and characteristics for this part
| Specification | SFSDT-15-28-G-15.00-S |
|---|---|
| Cable Termination | Crimp |
| Color | Blue, Individual |
| Connector Type | Socket to Individual Wire Leads |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Length | 381 mm |
| Length [x] | 15 in |
| Number of Positions | 30 |
| Number of Rows | 2 |
| Pitch - Connector | 0.05 in |
| Pitch - Connector | 1.27 mm |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.71 | |
| 10 | $ 9.90 | |||
| 25 | $ 9.64 | |||
Description
General part information
SFSDT-15 Series

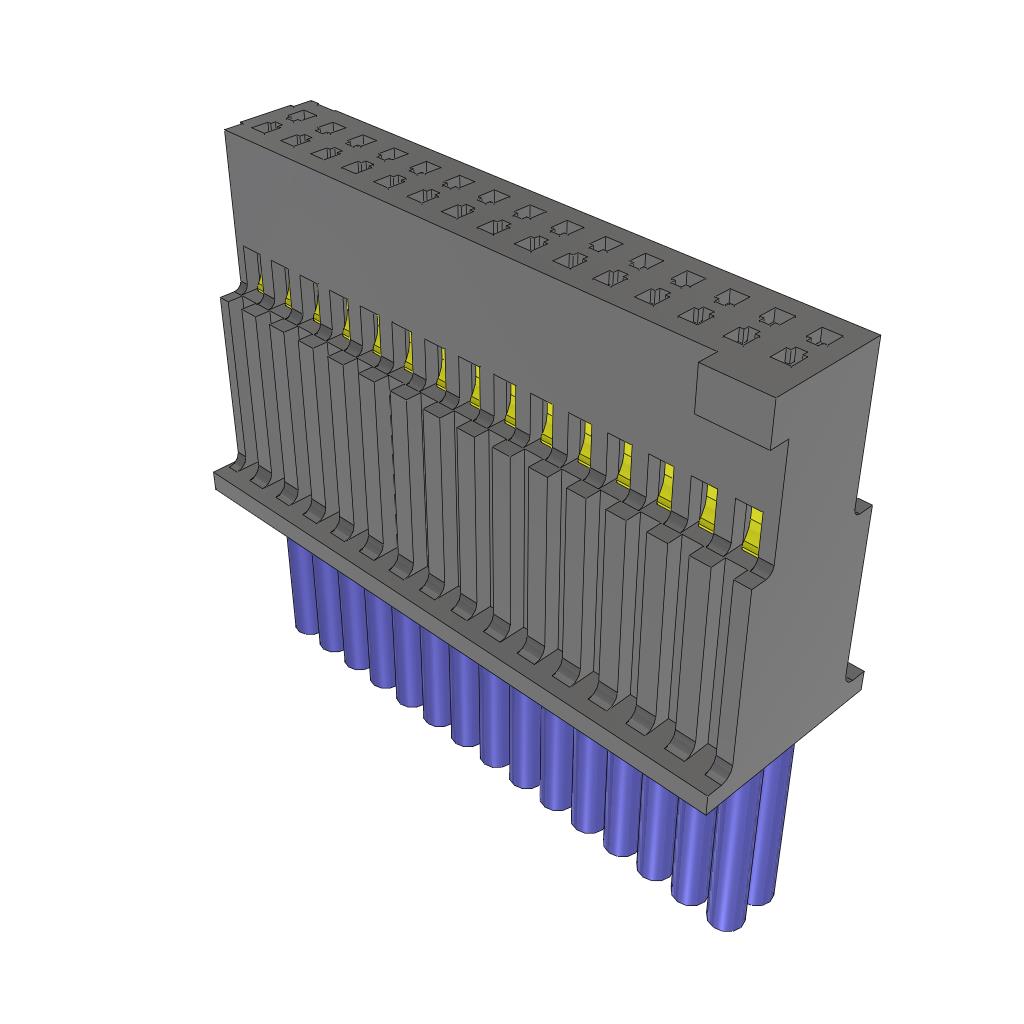

30 Position Cable Assembly Rectangular Socket to Individual Wire Leads 1.25' (381.00mm)
