MDD312-18N1

Active

IXYS

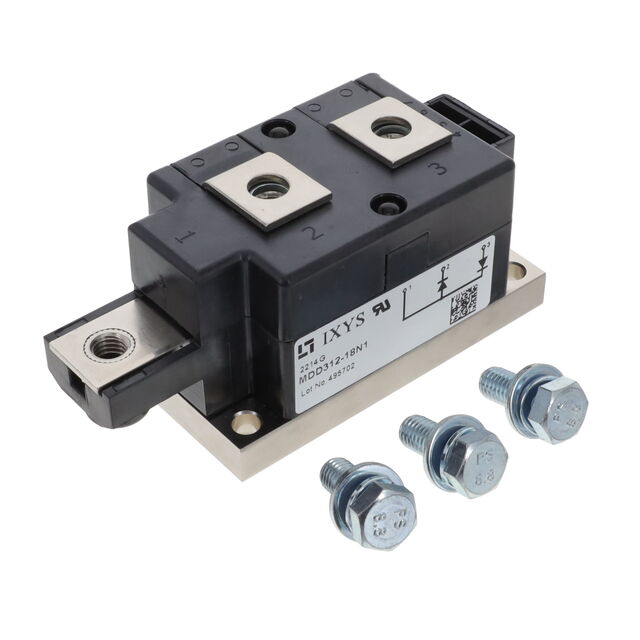

DIODE MODULE GP 1800V 310A Y1-CU

Search across all available documentation for this part.

Active

IXYS

DIODE MODULE GP 1800V 310A Y1-CU

Technical Specifications

Parameters and characteristics for this part

Specification	MDD312-18N1

Current - Average Rectified (Io) (per Diode)	310 A
Current - Reverse Leakage @ Vr	30 mA
Diode Configuration	1 Pair Series Connection
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-40 °C
Package / Case	Y1-CU
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	Y1-CU
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	1800 V
Voltage - Forward (Vf) (Max) @ If	1.32 V

Part	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Supplier Device Package	Speed	Speed	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Technology	Current - Reverse Leakage @ Vr	Package / Case	Diode Configuration	Current - Average Rectified (Io) (per Diode)	Mounting Type
IXYS MDD312-18N1	150 °C	-40 °C	Y1-CU	Standard Recovery >500ns	200 mA	1800 V	1.32 V	Standard	30 mA	Y1-CU	1 Pair Series Connection	310 A	Chassis Mount
IXYS MDD312-20N1	150 °C	-40 °C	Y1-CU	Standard Recovery >500ns	200 mA	2000 V	1.32 V	Standard	30 mA	Y1-CU	1 Pair Series Connection	310 A	Chassis Mount
IXYS MDD312-14N1	150 °C	-40 °C	Y1-CU	Standard Recovery >500ns	200 mA	1400 V	1.32 V	Standard	30 mA	Y1-CU	1 Pair Series Connection	310 A	Chassis Mount
IXYS MDD312-16N1	150 °C	-40 °C	Y1-CU	Standard Recovery >500ns	200 mA		1.32 V	Standard	30 mA	Y1-CU	1 Pair Series Connection	310 A	Chassis Mount
IXYS MDD312-22N1	150 °C	-40 °C	Y1-CU	Standard Recovery >500ns	200 mA	2200 V	1.32 V	Standard	30 mA	Y1-CU	1 Pair Series Connection	310 A	Chassis Mount
