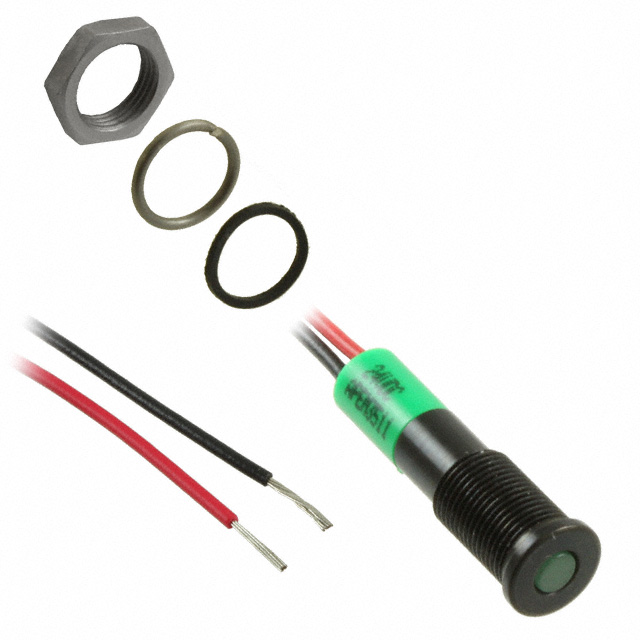

Q6F3BXXG24E
ActiveAPEM
LED PM INDICATOR FLUSH GRN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | Q6F3BXXG24E |
|---|---|
| Ingress Protection | IP67 |
| Lamp Color | Green |
| Lens Color | Green |
| Lens Size | 3 mm |
| Lens Size | T-1 |
| Lens Transparency | Diffused |
| Millicandela Rating | 8 mcd |
| Panel Cutout Dimensions | 6.1 mm |
| Panel Cutout Dimensions | 0.24 in |
| Panel Cutout Shape | Round |
| Ratings | DC |
| Termination Style | Wire Leads - 7.87" (200.00mm) |
| Type | LED |
| Viewing Angle | 100 ° |
| Voltage | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 17.07 | |
| 25 | $ 12.46 | |||
| 100 | $ 11.33 | |||
| 500 | $ 10.41 | |||
Description
General part information
Q6F3BXXG Series
LED Panel Indicator Green Diffused 100° 24V 20mA Wire Leads - 7.87" (200.00mm)
