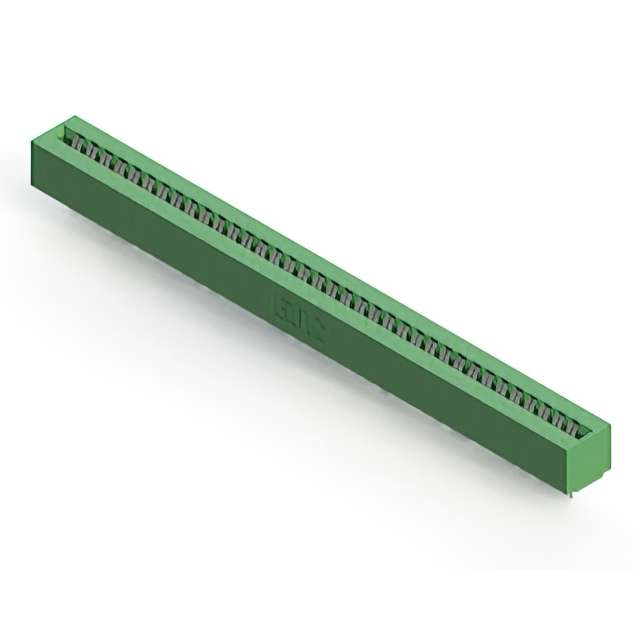

316-036-400-101
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 72POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
316-036-400-101
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 72POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 316-036-400-101 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 72 |
| Number of Positions/Bay/Row [custom] | 36 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 1 |
316-036 Series
| Part | Contact Type | Termination | Pitch [x] | Pitch [x] | Number of Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Card Type | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Gender | Contact Finish | Number of Positions/Bay/Row [custom] | Color | Read Out | Material - Insulation | Termination Rows | Number of Positions | Mounting Type | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Cantilever | Solder | 0.156 in | 3.96 mm | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Non Specified - Dual Edge | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Female | Gold | 36 | Green | Dual | Polyester Thermoplastic | 1 | 72 | Panel Mount Through Hole | Copper Alloy | 10 Áin | 0.25 Ám | |
EDAC Inc. | Cantilever | Solder | 0.156 in | 3.96 mm | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Non Specified - Dual Edge | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Female | Tin | 36 | Green | Dual | Polyester Thermoplastic | 1 | 72 | Panel Mount Through Hole | Copper Alloy | |||
EDAC Inc. | Cantilever | Solder | 0.156 in | 3.96 mm | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Non Specified - Dual Edge | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Female | Tin | 36 | Green | Dual | Polyester Thermoplastic | 1 | 72 | Panel Mount Through Hole | Copper Alloy | |||
EDAC Inc. | Cantilever | Solder | 0.156 in | 3.96 mm | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Non Specified - Dual Edge | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Female | Tin | 36 | Green | Dual | Polyester Thermoplastic | 1 | 72 | Panel Mount Through Hole | Copper Alloy | |||
EDAC Inc. | Cantilever | Solder | 0.156 in | 3.96 mm | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Non Specified - Dual Edge | Flush Mount M3 Threaded Insert Top Opening | Female | Tin | 36 | Green | Dual | Polyester Thermoplastic | 1 | 72 | Panel Mount Through Hole | Copper Alloy | |||||
EDAC Inc. | Cantilever | Solder | 0.156 in | 3.96 mm | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | Female | Gold | 36 | Green | Dual | Polyester Thermoplastic | 1 | 36 | Through Hole | Copper Alloy | 10 Áin | 0.25 Ám | |||
EDAC Inc. | Cantilever | Solder Eyelet(s) | 0.156 in | 3.96 mm | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Non Specified - Dual Edge | Female | Tin | 36 | Green | Dual | Polyester Thermoplastic | 1 | 72 | Free Hanging (In-Line) | Copper Alloy | ||||||
EDAC Inc. | Cantilever | Solder Eyelet(s) | 0.156 in | 3.96 mm | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | Female | Tin | 36 | Green | Dual | Polyester Thermoplastic | 1 | 72 | Copper Alloy | ||||||
EDAC Inc. | Cantilever | Solder | 0.156 in | 3.96 mm | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Non Specified - Dual Edge | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Female | Gold | 36 | Green | Dual | Polyester Thermoplastic | 1 | 72 | Panel Mount Through Hole | Copper Alloy | 10 Áin | 0.25 Ám | |
EDAC Inc. | Cantilever | Solder Eyelet(s) | 0.156 in | 3.96 mm | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | Female | Tin | 36 | Green | Dual | Polyester Thermoplastic | 1 | 72 | Copper Alloy | Card Guides |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 18.60 | |
Description
General part information
316-036 Series
72 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Green
