T4062123004-005
ActiveTE Connectivity AMP Connectors

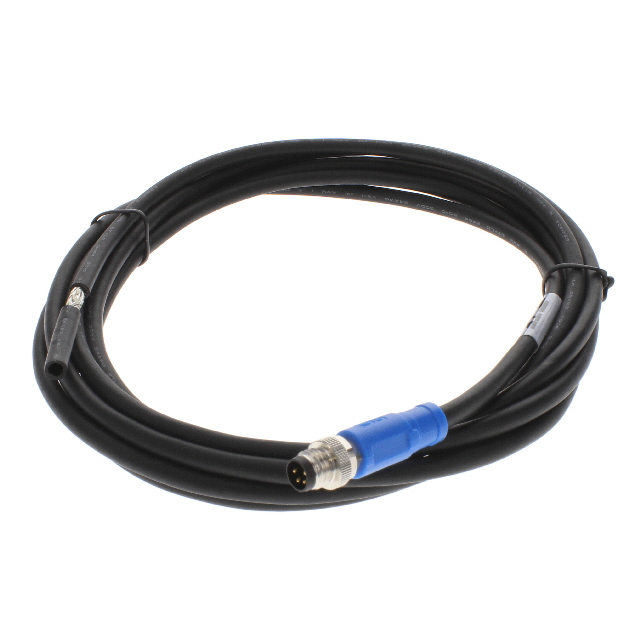

CIRC CBL 4POS RCPT TO PLUG 16.4'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T4062123004-005
ActiveTE Connectivity AMP Connectors
CIRC CBL 4POS RCPT TO PLUG 16.4'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T4062123004-005 | T40621 Series |
|---|---|---|
| 1st Connector Gender | Male Pins | Male Pins |
| 1st Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 4 | 3 - 4 |
| 1st Connector Number of Positions Loaded | All | All |
| 1st Connector Orientation | A | A |
| 1st Connector Shell Size - Insert | M8 | M8 |
| 1st Connector Type | Receptacle | Receptacle |
| 2nd Connector Gender | Female Sockets | Female Sockets |
| 2nd Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| 2nd Connector Number of Positions | 4 | 3 - 4 |
| 2nd Connector Number of Positions Loaded | All | All |
| 2nd Connector Shell Size - Insert | M8 | M8 |
| 2nd Connector Type | Plug | Plug, Plug, Right Angle |
| Assembly Configuration | Standard | Standard |
| Cable Material | Polyurethane (PUR) | Polyvinyl Chloride (PVC), Polyurethane (PUR) |
| Cable Type | Round | Round |
| Color | Gray | Black, Gray |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Length | - | 1.64 ft |
| Length | - | 500 mm |
| Shielding | Shielded | Shielded |
| Usage | Industrial Environments | Industrial Environments |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 39.24 | |
| 10 | $ 32.53 | |||
| 25 | $ 30.19 | |||
| 50 | $ 28.55 | |||
| 100 | $ 26.99 | |||
| 250 | $ 25.08 | |||
T40621 Series
CBL 3POS MALE TO FMALE 1.64'
| Part | Assembly Configuration | Cable Material | 1st Connector Mounting Type | Length [x] | Length [x] | 2nd Connector Number of Positions Loaded | 1st Connector Orientation | Shielding | 2nd Connector Gender | Cable Type | 2nd Connector Shell Size - Insert | 1st Connector Shell Size - Insert | 1st Connector Gender | Color | 1st Connector Number of Positions | Usage | 1st Connector Type | 1st Connector Number of Positions Loaded | 2nd Connector Number of Positions | Ingress Protection | 2nd Connector Mounting Type | 2nd Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4062113003-001 | Standard | Polyvinyl Chloride (PVC) | Free Hanging (In-Line) | 1.64 ft | 500 mm | All | A | Shielded | Female Sockets | Round | M8 | M8 | Male Pins | Black | 3 | Industrial Environments | Receptacle | All | 3 | IP67 - Dust Tight, Waterproof | Free Hanging (In-Line) | Plug |
TE Connectivity AMP Connectors T4062123003-001 | Standard | Polyurethane (PUR) | Free Hanging (In-Line) | 1.64 ft | 500 mm | All | A | Shielded | Female Sockets | Round | M8 | M8 | Male Pins | Gray | 3 | Industrial Environments | Receptacle | All | 3 | IP67 - Dust Tight, Waterproof | Free Hanging (In-Line) | Plug |
TE Connectivity AMP Connectors T4062124004-005 | Standard | Polyurethane (PUR) | Free Hanging (In-Line) | All | A | Shielded | Female Sockets | Round | M8 | M8 | Male Pins | Gray | 4 | Industrial Environments | Receptacle | All | 4 | IP67 - Dust Tight, Waterproof | Free Hanging (In-Line) | Plug, Right Angle | ||
TE Connectivity AMP Connectors T4062123004-005 | Standard | Polyurethane (PUR) | Free Hanging (In-Line) | All | A | Shielded | Female Sockets | Round | M8 | M8 | Male Pins | Gray | 4 | Industrial Environments | Receptacle | All | 4 | IP67 - Dust Tight, Waterproof | Free Hanging (In-Line) | Plug | ||
TE Connectivity AMP Connectors T4062113004-001 | Standard | Polyvinyl Chloride (PVC) | Free Hanging (In-Line) | 1.64 ft | 500 mm | All | A | Shielded | Female Sockets | Round | M8 | M8 | Male Pins | Black | 4 | Industrial Environments | Receptacle | All | 4 | IP67 - Dust Tight, Waterproof | Free Hanging (In-Line) | Plug |
Description
General part information
T40621 Series
Circular Cable Assembly Shielded 16.40' (5.00m)
