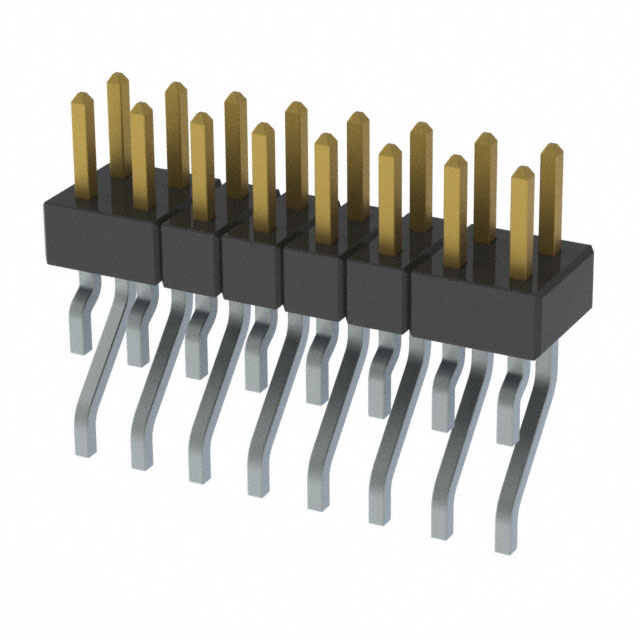

MMT-108-01-SM-DH-P-TR

Active

Samtec Inc.

CONN HEADER SMD R/A 16POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

MMT-108-01-SM-DH-P-TR

Active

Samtec Inc.

CONN HEADER SMD R/A 16POS 2MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MMT-108-01-SM-DH-P-TR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Mating	3.2 mm
Contact Length - Mating	0.126 "
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Height [custom]	0.157 in
Insulation Height [custom]	4 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

MMT-108 Series

...

Part	Insulation Color	Contact Finish - Post	Contact Type	Material Flammability Rating	Number of Rows	Style	Contact Shape	Connector Type	Number of Positions	Pitch - Mating [x]	Pitch - Mating [x]	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Insulation Height	Insulation Height	Termination	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Insulation Material	Fastening Type	Mounting Type	Number of Positions Loaded	Features	Insulation Height [custom]	Insulation Height [custom]	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded
Samtec Inc. MMT-108-01-F-SH-TR	Black	Tin	Male Pin	UL94 V-0	1	Board to Board Cable	Square	Header	8	0.079 in	2 mm	3.2 mm	0.126 "	3 A	3 µin	0.076 µm	Gold	0.079 in	2 mm	Solder	Unshrouded	-55 °C	125 °C	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Push-Pull	Surface Mount Right Angle	All
Samtec Inc. MMT-108-02-S-SH-P-TR	Black	Tin	Male Pin	UL94 V-0	1	Board to Board Cable	Square	Header	8	0.079 in	2 mm	4.45 mm	0.175 in	3 A	30 Áin	0.76 Ám	Gold	0.079 in	2 mm	Solder	Unshrouded	-55 °C	125 °C	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Push-Pull	Surface Mount Right Angle	All	Pick and Place
Samtec Inc. MMT-108-01-S-DH-P-TR	Black	Tin	Male Pin	UL94 V-0	2	Board to Board Cable	Square	Header		0.079 in	2 mm	3.2 mm	0.126 "	3 A	30 Áin	0.76 Ám	Gold			Solder	Unshrouded	-55 °C	125 °C	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Push-Pull	Surface Mount Right Angle	All	Pick and Place	0.157 in	4 mm	16	0.079 in	2 mm
Samtec Inc. MMT-108-02-F-DH-A-K-TR	Black	Tin	Male Pin	UL94 V-0	2	Board to Board Cable	Square	Header		0.079 in	2 mm	4.45 mm	0.175 in	3 A	3 µin	0.076 µm	Gold			Solder	Unshrouded	-55 °C	125 °C	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Push-Pull	Surface Mount Right Angle	All	Board Guide Pick and Place	0.157 in	4 mm	16	0.079 in	2 mm
Samtec Inc. MMT-108-01-SM-DH-P-TR	Black	Tin	Male Pin	UL94 V-0	2	Board to Board Cable	Square	Header		0.079 in	2 mm	3.2 mm	0.126 "	3 A	30 Áin	0.76 Ám	Gold			Solder	Unshrouded	-55 °C	125 °C	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Push-Pull	Surface Mount Right Angle	All	Pick and Place	0.157 in	4 mm	16	0.079 in	2 mm
Samtec Inc. MMT-108-01-T-DH	Black	Tin	Male Pin	UL94 V-0	2	Board to Board Cable	Square	Header		0.079 in	2 mm	3.2 mm	0.126 "	3 A						Solder	Unshrouded	-55 °C	105 ░C	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Push-Pull	Surface Mount Right Angle	All		0.157 in	4 mm	16	0.079 in	2 mm
Samtec Inc. MMT-108-02-F-SH-002	Black	Tin	Male Pin	UL94 V-0	1	Board to Board Cable	Square	Header	8	0.079 in	2 mm	4.45 mm	0.175 in	3 A	3 µin	0.076 µm	Gold	0.079 in	2 mm	Solder	Unshrouded	-55 °C	125 °C	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Push-Pull	Surface Mount Right Angle								7
Samtec Inc. MMT-108-01-T-SH-A-P	Black	Tin	Male Pin	UL94 V-0	1	Board to Board Cable	Square	Header	8	0.079 in	2 mm	3.2 mm	0.126 "	3 A				0.079 in	2 mm	Solder	Unshrouded	-55 °C	105 ░C	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Push-Pull	Surface Mount Right Angle	All	Board Guide Pick and Place
Samtec Inc. MMT-108-02-F-SH-A	Black	Tin	Male Pin	UL94 V-0	1	Board to Board Cable	Square	Header	8	0.079 in	2 mm	4.45 mm	0.175 in	3 A	3 µin	0.076 µm	Gold	0.079 in	2 mm	Solder	Unshrouded	-55 °C	125 °C	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Push-Pull	Surface Mount Right Angle	All	Board Guide
Samtec Inc. MMT-108-02-T-SH-P-TR	Black	Tin	Male Pin	UL94 V-0	1	Board to Board Cable	Square	Header	8	0.079 in	2 mm	4.45 mm	0.175 in	3 A				0.079 in	2 mm	Solder	Unshrouded	-55 °C	105 ░C	Phosphor Bronze	Liquid Crystal Polymer (LCP)	Push-Pull	Surface Mount Right Angle	All	Pick and Place

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	425	$ 5.15

Description

General part information

MMT-108 Series

Connector Header Surface Mount, Right Angle 16 position 0.079" (2.00mm)

Documents

Technical documentation and resources

No documents available
