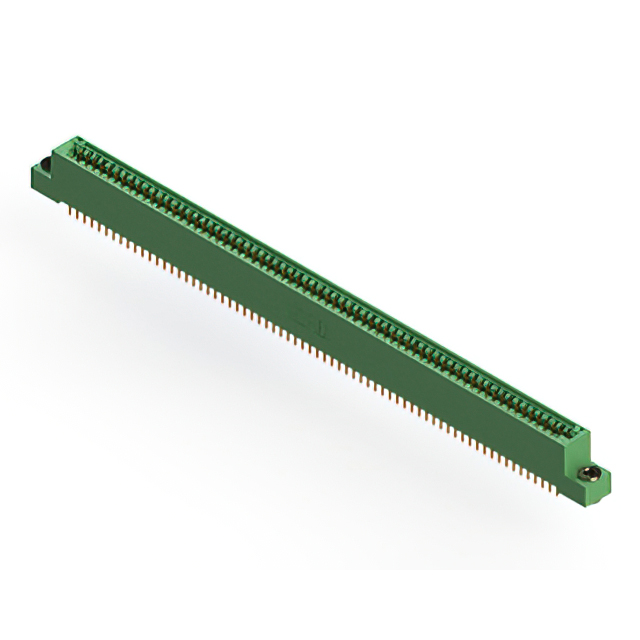

845-136-521-203

Active

EDAC Inc.

2.54MM STRAIGHT 136P -40℃~+125℃ PLUGIN,P=2.54MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

845-136-521-203

Active

EDAC Inc.

2.54MM STRAIGHT 136P -40℃~+125℃ PLUGIN,P=2.54MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	845-136-521-203

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Floating Bobbin, Flush Mount
Flange Feature [diameter]	0.116 in
Flange Feature [diameter]	2.95 mm
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	136
Number of Positions/Bay/Row [custom]	68
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

845-136 Series

...

Part	Number of Positions	Color	Mounting Type	Termination	Number of Positions/Bay/Row [custom]	Material - Insulation	Card Type	Read Out	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Contact Finish	Contact Material	Features	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Flange Feature	Flange Feature	Flange Feature	Gender	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Termination Rows	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 845-136-556-512	136	Green	Board Edge Straddle Mount	Solder	68	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	Dual	Cantilever	10 Áin	0.25 Ám	2.54 mm	0.1 in	Gold	Copper Alloy	Card Extender	2	125 °C	-40 °C	Side Mount Opening Unthreaded	3.25 mm	0.128 in	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	2
EDAC Inc. 845-136-524-508	136	Green	Through Hole	Solder	68	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	Dual	Cantilever	10 Áin	0.25 Ám	2.54 mm	0.1 in	Gold	Copper Alloy		2	125 °C	-40 °C	4-40 Threaded Insert Top Mount Opening			Female	1.37 mm	0.054 "	1.78 mm	0.07 in	2
EDAC Inc. 845-136-521-802	136	Green	Through Hole	Solder	68	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	Dual	Cantilever	10 Áin	0.25 Ám	2.54 mm	0.1 in	Gold	Copper Alloy		2	125 °C	-40 °C		3.25 mm	0.128 in	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	2
EDAC Inc. 845-136-521-203	136	Green	Through Hole	Solder	68	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	Dual	Cantilever	10 Áin	0.25 Ám	2.54 mm	0.1 in	Gold	Copper Alloy		2	125 °C	-40 °C	Floating Bobbin Flush Mount			Female	1.37 mm	0.054 "	1.78 mm	0.07 in	2	0.116 in	2.95 mm
EDAC Inc. 845-136-520-808	136	Green	Through Hole	Solder	68	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	Dual	Cantilever	10 Áin	0.25 Ám	2.54 mm	0.1 in	Gold	Copper Alloy		2	125 °C	-40 °C	4-40 Threaded Insert Top Mount Opening			Female	1.37 mm	0.054 "	1.78 mm	0.07 in	2
EDAC Inc. 845-136-521-502	136	Green	Through Hole	Solder	68	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	Dual	Cantilever	10 Áin	0.25 Ám	2.54 mm	0.1 in	Gold	Copper Alloy		2	125 °C	-40 °C		3.25 mm	0.128 in	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	2
EDAC Inc. 845-136-555-208	136	Green	Board Edge Straddle Mount	Solder	68	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	Dual	Cantilever	10 Áin	0.25 Ám	2.54 mm	0.1 in	Gold	Copper Alloy	Card Extender	2	125 °C	-40 °C	4-40 Flush Mount Threaded Insert Top Opening			Female	1.37 mm	0.054 "	1.78 mm	0.07 in	2
EDAC Inc. 845-136-540-508	136	Green	Through Hole	Wire Wrap	68	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	Dual	Cantilever	10 Áin	0.25 Ám	2.54 mm	0.1 in	Gold	Copper Alloy		2	125 °C	-40 °C	4-40 Threaded Insert Top Mount Opening			Female	1.37 mm	0.054 "	1.78 mm	0.07 in	2
EDAC Inc. 845-136-520-204	136	Green	Through Hole	Solder	68	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	Dual	Cantilever	10 Áin	0.25 Ám	2.54 mm	0.1 in	Gold	Copper Alloy		2	125 °C	-40 °C	Flush Mount Top Opening Unthreaded			Female	1.37 mm	0.054 "	1.78 mm	0.07 in	2	0.156 in	3.96 mm
EDAC Inc. 845-136-524-204	136	Green	Through Hole	Solder	68	Diallyl Phthalate (DAP)	Non Specified - Dual Edge	Dual	Cantilever	10 Áin	0.25 Ám	2.54 mm	0.1 in	Gold	Copper Alloy		2	125 °C	-40 °C	Flush Mount Top Opening Unthreaded			Female	1.37 mm	0.054 "	1.78 mm	0.07 in	2	0.156 in	3.96 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 127.46
LCSC	Piece	1	$ 57.00
		200	$ 22.06
		500	$ 21.28
		1000	$ 20.90

Description

General part information

845-136 Series

136 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
