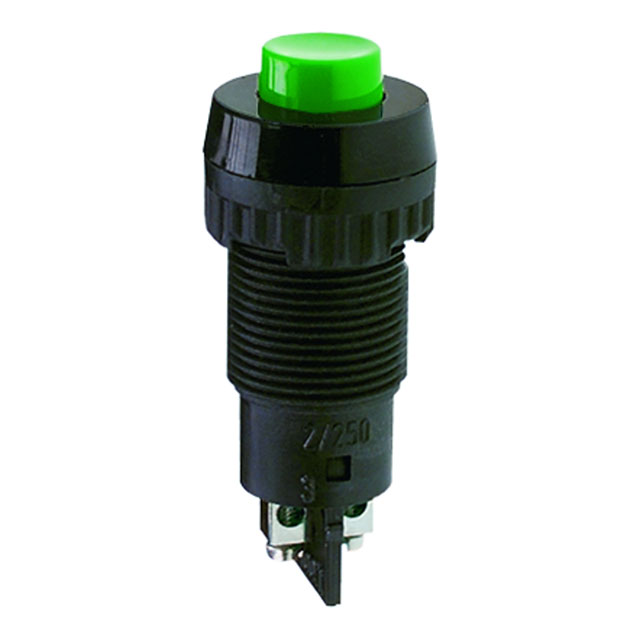

1.10.102.001/0205

Active

RAFI USA

SWITCH PUSH SPST-NO 2A 250V

Search across all available documentation for this part.

Active

RAFI USA

SWITCH PUSH SPST-NO 2A 250V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1.10.102.001/0205	1.10102 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Round, Button	Round, Button
Circuit	SPST-NO	SPST-NO, SPST-NC
Color - Actuator/Cap	White	Red, White
Current Rating (Amps)	2 A	2 A
Electrical Life	150000 Cycles	150000 Cycles
Ingress Protection	IP40	IP40
Mechanical Life	150000 Cycles	150000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	16.2 mm	16.2 mm
Switch Function	Off-Mom	Off-Mom, On-Mom
Termination Style	Screw Terminal	Screw Terminal
Type	Standard	Standard
Voltage Rating - AC	250 V	250 V

SWITCH PUSH SPST-NO 2A 250V

Part	Circuit	Ingress Protection	Current Rating (Amps)	Electrical Life	Mechanical Life	Type	Actuator Marking	Switch Function	Voltage Rating - AC	Termination Style	Actuator Type	Mounting Type	Color - Actuator/Cap	Operating Temperature [Min]	Operating Temperature [Max]	Panel Cutout Dimensions [diameter]
RAFI USA 1.10.102.001/0301	SPST-NO	IP40	2 A	150000 Cycles	150000 Cycles	Standard	No Marking	Off-Mom	250 V	Screw Terminal	Button, Round	Panel Mount, Front	Red	-25 °C	85 °C	16.2 mm
RAFI USA 1.10.102.011/0301	SPST-NC	IP40	2 A	150000 Cycles	150000 Cycles	Standard	No Marking	On-Mom	250 V	Screw Terminal	Button, Round	Panel Mount, Front	Red	-25 °C	85 °C	16.2 mm
RAFI USA 1.10.102.001/0205	SPST-NO	IP40	2 A	150000 Cycles	150000 Cycles	Standard	No Marking	Off-Mom	250 V	Screw Terminal	Button, Round	Panel Mount, Front	White	-25 °C	85 °C	16.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 10.25

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Front
