RJHSE-3381
ActiveAmphenol ICC (Commercial Products)

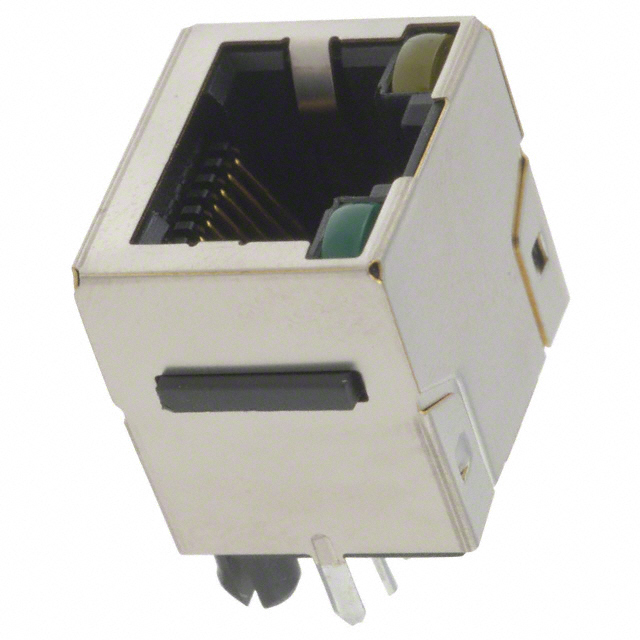

CONN MOD JACK 8P8C VERT SHIELDED
Deep-Dive with AI
Search across all available documentation for this part.
RJHSE-3381
ActiveAmphenol ICC (Commercial Products)
CONN MOD JACK 8P8C VERT SHIELDED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RJHSE-3381 |
|---|---|
| Connector Type | Jack |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Phosphor Bronze |
| Features | Board Lock, Panel Stops |
| Housing Material | Thermoplastic |
| LED Color | Yellow - Green |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | Vertical |
| Shielding | Shielded |
| Tab Direction | User Selectable |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.85 | |
| 10 | $ 2.59 | |||
| 25 | $ 2.45 | |||
| 40 | $ 2.39 | |||
| 110 | $ 2.28 | |||
| 330 | $ 2.00 | |||
| 440 | $ 1.94 | |||
| 990 | $ 1.65 | |||
| 2420 | $ 1.54 | |||
Description
General part information
RJHSE338 Series
Jack Modular Connector 8p8c (RJ45, Ethernet) Vertical Shielded
