DSPIC30F6012AT-30I/PF
ActiveMicrochip Technology

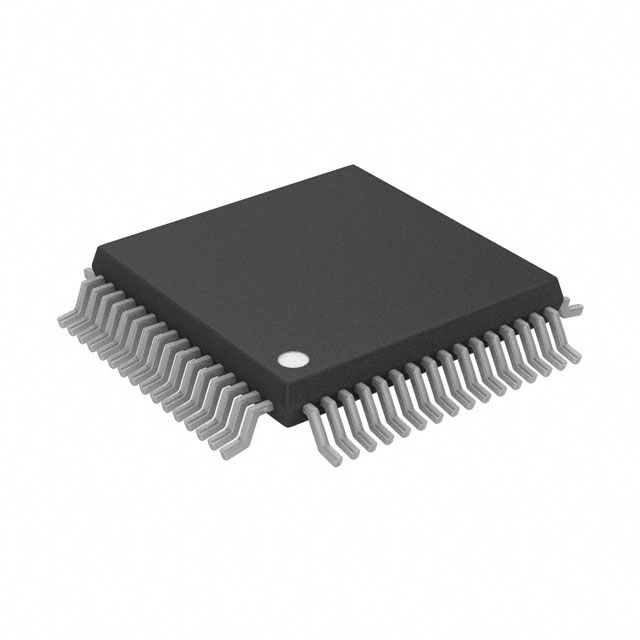

IC MCU 16BIT 144KB FLASH 64TQFP
Deep-Dive with AI
Search across all available documentation for this part.
DSPIC30F6012AT-30I/PF
ActiveMicrochip Technology
IC MCU 16BIT 144KB FLASH 64TQFP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DSPIC30F6012AT-30I/PF | DSPIC30F6012 Series |
|---|---|---|
| Connectivity [custom] | I2C, CANbus, UART/USART, SPI | I2C, CANbus, UART/USART, SPI |
| Core Processor | dsPIC | dsPIC |
| Core Size | 16-Bit | 16-Bit |
| Data Converters | 12 b, 16 | 12 - 16 b |
| EEPROM Size | 4 K | 4 K |
| Mounting Type | Surface Mount | Surface Mount |
| Number of I/O | 52 I/O | 52 I/O |
| Operating Temperature [Max] | 85 °C | 85 - 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Oscillator Type | Internal | Internal |
| Package / Case | 64-TQFP | 64-TQFP |
| Peripherals | Brown-out Detect/Reset, I2S, WDT, AC'97, LVD, POR, PWM | Brown-out Detect/Reset, I2S, WDT, AC'97, LVD, POR, PWM |
| Program Memory Size | 144 KB | 144 KB |
| Program Memory Type | FLASH | FLASH |
| RAM Size | 8K x 8 | 8K x 8 |
| Speed | 30 MIPs | 20 - 30 MIPs |
| Supplier Device Package | 64-TQFP (14x14) | 64-TQFP (10x10), 64-TQFP (14x14) |
| Voltage - Supply (Vcc/Vdd) [Max] | 5.5 V | 5.5 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 2.5 V | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
DSPIC30F6012 Series
16-BIT, FLASH, 30 MHZ, RISC MICROCONTROLLER, PQFP64, 10 X 10 MM, 1 MM HEIGHT, PLASTIC, MS-026, TQFP-64
| Part | Data Converters | Operating Temperature [Max] | Operating Temperature [Min] | Oscillator Type | Package / Case | Program Memory Size | Mounting Type | Program Memory Type | Core Processor | Peripherals | EEPROM Size | Speed | Supplier Device Package | Number of I/O | RAM Size | Voltage - Supply (Vcc/Vdd) [Min] | Voltage - Supply (Vcc/Vdd) [Max] | Connectivity [custom] | Core Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology DSPIC30F6012AT-30I/PT | 12 b, 16 | 85 °C | -40 °C | Internal | 64-TQFP | 144 KB | Surface Mount | FLASH | dsPIC | AC'97, Brown-out Detect/Reset, I2S, LVD, POR, PWM, WDT | 4 K | 30 MIPs | 64-TQFP (10x10) | 52 I/O | 8K x 8 | 2.5 V | 5.5 V | CANbus, I2C, SPI, UART/USART | 16-Bit |
Microchip Technology DSPIC30F6012-20E/PF | 12 b, 16 | 125 °C | -40 °C | Internal | 64-TQFP | 144 KB | Surface Mount | FLASH | dsPIC | AC'97, Brown-out Detect/Reset, I2S, LVD, POR, PWM, WDT | 4 K | 20 MIPS | 64-TQFP (14x14) | 52 I/O | 8K x 8 | 2.5 V | 5.5 V | CANbus, I2C, SPI, UART/USART | 16-Bit |
Microchip Technology DSPIC30F6012A-20E/PT | 12 b, 16 | 125 °C | -40 °C | Internal | 64-TQFP | 144 KB | Surface Mount | FLASH | dsPIC | AC'97, Brown-out Detect/Reset, I2S, LVD, POR, PWM, WDT | 4 K | 20 MIPS | 64-TQFP (10x10) | 52 I/O | 8K x 8 | 2.5 V | 5.5 V | CANbus, I2C, SPI, UART/USART | 16-Bit |
Microchip Technology DSPIC30F6012-30I/PF | 12 b, 16 | 85 °C | -40 °C | Internal | 64-TQFP | 144 KB | Surface Mount | FLASH | dsPIC | AC'97, Brown-out Detect/Reset, I2S, LVD, POR, PWM, WDT | 4 K | 30 MIPs | 64-TQFP (14x14) | 52 I/O | 8K x 8 | 2.5 V | 5.5 V | CANbus, I2C, SPI, UART/USART | 16-Bit |
Microchip Technology DSPIC30F6012T-30I/PF | 12 b, 16 | 85 °C | -40 °C | Internal | 64-TQFP | 144 KB | Surface Mount | FLASH | dsPIC | AC'97, Brown-out Detect/Reset, I2S, LVD, POR, PWM, WDT | 4 K | 30 MIPs | 64-TQFP (14x14) | 52 I/O | 8K x 8 | 2.5 V | 5.5 V | CANbus, I2C, SPI, UART/USART | 16-Bit |
Microchip Technology DSPIC30F6012A-20I/PT | 12 b, 16 | 85 °C | -40 °C | Internal | 64-TQFP | 144 KB | Surface Mount | FLASH | dsPIC | AC'97, Brown-out Detect/Reset, I2S, LVD, POR, PWM, WDT | 4 K | 20 MIPS | 64-TQFP (10x10) | 52 I/O | 8K x 8 | 2.5 V | 5.5 V | CANbus, I2C, SPI, UART/USART | 16-Bit |
Microchip Technology DSPIC30F6012-20I/PF | 12 b, 16 | 85 °C | -40 °C | Internal | 64-TQFP | 144 KB | Surface Mount | FLASH | dsPIC | AC'97, Brown-out Detect/Reset, I2S, LVD, POR, PWM, WDT | 4 K | 20 MIPS | 64-TQFP (14x14) | 52 I/O | 8K x 8 | 2.5 V | 5.5 V | CANbus, I2C, SPI, UART/USART | 16-Bit |
Microchip Technology DSPIC30F6012AT-30I/PF | 12 b, 16 | 85 °C | -40 °C | Internal | 64-TQFP | 144 KB | Surface Mount | FLASH | dsPIC | AC'97, Brown-out Detect/Reset, I2S, LVD, POR, PWM, WDT | 4 K | 30 MIPs | 64-TQFP (14x14) | 52 I/O | 8K x 8 | 2.5 V | 5.5 V | CANbus, I2C, SPI, UART/USART | 16-Bit |
Microchip Technology DSPIC30F6012A-30I/PT | 12 b, 16 | 85 °C | -40 °C | Internal | 64-TQFP | 144 KB | Surface Mount | FLASH | dsPIC | AC'97, Brown-out Detect/Reset, I2S, LVD, POR, PWM, WDT | 4 K | 30 MIPs | 64-TQFP (10x10) | 52 I/O | 8K x 8 | 2.5 V | 5.5 V | CANbus, I2C, SPI, UART/USART | 16-Bit |
Microchip Technology DSPIC30F6012A-20E/PF | 12 b, 16 | 125 °C | -40 °C | Internal | 64-TQFP | 144 KB | Surface Mount | FLASH | dsPIC | AC'97, Brown-out Detect/Reset, I2S, LVD, POR, PWM, WDT | 4 K | 20 MIPS | 64-TQFP (14x14) | 52 I/O | 8K x 8 | 2.5 V | 5.5 V | CANbus, I2C, SPI, UART/USART | 16-Bit |
Microchip Technology DSPIC30F6012AT-20E/PT | 12 b, 16 | 125 °C | -40 °C | Internal | 64-TQFP | 144 KB | Surface Mount | FLASH | dsPIC | AC'97, Brown-out Detect/Reset, I2S, LVD, POR, PWM, WDT | 4 K | 20 MIPS | 64-TQFP (10x10) | 52 I/O | 8K x 8 | 2.5 V | 5.5 V | CANbus, I2C, SPI, UART/USART | 16-Bit |
Microchip Technology DSPIC30F6012T-20I/PF | 12 b, 16 | 85 °C | -40 °C | Internal | 64-TQFP | 144 KB | Surface Mount | FLASH | dsPIC | AC'97, Brown-out Detect/Reset, I2S, LVD, POR, PWM, WDT | 4 K | 20 MIPS | 64-TQFP (14x14) | 52 I/O | 8K x 8 | 2.5 V | 5.5 V | CANbus, I2C, SPI, UART/USART | 16-Bit |
Microchip Technology DSPIC30F6012AT-20E/PF | 12 b, 16 | 125 °C | -40 °C | Internal | 64-TQFP | 144 KB | Surface Mount | FLASH | dsPIC | AC'97, Brown-out Detect/Reset, I2S, LVD, POR, PWM, WDT | 4 K | 20 MIPS | 64-TQFP (14x14) | 52 I/O | 8K x 8 | 2.5 V | 5.5 V | CANbus, I2C, SPI, UART/USART | 16-Bit |
Microchip Technology DSPIC30F6012A-30I/PF | 12 b, 16 | 85 °C | -40 °C | Internal | 64-TQFP | 144 KB | Surface Mount | FLASH | dsPIC | AC'97, Brown-out Detect/Reset, I2S, LVD, POR, PWM, WDT | 4 K | 30 MIPs | 64-TQFP (14x14) | 52 I/O | 8K x 8 | 2.5 V | 5.5 V | CANbus, I2C, SPI, UART/USART | 16-Bit |
Microchip Technology DSPIC30F6012AT-20I/PT | 12 b, 16 | 85 °C | -40 °C | Internal | 64-TQFP | 144 KB | Surface Mount | FLASH | dsPIC | AC'97, Brown-out Detect/Reset, I2S, LVD, POR, PWM, WDT | 4 K | 20 MIPS | 64-TQFP (10x10) | 52 I/O | 8K x 8 | 2.5 V | 5.5 V | CANbus, I2C, SPI, UART/USART | 16-Bit |
Description
General part information
DSPIC30F6012 Series
dsPIC30F General Purpose 16-bit Digital Signal Controller.
