355-070-555-578
ActiveEDAC Inc.

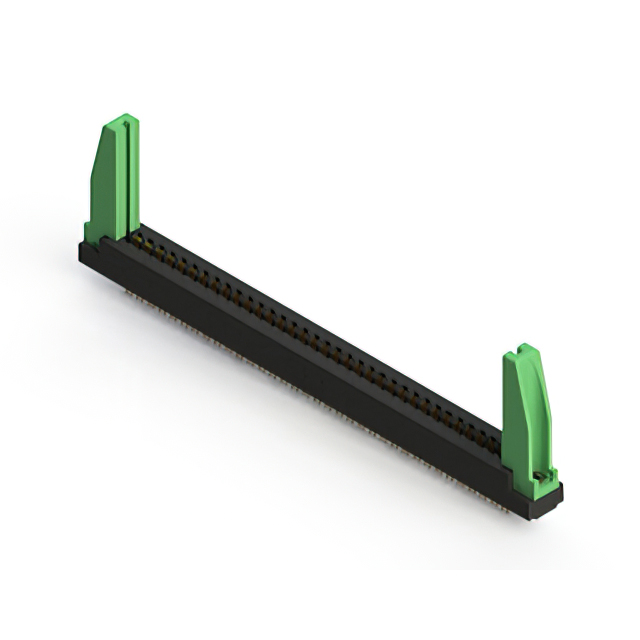

CONN EDGE DUAL FMALE 70POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
355-070-555-578
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 70POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 355-070-555-578 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 70 |
| Number of Positions/Bay/Row [custom] | 35 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
355-070 Series
| Part | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Material - Insulation | Mounting Type | Color | Contact Finish | Number of Positions/Bay/Row [custom] | Number of Rows | Number of Positions | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Pitch [x] | Pitch [x] | Card Type | Termination Rows | Flange Feature | Gender | Termination | Contact Material | Read Out | Operating Temperature [Min] | Operating Temperature [Max] | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 10 Áin | 0.25 Ám | Semi Bellows | Polyester Thermoplastic | Panel Mount Through Hole | Black | Gold | 35 | 2 | 70 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Non Specified - Dual Edge | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Female | Solder | Copper Alloy | Dual | -40 °C | 105 ░C | |||
EDAC Inc. | 10 Áin | 0.25 Ám | Semi Bellows | Polyester Thermoplastic | Board Edge Straddle Mount | Black | Gold | 35 | 2 | 70 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Non Specified - Dual Edge | 2 | Female | Solder | Copper Alloy | Dual | -40 °C | 105 ░C | Card Extender | |||
EDAC Inc. | 10 Áin | 0.25 Ám | Semi Bellows | Polyester Thermoplastic | Black | Gold | 35 | 2 | 70 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Non Specified - Dual Edge | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Female | Solder Eyelet(s) | Copper Alloy | Dual | -40 °C | 105 ░C | ||||
EDAC Inc. | 10 Áin | 0.25 Ám | Semi Bellows | Polyester Thermoplastic | Board Edge Straddle Mount | Black | Gold | 35 | 2 | 70 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Non Specified - Dual Edge | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Female | Solder | Copper Alloy | Dual | -40 °C | 105 ░C | |||
EDAC Inc. | 10 Áin | 0.25 Ám | Semi Bellows | Polyester Thermoplastic | Panel Mount Through Hole | Black | Gold | 35 | 2 | 70 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Non Specified - Dual Edge | 2 | Flush Mount M3 Threaded Insert Top Opening | Female | Solder | Copper Alloy | Dual | -40 °C | 105 ░C | |||
EDAC Inc. | 10 Áin | 0.25 Ám | Semi Bellows | Polyester Thermoplastic | Board Edge Straddle Mount | Black | Gold | 35 | 2 | 70 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Non Specified - Dual Edge | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Female | Solder | Copper Alloy | Dual | -40 °C | 105 ░C | |||
EDAC Inc. | 10 Áin | 0.25 Ám | Semi Bellows | Polyester Thermoplastic | Board Edge Straddle Mount | Black | Gold | 35 | 2 | 70 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Non Specified - Dual Edge | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Female | Solder | Copper Alloy | Dual | -40 °C | 105 ░C | Card Extender | ||
EDAC Inc. | 10 Áin | 0.25 Ám | Semi Bellows | Polyester Thermoplastic | Panel Mount Through Hole | Black | Gold | 35 | 2 | 70 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Non Specified - Dual Edge | 2 | Flush Mount Top Opening Unthreaded | Female | Solder | Copper Alloy | Dual | -40 °C | 105 ░C | 3.96 mm | 0.156 in | |
EDAC Inc. | 10 Áin | 0.25 Ám | Semi Bellows | Polyester Thermoplastic | Board Edge Straddle Mount | Black | Gold | 35 | 2 | 70 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Non Specified - Dual Edge | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Female | Solder | Copper Alloy | Dual | -40 °C | 105 ░C | Card Extender | ||
EDAC Inc. | 10 Áin | 0.25 Ám | Semi Bellows | Polyester Thermoplastic | Black | Gold | 35 | 2 | 70 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Non Specified - Dual Edge | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Female | Solder Eyelet(s) | Copper Alloy | Dual | -40 °C | 105 ░C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 16.95 | |
Description
General part information
355-070 Series
70 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
