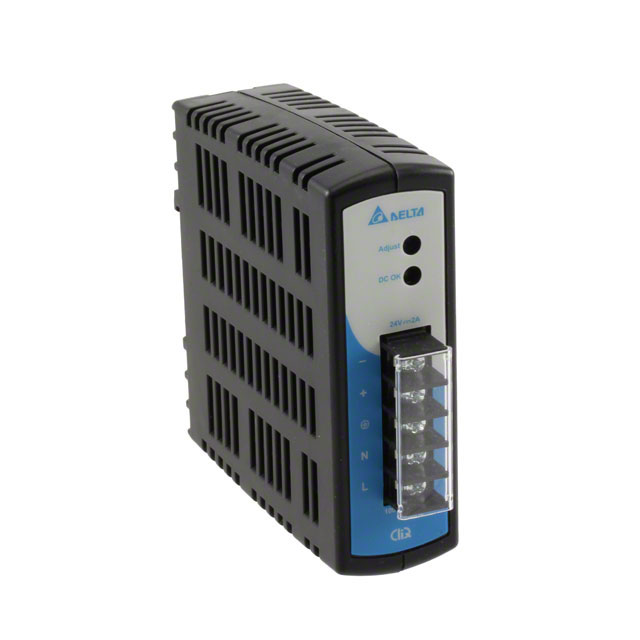

DRP-24V48W1AZ

Obsolete

Delta Electronics

AC/DC DIN RAIL SUPPLY 24V 48W

Search across all available documentation for this part.

Obsolete

Delta Electronics

AC/DC DIN RAIL SUPPLY 24V 48W

Technical Specifications

Parameters and characteristics for this part

Specification	DRP-24V48W1AZ

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	ITE (Commercial)
Approval Agency	EN, CE, CB Scheme, EAC, CSA, SIQ, UL
Current - Output (Max) [Max]	2 A
Efficiency	85 %
Features	Universal Input, Adjustable Output, Load Sharing
Input Type	AC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	48 W
Size / Dimension [x]	3.96 in
Size / Dimension [x]	100.6 mm
Size / Dimension [y]	32 mm
Size / Dimension [y]	1.26 in
Size / Dimension [z]	3.94 in
Size / Dimension [z]	100 mm
Standard Number	107.1-01, 61000-3-3, 60950-1, 50581, 55011, 508, 61000-6-2, 61000-3-2, 55032, 55024
Voltage - Isolation	4000 V
Voltage - Output 1	24 V

Part	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Features	Number of Outputs	Voltage - Output 1	Voltage - Isolation	Input Type	Standard Number	Current - Output (Max) [Max]	Power (Watts)	Approval Agency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Efficiency
Delta Electronics DRP-24V48W1AZ	ITE (Commercial)	-20 °C	70 °C	Adjustable Output Load Sharing Universal Input	1	24 V	4000 V	AC	107.1-01 50581 508 55011 55024 55032 60950-1 61000-3-2 61000-3-3 61000-6-2	2 A	48 W	CB Scheme CE CSA EAC EN SIQ UL	3.94 in	32 mm	1.26 in	3.96 in	100.6 mm	100 mm	85 VAC	264 VAC	85 %
