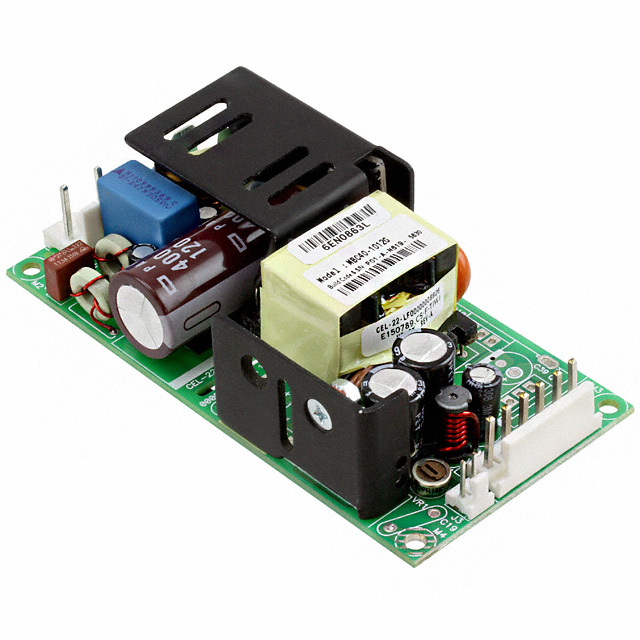

MBC40-1012G

Active

Bel Power Solutions

AC/DC CONVERTER 12V 40W

Deep-Dive with AI

Search across all available documentation for this part.

MBC40-1012G

Active

Bel Power Solutions

AC/DC CONVERTER 12V 40W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MBC40 Series

Open Frame AC DC Converters 1 Output 12V 90 ~ 264 VAC Input

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MBC40-1012G	MBC40 Series

Applications	Medical	Medical
Current - Output 1	3.5 A	1.7 - 830 A
Current - Output 2	-	1 - 3 A
Current - Output 3	-	500 mA
Efficiency	85 %	85 %
Features	Universal Input, Standby Output, Adjustable Output, Remote Sense	Universal Input, Standby Output, Adjustable Output, Remote Sense
Minimum Load Required	False	False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1 - 3
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 °C	-20 °C
Power (Watts)	40 W	40 W
Size / Dimension [x]	101.6 mm	101.6 mm
Size / Dimension [x]	4 in	4 in
Size / Dimension [y]	2 in	2 in
Size / Dimension [y]	50.8 mm	50.8 mm
Size / Dimension [z]	30.5 mm	30.5 mm
Size / Dimension [z]	1.2 "	1.2 "
Type	Open Frame	Open Frame
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Isolation	4.242 kV	4.242 kV
Voltage - Output 1	12 V	3.3 - 48 V
Voltage - Output 2	-	5.2 - 24 V
Voltage - Output 3	-	-14.8 - -12.8 V

MBC40 Series

AC/DC POWER SUPPLY SINGLE-OUT 15V 2.7A 40W MEDICAL

Part	Type	Current - Output 1	Voltage - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Power (Watts)	Number of Outputs	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Efficiency	Features	Mounting Type	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 2	Current - Output 3	Voltage - Output 3	Current - Output 2
Bel Power Solutions MBC40-1015G	Open Frame	2.7 A	15 V	90 VAC	264 VAC	Medical	40 W	1	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "	85 %	Adjustable Output, Remote Sense, Standby Output, Universal Input	Chassis Mount	4.242 kV	-20 °C	70 °C
Bel Power Solutions MBC40-1048G	Open Frame	830 mA	48 V	90 VAC	264 VAC	Medical	40 W	1	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "	85 %	Adjustable Output, Remote Sense, Standby Output, Universal Input	Chassis Mount	4.242 kV	-20 °C	70 °C
Bel Power Solutions MBC40-3003G-2	Open Frame	6 A	3.3 V	90 VAC	264 VAC	Medical	40 W	3	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "	85 %	Adjustable Output, Remote Sense, Standby Output, Universal Input	Chassis Mount	4.242 kV	-20 °C	70 °C	5.2 V	500 mA	-12.8 V	3 A
Bel Power Solutions MBC40-1015G-2	Open Frame	2.7 A	15 V	90 VAC	264 VAC	Medical	40 W	1	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "	85 %	Adjustable Output, Remote Sense, Standby Output, Universal Input	Chassis Mount	4.242 kV	-20 °C	70 °C
Bel Power Solutions MBC40-1005G	Open Frame	8 A	5.1 V	90 VAC	264 VAC	Medical	40 W	1	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "	85 %	Adjustable Output, Remote Sense, Standby Output, Universal Input	Chassis Mount	4.242 kV	-20 °C	70 °C
Bel Power Solutions MBC40-3002G-2	Open Frame	6 A	5.2 V	90 VAC	264 VAC	Medical	40 W	3	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "	85 %	Adjustable Output, Remote Sense, Standby Output, Universal Input	Chassis Mount	4.242 kV	-20 °C	70 °C	14.6 V	500 mA	-14.8 V	1.5 A
Bel Power Solutions MBC40-3000G	Open Frame	6 A	5.2 V	90 VAC	264 VAC	Medical	40 W	3	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "	85 %	Adjustable Output, Remote Sense, Standby Output, Universal Input	Chassis Mount	4.242 kV	-20 °C	70 °C	12.5 V	500 mA	-12.8 V	1 A
Bel Power Solutions MBC40-1012G	Open Frame	3.5 A	12 V	90 VAC	264 VAC	Medical	40 W	1	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "	85 %	Adjustable Output, Remote Sense, Standby Output, Universal Input	Chassis Mount	4.242 kV	-20 °C	70 °C
Bel Power Solutions MBC40-1024G-2	Open Frame	1.7 A	24 V	90 VAC	264 VAC	Medical	40 W	1	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "	85 %	Adjustable Output, Remote Sense, Standby Output, Universal Input	Chassis Mount	4.242 kV	-20 °C	70 °C
Bel Power Solutions MBC40-3001G-2	Open Frame	6 A	5.2 V	90 VAC	264 VAC	Medical	40 W	3	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "	85 %	Adjustable Output, Remote Sense, Standby Output, Universal Input	Chassis Mount	4.242 kV	-20 °C	70 °C	24 V	500 mA	-12.8 V	1 A
