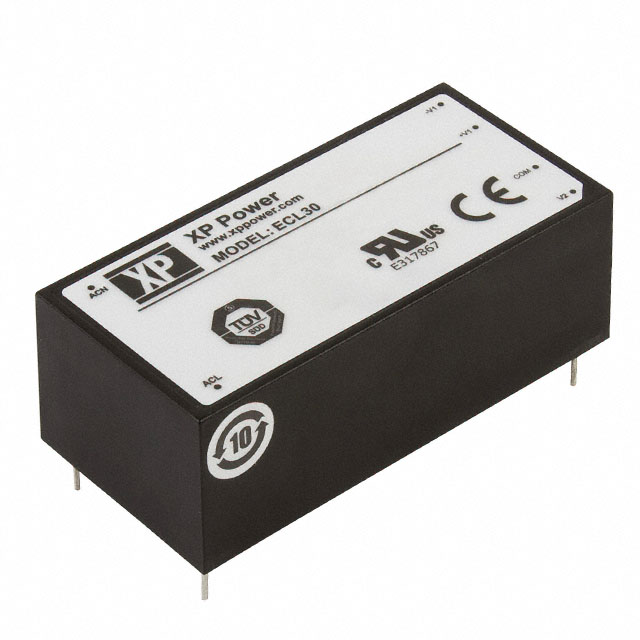

ECL30UT03-E

Active

XP POWER

AC/DC CONVERTER 5V +/-15V 30W

Search across all available documentation for this part.

Active

XP POWER

AC/DC CONVERTER 5V +/-15V 30W

Technical Specifications

Parameters and characteristics for this part

Part	Power (Watts)	Applications	Voltage - Output 3	Package / Case	Weight	Weight	Standard Number	Mounting Type	Features	Number of Outputs	Voltage - Output 1	Type	Voltage - Output 2	Efficiency	Load Regulation	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max)	Line Regulation	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Approval Agency
XP POWER ECL30UT03-E	30 W	ITE (Commercial)	-15 V	7-DIP Module	155.13 g	0.342 lb	62368-1	Through Hole	Universal Input	3	5 V	Enclosed	15 V	81 %	1 %	-20 °C	70 °C	3 A 500 mA	0.5 %	1.5 in	3.1 in	1.1 in	27.9 mm	78.7 mm	38.1 mm	CSA cUL EN IEC UL
XP POWER ECL30UT03-P	30 W	ITE (Commercial)	-15 V	7-DIP Module	59.87 g	0.132 lb	62368-1	Through Hole	Universal Input	3	5 V	Open Frame	15 V	81 %	1 %	-20 °C	70 °C	3 A 500 mA	0.5 %	1.36 "	2.96 in	1.05 "	26.7 mm	75.2 mm	34.6 mm	CSA cUL EN IEC UL

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 3 Output 5V 15V -15V 3A, 500mA, 500mA 85 ~ 264 VAC Input
