1116503-2
ActiveTE Connectivity AMP Connectors
CONN MOD JACK 8P8C R/A SHIELDED
Deep-Dive with AI
Search across all available documentation for this part.
1116503-2
ActiveTE Connectivity AMP Connectors
CONN MOD JACK 8P8C R/A SHIELDED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1116503-2 |
|---|---|
| Connector Type | Jack |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Phosphor Bronze |
| Features | Board Guide |
| Housing Material | Polyamide (PA), Nylon |
| LED Color | Does Not Contain LED |
| Mounting Type | Through Hole, Cutout, Board Edge |
| Number of Ports | 1 |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | 90 ° |
| Ratings | Cat5 |
| Shielding | Shielded, EMI Finger |
| Tab Direction | Down |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 5.74 | |
| 10 | $ 5.03 | |||
| 25 | $ 4.90 | |||
| 66 | $ 4.79 | |||
| 132 | $ 4.50 | |||
| 264 | $ 4.48 | |||
| 990 | $ 4.19 | |||
| 2442 | $ 3.74 | |||
1116503 Series
CONN MOD JACK 8P8C R/A SHIELDED
| Part | Tab Direction | Contact Material | Number of Positions/Contacts | Contact Finish Thickness | Contact Finish Thickness | Number of Ports | Operating Temperature [Max] | Operating Temperature [Min] | LED Color | Contact Finish | Orientation | Mounting Type | Features | Connector Type | Housing Material | Termination | Shielding | Number of Rows | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1116503-2 | Down | Phosphor Bronze | 8p8c (RJ45, Ethernet) | 50 µin | 1.27 µm | 1 | 85 °C | -40 °C | Does Not Contain LED | Gold | 90 ° | Board Edge, Cutout, Through Hole | Board Guide | Jack | Polyamide (PA), Nylon | Solder | Shielded, EMI Finger | 1 | Cat5 |
Description
General part information
1116503 Series

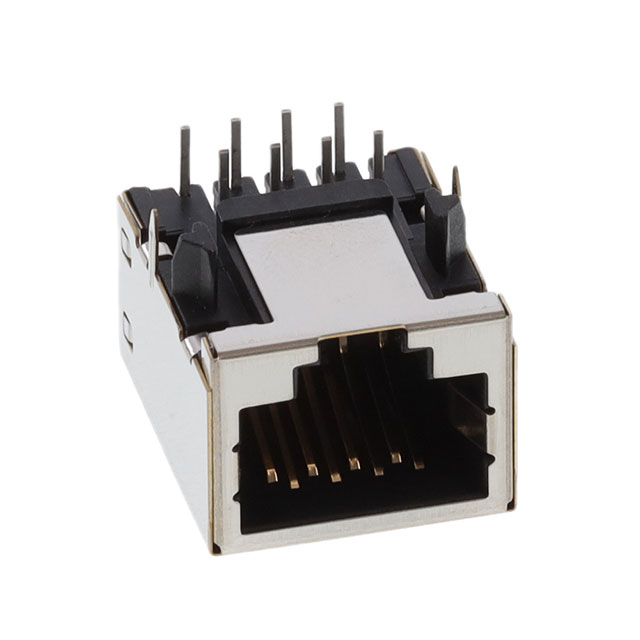

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded, EMI Finger Cat5
