895-050-523-203
ActiveEDAC Inc.

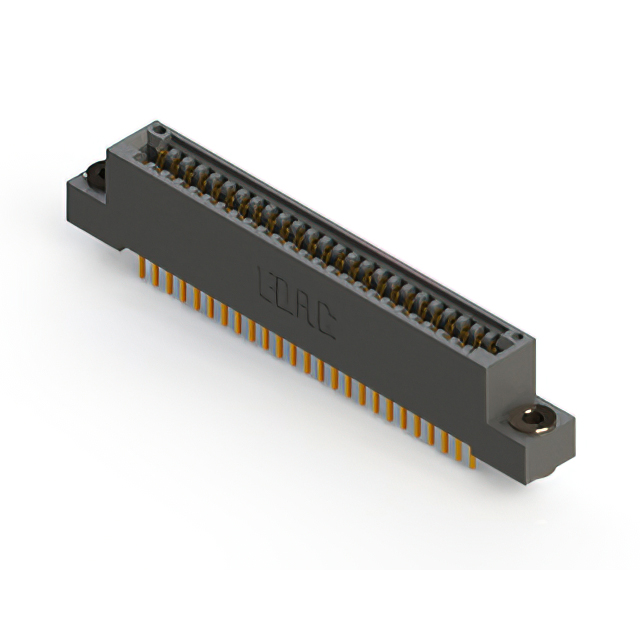

CONN EDGE DUAL FMALE 50POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
895-050-523-203
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 50POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 895-050-523-203 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 50 |
| Number of Positions/Bay/Row [custom] | 25 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
895-050 Series
...
| Part | Contact Material | Termination | Color | Termination Rows | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Number of Positions/Bay/Row [custom] | Contact Finish Thickness | Contact Finish Thickness | Material - Insulation | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Gender | Number of Positions | Read Out | Contact Type | Card Type | Mounting Type | Pitch [x] | Pitch [x] | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Number of Rows | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Copper Alloy | Solder | Black | 2 | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 25 | 10 Áin | 0.25 Ám | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 50 | Dual | Cantilever | Non Specified - Dual Edge | Through Hole | 2.54 mm | 0.1 in | 125 °C | -40 °C | Gold | 2 | ||
EDAC Inc. | Copper Alloy | Solder | Black | 2 | 2.95 mm | 0.116 in | Floating Bobbin Top Mount Opening | 25 | 10 Áin | 0.25 Ám | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 50 | Dual | Cantilever | Non Specified - Dual Edge | Through Hole Right Angle | 2.54 mm | 0.1 in | 125 °C | -40 °C | Gold | 2 | ||
EDAC Inc. | Copper Alloy | Solder | Black | 1 | Side Mount Opening Unthreaded | 50 | 10 Áin | 0.25 Ám | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 50 | Single | Cantilever | Non Specified - Single Edge | Through Hole Right Angle | 2.54 mm | 0.1 in | 125 °C | -40 °C | Gold | 1 | 3.25 mm | 0.128 in | ||
EDAC Inc. | Copper Alloy | Wire Wrap | Black | 1 | 50 | 10 Áin | 0.25 Ám | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 50 | Single | Cantilever | Non Specified - Single Edge | Through Hole | 2.54 mm | 0.1 in | 125 °C | -40 °C | Gold | 1 | 3.25 mm | 0.128 in | |||
EDAC Inc. | Copper Alloy | Solder | Black | 2 | Side Mount Opening Unthreaded | 25 | 10 Áin | 0.25 Ám | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 50 | Dual | Cantilever | Non Specified - Dual Edge | Through Hole | 2.54 mm | 0.1 in | 125 °C | -40 °C | Gold | 2 | 3.25 mm | 0.128 in | ||
EDAC Inc. | Copper Alloy | Wire Wrap | Black | 1 | 3.96 mm | 0.156 in | Top Mount Opening Unthreaded | 50 | 10 Áin | 0.25 Ám | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 50 | Single | Cantilever | Non Specified - Single Edge | Through Hole | 2.54 mm | 0.1 in | 125 °C | -40 °C | Gold | 1 | ||
EDAC Inc. | Copper Alloy | Solder | Black | 2 | 3.25 mm | 0.128 " | Flush Mount Side Opening Unthreaded | 25 | 10 Áin | 0.25 Ám | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 50 | Dual | Cantilever | Non Specified - Dual Edge | Through Hole | 2.54 mm | 0.1 in | 125 °C | -40 °C | Gold | 2 | ||
EDAC Inc. | Copper Alloy | Solder | Black | 1 | 50 | 10 Áin | 0.25 Ám | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 50 | Single | Cantilever | Non Specified - Single Edge | Through Hole | 2.54 mm | 0.1 in | 125 °C | -40 °C | Gold | 1 | |||||
EDAC Inc. | Copper Alloy | Solder | Black | 2 | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | 25 | 10 Áin | 0.25 Ám | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 50 | Dual | Cantilever | Non Specified - Dual Edge | Through Hole | 2.54 mm | 0.1 in | 125 °C | -40 °C | Gold | 2 | ||
EDAC Inc. | Copper Alloy | Solder Eyelet(s) | Black | 2 | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | 25 | 10 Áin | 0.25 Ám | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 50 | Dual | Cantilever | Non Specified - Dual Edge | Through Hole | 2.54 mm | 0.1 in | 125 °C | -40 °C | Gold | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 69.08 | |
Description
General part information
895-050 Series
50 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
