A31CSQ24VDC2

Active

CIT Relay and Switch

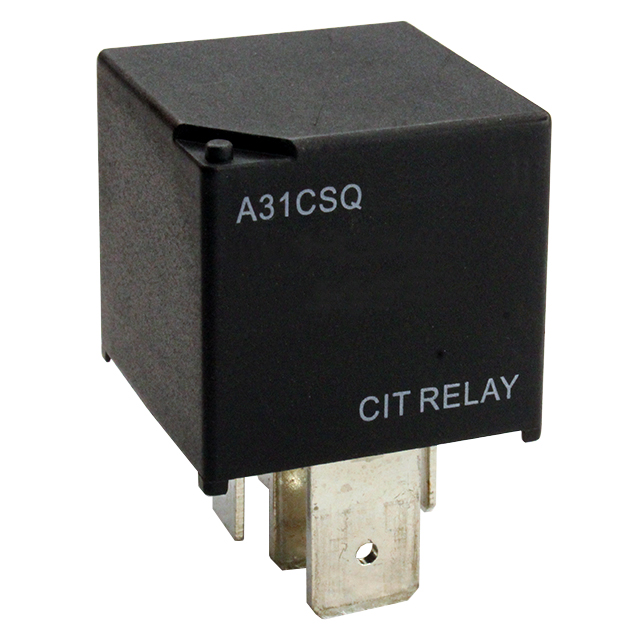

RELAY AUTOMOTIVE SPDT 80A 24V

Search across all available documentation for this part.

Active

CIT Relay and Switch

RELAY AUTOMOTIVE SPDT 80A 24V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A31CSQ24VDC2	A31CSQ Series

Coil Current	75 mA	75 - 150 mA
Coil Power	1.8 W	1.8 W
Coil Resistance	320 Ohms	80 - 320 Ohms
Coil Type	Non Latching	Non Latching
Coil Voltage	24 VDC	12 - 24 VDC
Contact Form	SPDT (1 Form C)	SPDT (1 Form C)
Contact Material	Silver Tin Oxide Indium Oxide (AgSnOInO)	Silver Tin Oxide Indium Oxide (AgSnOInO)
Contact Rating (Current)	80 A	80 A
Features	Sealed - Fully	Resistor, Sealed - Fully, Diode
Mounting Type	Socketable	Socketable
Must Operate Voltage	16.8 VDC	8.4 - 16.8 VDC
Must Release Voltage	2.4 VDC	1.2 - 2.4 VDC
Operate Time	7 ms	7 ms
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Release Time	5 ms	5 ms
Switching Voltage	75 VDC	75 VDC
Termination Style	Quick Connect - Multiple Sizes	Quick Connect - Multiple Sizes

75V@DC 80A 12V ONE CONVERSION: 1C (SPDT-CONVERSION) SOCKETABLE AUTOMOTIVE RELAYS ROHS

Part	Mounting Type	Coil Current	Operating Temperature [Max]	Operating Temperature [Min]	Coil Voltage	Contact Form	Contact Rating (Current)	Features	Termination Style	Must Operate Voltage	Operate Time	Contact Material	Coil Power	Coil Resistance	Release Time	Must Release Voltage	Switching Voltage	Coil Type
CIT Relay and Switch A31CSQ12VDC2R	Socketable	150 mA	125 °C	-40 °C	12 VDC	SPDT (1 Form C)	80 A	Resistor, Sealed - Fully	Quick Connect - Multiple Sizes	8.4 VDC	7 ms	Silver Tin Oxide Indium Oxide (AgSnOInO)	1.8 W	80 Ohms	5 ms	1.2 VDC	75 VDC	Non Latching
CIT Relay and Switch A31CSQ12VDC2	Socketable	150 mA	125 °C	-40 °C	12 VDC	SPDT (1 Form C)	80 A	Sealed - Fully	Quick Connect - Multiple Sizes	8.4 VDC	7 ms	Silver Tin Oxide Indium Oxide (AgSnOInO)	1.8 W	80 Ohms	5 ms	1.2 VDC	75 VDC	Non Latching
CIT Relay and Switch A31CSQ24VDC2R	Socketable	75 mA	125 °C	-40 °C	24 VDC	SPDT (1 Form C)	80 A	Resistor, Sealed - Fully	Quick Connect - Multiple Sizes	16.8 VDC	7 ms	Silver Tin Oxide Indium Oxide (AgSnOInO)	1.8 W	320 Ohms	5 ms	2.4 VDC	75 VDC	Non Latching
CIT Relay and Switch A31CSQ24VDC2D	Socketable	75 mA	125 °C	-40 °C	24 VDC	SPDT (1 Form C)	80 A	Diode, Sealed - Fully	Quick Connect - Multiple Sizes	16.8 VDC	7 ms	Silver Tin Oxide Indium Oxide (AgSnOInO)	1.8 W	320 Ohms	5 ms	2.4 VDC	75 VDC	Non Latching
CIT Relay and Switch A31CSQ24VDC2	Socketable	75 mA	125 °C	-40 °C	24 VDC	SPDT (1 Form C)	80 A	Sealed - Fully	Quick Connect - Multiple Sizes	16.8 VDC	7 ms	Silver Tin Oxide Indium Oxide (AgSnOInO)	1.8 W	320 Ohms	5 ms	2.4 VDC	75 VDC	Non Latching

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY AUTOMOTIVE SPDT 80A 24V
