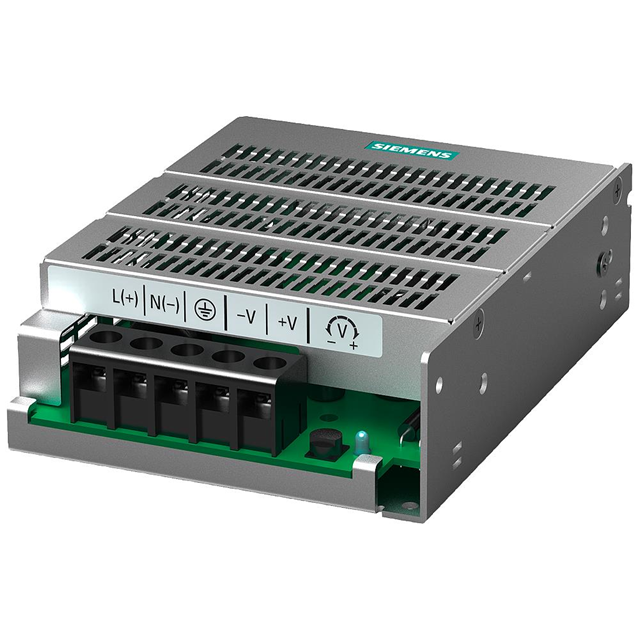

6EP13311LD00

Obsolete

Siemens

AC/DC DIN RAIL SUPPLY 24V 50W

Search across all available documentation for this part.

Obsolete

Siemens

AC/DC DIN RAIL SUPPLY 24V 50W

Technical Specifications

Parameters and characteristics for this part

Specification	6EP13311LD00

AC Voltage - Input [Max]	264 VAC, 240 VAC
AC Voltage - Input [Min]	85 VAC, 100 VAC
Applications	ITE (Commercial), Industrial, Hazardous Locations
Approval Agency	CE, cURus, cUL, CSA, CB, cULus, UL
Current - Output (Max) [Max]	2.1 A
Efficiency	86 %
Features	Adjustable Output, Universal Input, IP20
Input Type	AC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	50 W
Size / Dimension [x]	1.5 in
Size / Dimension [x]	38 mm
Size / Dimension [y]	97 mm
Size / Dimension [y]	3.82 in
Size / Dimension [z]	128 mm
Size / Dimension [z]	5.04 "
Standard Number	60950-1, UL 508
Voltage - Output 1	24 V

Part	Current - Output (Max) [Max]	Approval Agency	Power (Watts)	Voltage - Output 1	Applications	Number of Outputs	Features	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Standard Number	Input Type
Siemens 6EP13311LD00	2.1 A	CB CE CSA cUL cULus cURus UL	50 W	24 V	Hazardous Locations Industrial ITE (Commercial)	1	Adjustable Output IP20 Universal Input	-10 °C	70 °C	86 %	240 VAC 264 VAC	85 VAC 100 VAC	128 mm	1.5 in	97 mm	5.04 "	3.82 in	38 mm	60950-1 UL 508	AC
Siemens 6EP13311LD01

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

AC/DC DIN RAIL SUPPLY 24V 50W
