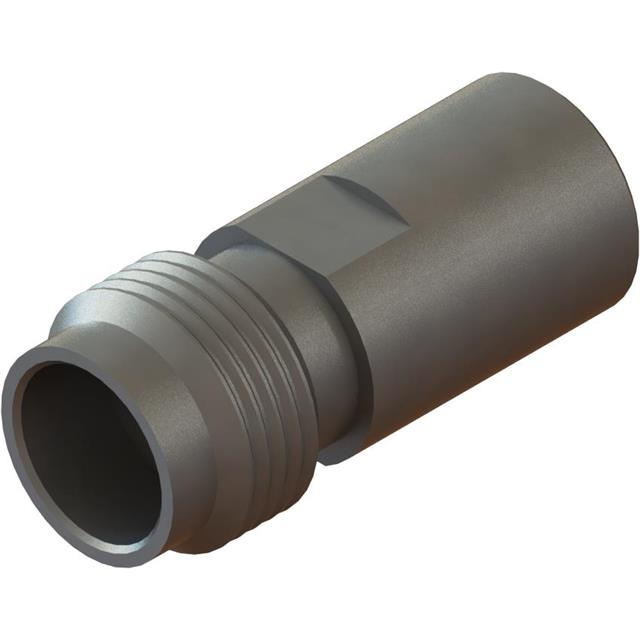

SF8016-6402

Active

Amphenol SV Microwave

CONN TERMINATR JACK 2.4MM 50 OHM

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN TERMINATR JACK 2.4MM 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	SF8016-6402

Body Material	Stainless Steel
Connector Style	OS-50
Connector Style	2.4 mm
Connector Style	APC-2.4
Connector Type	Female Socket, Jack
Contact Finish	Gold
Contact Material	Beryllium Copper
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	50 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging, Cap

Part	Connector Style	Connector Style	Connector Style	Body Material	Mounting Type	Dielectric Material	Connector Type	Impedance	Contact Material	Contact Finish	Frequency - Max [Max]
Amphenol SV Microwave SF8016-6402	OS-50	2.4 mm	APC-2.4	Stainless Steel	Cap Free Hanging	Polytetrafluoroethylene (PTFE)	Female Socket Jack	50 Ohms	Beryllium Copper	Gold	50 GHz
Amphenol SV Microwave SF8016-6404	OS-50	2.4 mm	APC-2.4	Stainless Steel	Cap Free Hanging		Male Pin Plug	50 Ohms	Brass	Gold	50 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	25	$ 203.06

General part information

Terminator Coax Connector Jack, Female Socket 2.4mm (APC-2.4, OS-50) 50 Ohms
