EGUARD0522P
ActiveSMC Diode Solutions

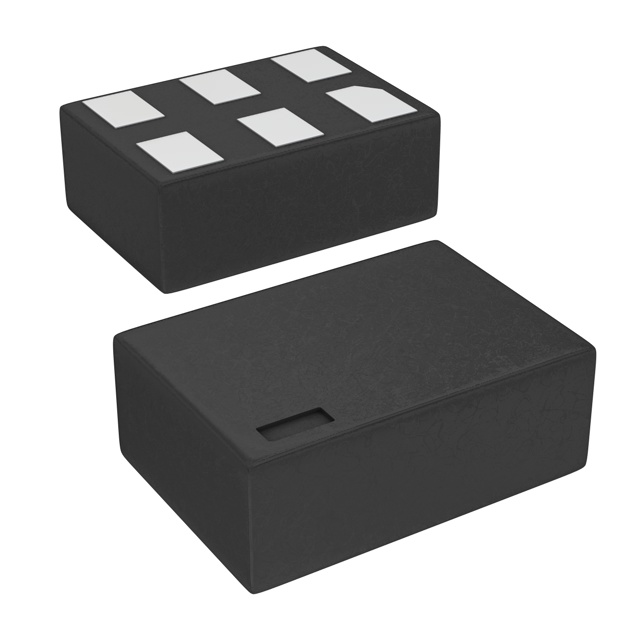

TVS DIODE 5VWM 17VC 6DFNWB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EGUARD0522P
ActiveSMC Diode Solutions
TVS DIODE 5VWM 17VC 6DFNWB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EGUARD0522P |
|---|---|
| Applications | HDMI |
| Capacitance @ Frequency | 0.65 pF |
| Current - Peak Pulse (10/1000µs) | 7 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 6-UFDFN |
| Power - Peak Pulse | 150 W |
| Power Line Protection | False |
| Supplier Device Package | 6-DFNWB |
| Supplier Device Package [x] | 1.45 |
| Supplier Device Package [y] | 1 |
| Type | Steering |
| Unidirectional Channels | 2 |
| Voltage - Breakdown (Min) [Min] | 6 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 17 V |
| Voltage - Reverse Standoff (Typ) | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.53 | |
| 10 | $ 0.45 | |||
| 100 | $ 0.31 | |||
| 500 | $ 0.24 | |||
| 1000 | $ 0.20 | |||
| Digi-Reel® | 1 | $ 0.53 | ||
| 10 | $ 0.45 | |||
| 100 | $ 0.31 | |||
| 500 | $ 0.24 | |||
| 1000 | $ 0.20 | |||
| Tape & Reel (TR) | 3000 | $ 0.18 | ||
| 6000 | $ 0.17 | |||
| 9000 | $ 0.16 | |||
| 30000 | $ 0.15 | |||
Description
General part information
EGUARD0522 Series
17V Clamp 7A (8/20µs) Ipp Tvs Diode Surface Mount 6-DFNWB (1.45x1)
Documents
Technical documentation and resources
