TVSL02V09C005

Active

Eaton - Electronics Division

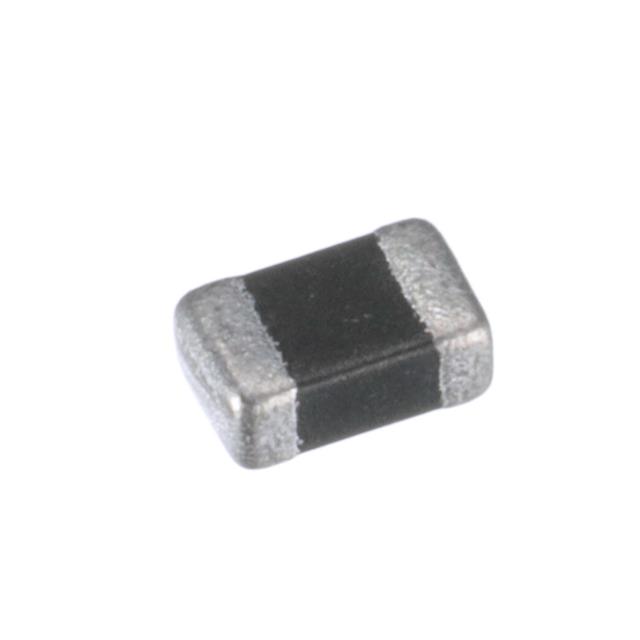

TVS DIODE ESD 9V SMD 0201

Search across all available documentation for this part.

Active

Eaton - Electronics Division

TVS DIODE ESD 9V SMD 0201

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

17.3V (Typ) Clamp 6A (8/20µs) Ipp Tvs Diode Surface Mount 0201

Technical documentation and resources

Specification	TVSL02V09C005	TVSL02 Series

Applications	General Purpose	General Purpose
Bidirectional Channels [custom]	1	1
Capacitance @ Frequency	7.5 pF	5 - 18 pF
Current - Peak Pulse (10/1000µs)	6 A	4 - 8 A
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 C	85 C
Operating Temperature [Min]	-55 C	-55 C
Package / Case	0603 Metric	0603 Metric
Package / Case	0201	0201
Power - Peak Pulse	80 W	46 - 90 W
Power Line Protection	False	False
Supplier Device Package	0201	0201
Type	Zener	Zener
Voltage - Breakdown (Min) [Min]	10 V	4.7 - 15.5 V
Voltage - Clamping (Max) @ Ipp	17.3 V	6.3 - 17.3 V
Voltage - Clamping (Max) @ Ipp	-	19.4 V
Voltage - Reverse Standoff (Typ)	9 V	5 - 12 V
Voltage - Reverse Standoff (Typ)	-	3 - 7 V

Part	Type	Applications	Package / Case	Package / Case	Mounting Type	Voltage - Reverse Standoff (Typ)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Breakdown (Min) [Min]	Power - Peak Pulse	Capacitance @ Frequency	Current - Peak Pulse (10/1000µs)	Bidirectional Channels [custom]	Supplier Device Package	Voltage - Clamping (Max) @ Ipp	Voltage - Reverse Standoff (Typ) [Max]	Voltage - Clamping (Max) @ Ipp [Max]
Eaton - Electronics Division TVSL02V05C018	Zener	General Purpose	0603 Metric	0201	Surface Mount	5 V	85 C	-55 C	7 V	68 W	18 pF	8 A	1	0201	7.4 V
Eaton - Electronics Division TVSL02V07C006	Zener	General Purpose	0603 Metric	0201	Surface Mount		85 C	-55 C	7.5 V	90 W		8 A	1	0201	12.8 V	7 V
Eaton - Electronics Division TVSL02V03C011	Zener	General Purpose	0603 Metric	0201	Surface Mount		85 C	-55 C	4.7 V	50 W	11.5 pF	8 A	1	0201	6.3 V	3 V
Eaton - Electronics Division TVSL02V09C005	Zener	General Purpose	0603 Metric	0201	Surface Mount	9 V	85 C	-55 C	10 V	80 W	7.5 pF	6 A	1	0201	17.3 V
Eaton - Electronics Division TVSL02V05C005	Zener	General Purpose	0603 Metric	0201	Surface Mount	5 V	85 C	-55 C	7 V	46 W	5 pF	6 A	1	0201	11.5 V
Eaton - Electronics Division TVSL02V12C008	Zener	General Purpose	0603 Metric	0201	Surface Mount	12 V	85 C	-55 C	15.5 V	60 W		4 A	1	0201			19.4 V
