3419-6630

Active

3M (TC)

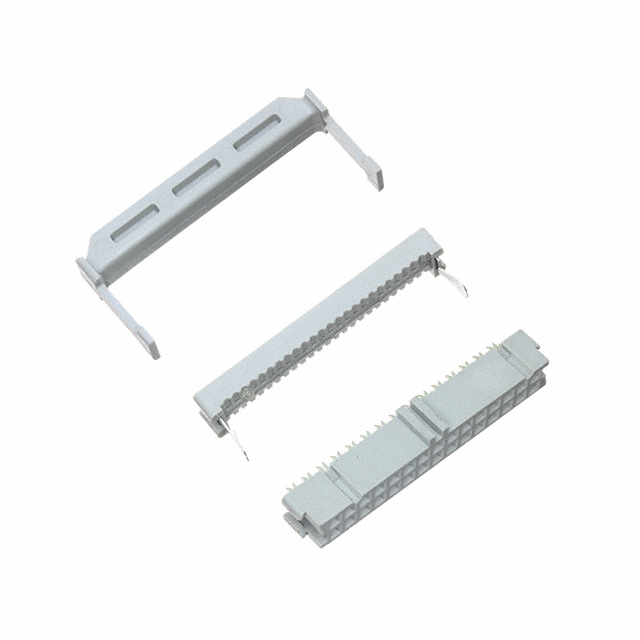

HEADER CONNECTOR,CABLE MOUNT,PLUG,30 CONTACTS,SKT,0.1 PITCH,IDC TERMINAL ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Catalog Datasheet

3419-6630

Active

3M (TC)

HEADER CONNECTOR,CABLE MOUNT,PLUG,30 CONTACTS,SKT,0.1 PITCH,IDC TERMINAL ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsInterconnect Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3419-6630

Cable Termination	IDC
Color	Gray
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Type	Female Socket
Features	Feed Through, Polarizing Key, Strain Relief
Mounting Type	Free Hanging (In-Line)
Number of Positions	30
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Wire Type	Ribbon Cable

3419 Series

Part	Contact Finish	Row Spacing [x]	Row Spacing	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Wire Type	Connector Type	Cable Termination	Number of Positions	Color	Contact Type	Features	Number of Rows	Mounting Type	Wire Gauge [Min]	Wire Gauge [Max]	Wire Gauge
3M (TC) 3419-6630	Gold	0.1 in	2.54 mm	2.54 mm	0.1 in	0.76 Ám	30 Áin	Ribbon Cable	Receptacle	IDC	30	Gray	Female Socket	Feed Through Polarizing Key Strain Relief	2	Free Hanging (In-Line)
3M (TC) 3419-7000	Gold	0.1 in	2.54 mm	2.54 mm	0.1 in	0.76 Ám	30 Áin	Ribbon Cable	Receptacle	IDC	30	Gray	Female Socket	Closed End	2	Free Hanging (In-Line)
3M (TC) 3419-6000	Gold	0.1 in	2.54 mm	2.54 mm	0.1 in	0.76 Ám	30 Áin	Ribbon Cable	Receptacle	IDC	30	Gray	Female Socket	Feed Through	2	Free Hanging (In-Line)
3M (TC) 3419-7030	Gold	0.1 in	2.54 mm	2.54 mm	0.1 in	0.76 Ám	30 Áin	Ribbon Cable	Receptacle	IDC	30	Gray	Female Socket	Closed End Strain Relief	2	Free Hanging (In-Line)
3M (TC) 3419-6600	Gold	0.1 in	2.54 mm	2.54 mm	0.1 in	0.76 Ám	30 Áin	Ribbon Cable	Receptacle	IDC	30	Gray	Female Socket	Feed Through Polarizing Key	2	Free Hanging (In-Line)	26 AWG	28 AWG	Solid Stranded
3M (TC) 3419-7630	Gold	0.1 in	2.54 mm	2.54 mm	0.1 in	0.76 Ám	30 Áin	Ribbon Cable	Receptacle	IDC	30	Gray	Female Socket	Closed End Polarizing Key Strain Relief	2	Free Hanging (In-Line)
3M (TC) 3419-6606	Gold	0.1 in	2.54 mm	2.54 mm	0.1 in	0.76 Ám	30 Áin	Ribbon Cable	Receptacle	IDC		Gray	Female Socket	Feed Through Polarizing Key Strain Relief	2	Free Hanging (In-Line)	26 AWG	28 AWG	Solid Stranded
3M (TC) 3419-7600	Gold	0.1 in	2.54 mm	2.54 mm	0.1 in	0.76 Ám	30 Áin	Ribbon Cable	Receptacle	IDC	30	Gray	Female Socket		2	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.52
		10	$ 6.80
		25	$ 6.42
		50	$ 6.27
		100	$ 5.95
		300	$ 5.33
		600	$ 5.01
		1200	$ 4.39
Newark	Each	250	$ 6.18
		500	$ 5.74
		1000	$ 5.39

Description

General part information

3419 Series

30 Position Rectangular Receptacle Connector IDC Gold 26-28 AWG
