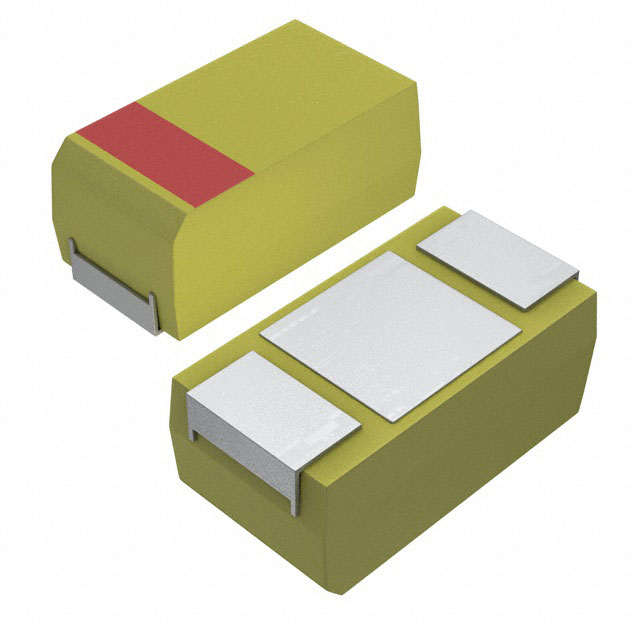

T495C226K016ATA1K5

Active

KEMET

CAP TANT 22UF 10% 16V 2312

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsT495C226K016ATA1K5 Spec Datasheet

T495C226K016ATA1K5

Active

KEMET

CAP TANT 22UF 10% 16V 2312

Deep-Dive with AI

DocumentsT495C226K016ATA1K5 Spec Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T495C226K016ATA1K5

Capacitance	22 µF
ESR (Equivalent Series Resistance)	1.5 Ohm
Features	Automotive
Grade	Automotive
Lifetime @ Temp.	2000 Hrs
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	6032 Metric
Package / Case	2312
Qualification	AEC-Q200
Ratings	AEC-Q200
Size / Dimension [x]	6 mm
Size / Dimension [x]	0.236 in
Size / Dimension [y]	3.2 mm
Size / Dimension [y]	0.126 "
Tolerance	10 %
Type	Molded
Voltage - Rated	16 V

T495C Series

Part	Capacitance	Type	Lifetime @ Temp.	Mounting Type	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	ESR (Equivalent Series Resistance)	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Voltage - Rated	Package / Case	Package / Case	Qualification	Grade	Ratings
KEMET T495C335K035ATE550	3.3 µF	Molded	2000 Hrs	Surface Mount	General Purpose	3.2 mm	6 mm	0.236 in	0.126 "	550 mOhms	-55 °C	125 °C	10 %	35 V	6032 Metric	2312
KEMET T495C226K016ATA1K5	22 µF	Molded	2000 Hrs	Surface Mount	Automotive	3.2 mm	6 mm	0.236 in	0.126 "	1.5 Ohm	-55 °C	125 °C	10 %	16 V	6032 Metric	2312	AEC-Q200	Automotive	AEC-Q200
KEMET T495C227M006ATE200	220 µF	Molded	2000 Hrs	Surface Mount	General Purpose	3.2 mm	6 mm	0.236 in	0.126 "	200 mOhm	-55 °C	125 °C	20 %	6.3 V	6032 Metric	2312
KEMET T495C686M016ATE180	68 µF	Molded	2000 Hrs	Surface Mount	General Purpose	3.2 mm	6 mm	0.236 in	0.126 "	180 mOhm	-55 °C	125 °C	20 %	16 V	6032 Metric	2312
KEMET T495C226K010ATE350	22 µF	Molded	2000 Hrs	Surface Mount	General Purpose	3.2 mm	6 mm	0.236 in	0.126 "	350 mOhm	-55 °C	125 °C	10 %	10 V	6032 Metric	2312
KEMET T495C157K004ATE250	150 µF	Molded	2000 Hrs	Surface Mount	General Purpose	3.2 mm	6 mm	0.236 in	0.126 "	250 mOhm	-55 °C	125 °C	10 %	4 V	6032 Metric	2312
KEMET T495C106K016ATE450	10 µF	Molded	2000 Hrs	Surface Mount	General Purpose	3.2 mm	6 mm	0.236 in	0.126 "	450 mOhm	-55 °C	125 °C	10 %	16 V	6032 Metric	2312
KEMET T495C335M035ATE550	3.3 µF	Molded	2000 Hrs	Surface Mount	General Purpose	3.2 mm	6 mm	0.236 in	0.126 "	550 mOhm	-55 °C	125 °C	20 %	35 V	6032 Metric	2312
KEMET T495C106K025ATE300	10 µF	Molded	2000 Hrs	Surface Mount	General Purpose	3.2 mm	6 mm	0.236 in	0.126 "		-55 °C	125 °C	10 %	25 VDC	6032 Metric	2312
KEMET T495C105K050ATE1K6	1 µF	Molded	2000 Hrs	Surface Mount	General Purpose	3.2 mm	6 mm	0.236 in	0.126 "	1.6 Ohm	-55 °C	125 °C	10 %	50 VDC	6032 Metric	2312

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.52
		10	$ 1.14
		50	$ 1.04
		100	$ 0.85
	Digi-Reel®	1	$ 1.52
		10	$ 1.14
		50	$ 1.04
		100	$ 0.85
	Tape & Reel (TR)	500	$ 0.57
		1000	$ 0.53
		1500	$ 0.51
		2500	$ 0.50

Description

General part information

T495C Series

22 µF Molded Tantalum Capacitors 16 V 2312 (6032 Metric) 1.5Ohm @ 100kHz

Documents

Technical documentation and resources

T495C226K016ATA1K5 Spec

Datasheet
