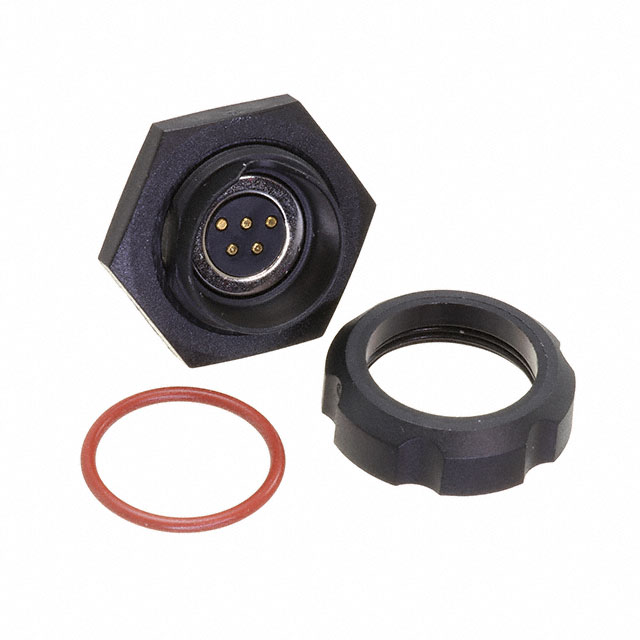

MF2K201-400L

Obsolete

Rosenberger

CONN JACK FMALE 5POS GOLD SOLDER

Search across all available documentation for this part.

Obsolete

Rosenberger

CONN JACK FMALE 5POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	MF2K201-400L

Color	Black
Connector Type	Female Sockets, Jack
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.15 µm
Contact Finish Thickness - Mating	5.9 µin
Contact Material	Brass
Ingress Protection	IP67, IP65
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-25 °C
Shielding	Unshielded
Termination	Solder
Voltage Rating	50 V

Part	Material Flammability Rating	Contact Material	Contact Finish - Mating	Ingress Protection	Mounting Type	Connector Type	Termination	Shielding	Mounting Feature	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Rosenberger MF2K201-400L	UL94 V-0	Brass	Gold	IP65 IP67	Panel Mount Right Angle Through Hole	Female Sockets Jack	Solder	Unshielded	Bulkhead - Front Side Nut	50 V	-25 °C	75 ░C	Black	0.15 µm	5.9 µin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

5 Position Circular Connector Jack, Female Sockets Solder

Technical documentation and resources

No documents available
