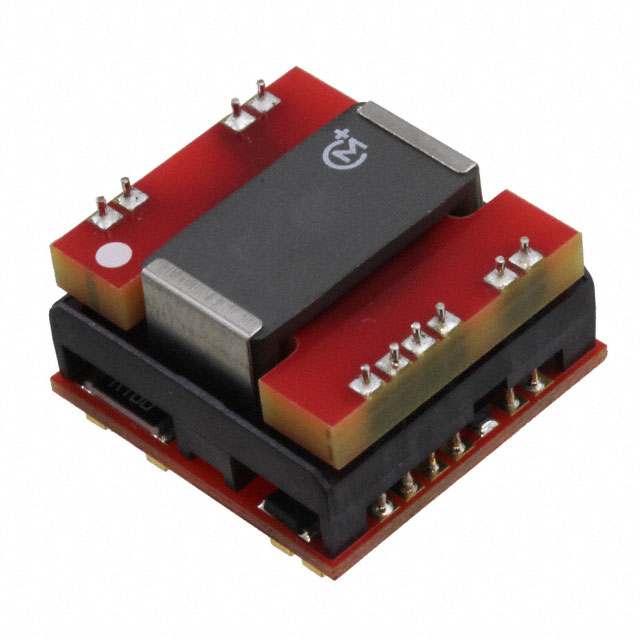

MGJ3T12150505MC-R13

Active

Murata Power Solutions Inc.

ISOLATED SURFACE MOUNT DC/DC CONVERTER, GATE DRIVE, 2:1, 3 W, 3 OUTPUT, 15 V

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

ISOLATED SURFACE MOUNT DC/DC CONVERTER, GATE DRIVE, 2:1, 3 W, 3 OUTPUT, 15 V

Technical Specifications

Parameters and characteristics commom to parts in this series

ISOLATED SURFACE MOUNT DC/DC CONVERTER, GATE DRIVE, 2:1, 3 W, 3 OUTPUT, 15 V

Part	Mounting Type	Package / Case	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Applications	Current - Output (Max)	Current - Output (Max)	Number of Outputs	Voltage - Input (Min) [Min]	Voltage - Output 1	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Type	Features	Voltage - Output 2	Voltage - Isolation	Voltage - Input (Max) [Max]
Murata Power Solutions Inc. MGJ3T12150505MC-R13	Surface Mount	7-SMD Module	0.89 in	0.58 "	22.6 mm	14.7 mm	23 mm	0.91 "	ITE (Commercial), Medical	120 mA	120 mA	2	9 V	15 V	3 W	-40 °C	105 ░C	Isolated Module	SCP, UVLO	-10 V	5.2 kV	18 V
Murata Power Solutions Inc. MGJ3T12150505MC-R7	Surface Mount	7-SMD Module	0.89 in	0.58 "	22.6 mm	14.7 mm	23 mm	0.91 "	ITE (Commercial), Medical	120 mA	120 mA	2	9 V	15 V	3 W	-40 °C	105 ░C	Isolated Module	SCP, UVLO	-10 V	5.2 kV	18 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	92	$ 17.74
Newark	Each (Supplied on Full Reel)	1	$ 14.08

General part information

Isolated Module DC DC Converter 2 Output 15V -10V 120mA, 120mA 9V - 18V Input
