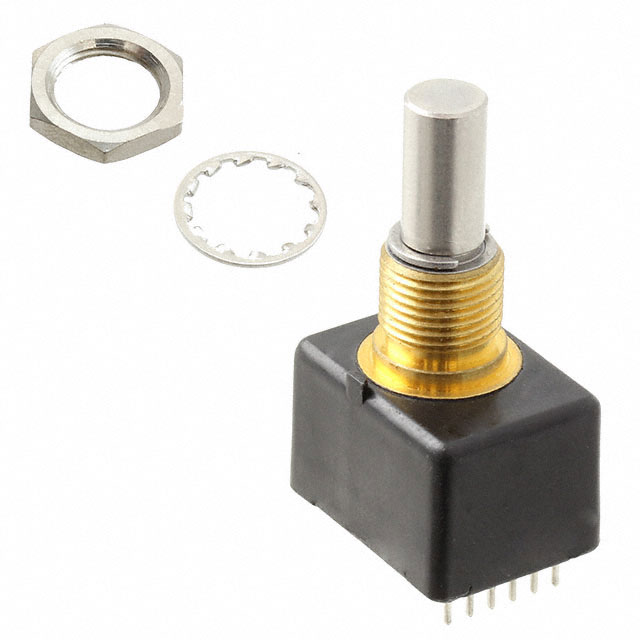

EMS22Q31-B28-LS4
ActiveBourns Inc.
ROTARY ENCODER MAGNETIC 256PPR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EMS22Q31-B28-LS4
ActiveBourns Inc.
ROTARY ENCODER MAGNETIC 256PPR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EMS22Q31-B28-LS4 |
|---|---|
| Actuator Type | 1/4" Dia Round End |
| Detent | False |
| Encoder Type | Magnetic |
| Orientation | Vertical |
| Output Type | Quadrature (Incremental) |
| Pulses per Revolution | 256 pulses per revolution |
| Rotational Life (Cycles Min) | 100M |
| Termination Style | PC Pin |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 46.88 | |
| 5 | $ 40.27 | |||
| 10 | $ 37.71 | |||
| 25 | $ 34.56 | |||
| 40 | $ 33.40 | |||
Description
General part information
EMS22Q31 Series
Rotary Encoder Magnetic 256 Quadrature (Incremental) Vertical
