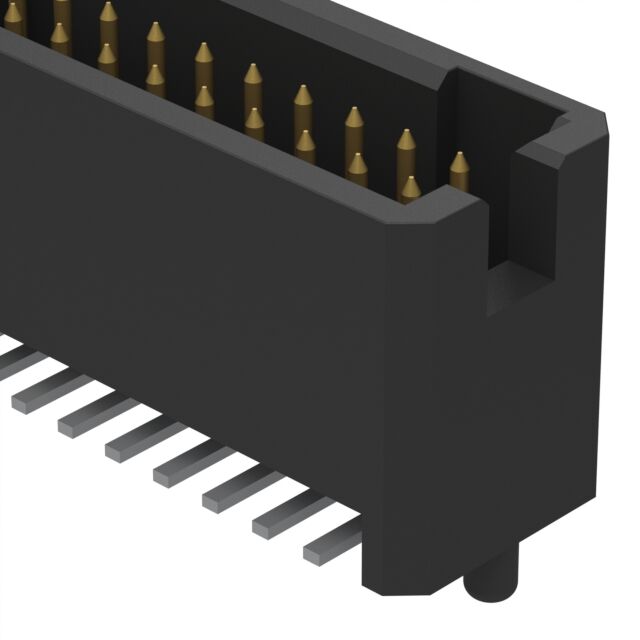

TFC-125-12-F-D-A-K-TR

Active

Samtec Inc.

.050 X .050 TERMINAL STRIP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TFC-125-12-F-D-A-K-TR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Length - Mating	0.139 in
Contact Length - Mating	3.53 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3.1 A
Fastening Type	Push-Pull
Features	Pick and Place, Board Guide
Insulation Color	Black
Insulation Height	0.296 in
Insulation Height	7.52 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	350 VAC, 275 VAC

TFC-125 Series

Part	Features	Connector Type	Contact Length - Mating	Contact Length - Mating	Number of Rows	Contact Finish - Post	Fastening Type	Contact Finish - Mating	Current Rating (Amps)	Contact Material	Mounting Type	Voltage Rating	Shrouding	Insulation Color	Pitch - Mating	Pitch - Mating	Number of Positions	Number of Positions Loaded	Insulation Height	Insulation Height	Material Flammability Rating	Style	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Contact Length - Post	Contact Length - Post
Samtec Inc. TFC-125-02-FM-D-A	Board Guide	Header	3.33 mm	0.131 in	2	Tin	Push-Pull	Gold	3.1 A	Phosphor Bronze	Surface Mount	275 VAC	Shrouded - 4 Wall	Black	0.05 in	1.27 mm	50	All	0.226 in	5.74 mm	UL94 V-0	Board to Board Cable	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Male Pin	0.05 in	1.27 mm	Square	3 µin	0.076 µm	Solder
Samtec Inc. TFC-125-02-L-D-A-K	Board Guide Pick and Place	Header	3.33 mm	0.131 in	2	Tin	Push-Pull	Gold	3.1 A	Phosphor Bronze	Surface Mount	275 VAC	Shrouded - 4 Wall	Black	0.05 in	1.27 mm	50	All	0.226 in	5.74 mm	UL94 V-0	Board to Board Cable	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Male Pin	0.05 in	1.27 mm	Square	10 çin	0.25 çm	Solder
Samtec Inc. TFC-125-12-F-D-A-K-TR	Board Guide Pick and Place	Header	3.53 mm	0.139 in	2	Tin	Push-Pull	Gold	3.1 A	Phosphor Bronze	Surface Mount	275 VAC 350 VAC	Shrouded - 4 Wall	Black	0.05 in	1.27 mm	50	All	0.296 in	7.52 mm	UL94 V-0	Board to Board Cable	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Male Pin	0.05 in	1.27 mm	Square	3 µin	0.076 µm	Solder
Samtec Inc. TFC-125-11-L-D		Header	3.53 mm	0.139 in	2	Tin	Push-Pull	Gold	3.1 A	Phosphor Bronze	Through Hole	275 VAC	Shrouded - 4 Wall	Black	0.05 in	1.27 mm	50	All	0.29 in	7.37 mm	UL94 V-0	Board to Board Cable	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Male Pin	0.05 in	1.27 mm	Square	10 çin	0.25 çm	Solder	2.03 mm	0.08 in
Samtec Inc. TFC-125-22-F-D-K	Pick and Place	Header	3.53 mm	0.139 in	2	Tin	Push-Pull	Gold	3.1 A	Phosphor Bronze	Surface Mount	275 VAC	Shrouded - 4 Wall	Black	0.05 in	1.27 mm	50	All	0.366 in	9.3 mm	UL94 V-0	Board to Board Cable	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Male Pin	0.05 in	1.27 mm	Square	3 µin	0.076 µm	Solder
Samtec Inc. TFC-125-32-L-D-K-TR	Pick and Place	Header	3.53 mm	0.139 in	2	Tin	Push-Pull	Gold	3.1 A	Phosphor Bronze	Surface Mount	275 VAC	Shrouded - 4 Wall	Black	0.05 in	1.27 mm	50	All	0.441 "	11.2 mm	UL94 V-0	Board to Board Cable	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Male Pin	0.05 in	1.27 mm	Square	10 çin	0.25 çm	Solder
Samtec Inc. TFC-125-22-F-D-A-K	Board Guide Pick and Place	Header	3.53 mm	0.139 in	2	Tin	Push-Pull	Gold	3.1 A	Phosphor Bronze	Surface Mount	275 VAC	Shrouded - 4 Wall	Black	0.05 in	1.27 mm	50	All	0.366 in	9.3 mm	UL94 V-0	Board to Board Cable	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Male Pin	0.05 in	1.27 mm	Square	3 µin	0.076 µm	Solder
Samtec Inc. TFC-125-11-L-D-A	Board Guide	Header	3.53 mm	0.139 in	2	Tin	Push-Pull	Gold	3.1 A	Phosphor Bronze	Through Hole	275 VAC	Shrouded - 4 Wall	Black	0.05 in	1.27 mm	50	All	0.29 in	7.37 mm	UL94 V-0	Board to Board Cable	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Male Pin	0.05 in	1.27 mm	Square	10 çin	0.25 çm	Solder	2.03 mm	0.08 in
Samtec Inc. TFC-125-02-L-D-K	Pick and Place	Header	3.33 mm	0.131 in	2	Tin	Push-Pull	Gold	3.1 A	Phosphor Bronze	Surface Mount	275 VAC	Shrouded - 4 Wall	Black	0.05 in	1.27 mm	50	All	0.226 in	5.74 mm	UL94 V-0	Board to Board Cable	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Male Pin	0.05 in	1.27 mm	Square	10 çin	0.25 çm	Solder
Samtec Inc. TFC-125-02-F-D-A-P-TR	Board Guide Pick and Place	Header	3.33 mm	0.131 in	2	Tin	Push-Pull	Gold	3.1 A	Phosphor Bronze	Surface Mount	275 VAC	Shrouded - 4 Wall	Black	0.05 in	1.27 mm	50	All	0.226 in	5.74 mm	UL94 V-0	Board to Board Cable	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Male Pin	0.05 in	1.27 mm	Square	3 µin	0.076 µm	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	300	$ 4.38

Description

General part information

TFC-125 Series

Connector Header Surface Mount 50 position 0.050" (1.27mm)
