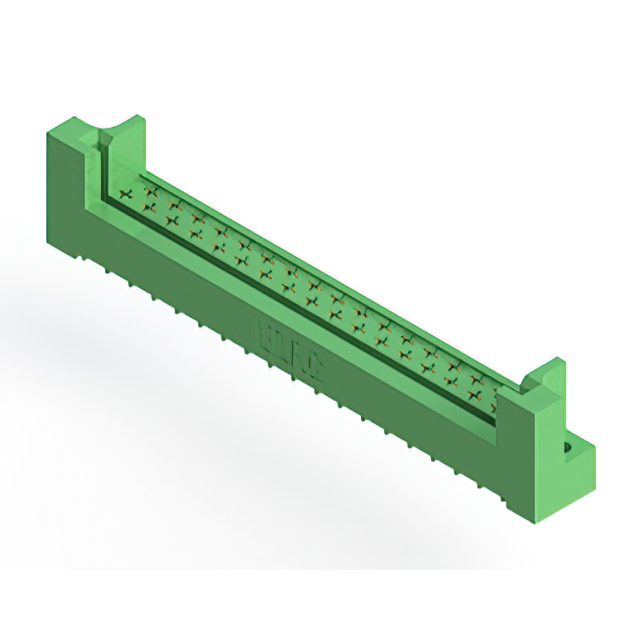

408-035-524-222

Active

EDAC Inc.

CONN EDGE DL FMALE 35P 0.200 2PC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

408-035-524-222

Active

EDAC Inc.

CONN EDGE DL FMALE 35P 0.200 2PC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	408-035-524-222

Card Thickness	0.093 in
Card Thickness	2.36 mm
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Features	Card Guides
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole, Panel Mount
Number of Positions	35
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Termination	Solder
Termination Rows	2

408-035 Series

Part	Material - Insulation	Card Thickness	Card Thickness	Pitch [x]	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Termination	Termination Rows	Gender	Card Type	Number of Rows	Contact Finish	Mounting Type	Color	Features
EDAC Inc. 408-035-524-222	Diallyl Phthalate (DAP)	0.093 in	2.36 mm	0.2 in	5.08 mm	125 °C	-65 ░C	35	10 Áin	0.25 Ám	Copper Alloy	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Solder	2	Female	Non Specified - Dual Edge	2	Gold	Panel Mount Through Hole	Green	Card Guides
EDAC Inc. 408-035-523-112	Diallyl Phthalate (DAP)	0.062 in	1.57 mm	0.2 in	5.08 mm	125 °C	-65 ░C	35	10 Áin	0.25 Ám	Copper Alloy	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Solder	2	Female	Non Specified - Dual Edge	2	Gold	Panel Mount Through Hole	Green
EDAC Inc. 408-035-521-222	Diallyl Phthalate (DAP)	0.093 in	2.36 mm	0.2 in	5.08 mm	125 °C	-65 ░C	35	10 Áin	0.25 Ám	Copper Alloy	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Solder	2	Female	Non Specified - Dual Edge	2	Gold	Panel Mount Through Hole	Green	Card Guides
EDAC Inc. 408-035-502-222	Diallyl Phthalate (DAP)	0.093 in	2.36 mm	0.2 in	5.08 mm	125 °C	-65 ░C	35	10 Áin	0.25 Ám	Copper Alloy	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Solder	2	Female	Non Specified - Dual Edge	2	Gold	Panel Mount Through Hole	Green	Card Guides
EDAC Inc. 408-035-522-122	Diallyl Phthalate (DAP)	0.093 in	2.36 mm	0.2 in	5.08 mm	125 °C	-65 ░C	35	10 Áin	0.25 Ám	Copper Alloy	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Solder	2	Female	Non Specified - Dual Edge	2	Gold	Panel Mount Through Hole	Green
EDAC Inc. 408-035-522-112	Diallyl Phthalate (DAP)	0.062 in	1.57 mm	0.2 in	5.08 mm	125 °C	-65 ░C	35	10 Áin	0.25 Ám	Copper Alloy	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Solder	2	Female	Non Specified - Dual Edge	2	Gold	Panel Mount Through Hole	Green
EDAC Inc. 408-035-525-112	Diallyl Phthalate (DAP)	0.062 in	1.57 mm	0.2 in	5.08 mm	125 °C	-65 ░C	35	10 Áin	0.25 Ám	Copper Alloy	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Solder	2	Female	Non Specified - Dual Edge	2	Gold	Panel Mount Through Hole	Green
EDAC Inc. 408-035-502-212	Diallyl Phthalate (DAP)	0.062 in	1.57 mm	0.2 in	5.08 mm	125 °C	-65 ░C	35	10 Áin	0.25 Ám	Copper Alloy	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Solder	2	Female	Non Specified - Dual Edge	2	Gold	Panel Mount Through Hole	Green	Card Guides
EDAC Inc. 408-035-542-222	Diallyl Phthalate (DAP)	0.093 in	2.36 mm	0.2 in	5.08 mm	125 °C	-65 ░C	35	10 Áin	0.25 Ám	Copper Alloy	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Wire Wrap	2	Female	Non Specified - Dual Edge	2	Gold	Panel Mount Through Hole	Green	Card Guides
EDAC Inc. 408-035-520-112	Diallyl Phthalate (DAP)	0.062 in	1.57 mm	0.2 in	5.08 mm	125 °C	-65 ░C	35	10 Áin	0.25 Ám	Copper Alloy	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Solder	2	Female	Non Specified - Dual Edge	2	Gold	Panel Mount Through Hole	Green

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	25	$ 40.10

Description

General part information

408-035 Series

35 Position Female Connector Non Specified - Dual Edge Gold 0.200" (5.08mm) Green

Documents

Technical documentation and resources
