837-032-544-108
ActiveEDAC Inc.
CONN EDGE SGL FMALE 32POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
837-032-544-108
ActiveEDAC Inc.
CONN EDGE SGL FMALE 32POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 837-032-544-108 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions/Bay/Row [custom] | 32 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
837-032 Series
...
| Part | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Termination Rows | Mounting Type | Read Out | Pitch [x] | Pitch [x] | Gender | Material - Insulation | Color | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions/Bay/Row [custom] | Card Type | Number of Rows | Contact Material | Contact Type | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Gold | 10 Áin | 0.25 Ám | 1 | Through Hole | Single | 0.156 in | 3.96 mm | Female | Diallyl Phthalate (DAP) | Green | Wire Wrap | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 32 | Non Specified - Single Edge | 1 | Copper Alloy | Cantilever | |||
EDAC Inc. | Gold | 10 Áin | 0.25 Ám | 2 | Through Hole | Dual | 0.156 in | 3.96 mm | Female | Diallyl Phthalate (DAP) | Green | Wire Wrap | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 16 | Non Specified - Dual Edge | 2 | Copper Alloy | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | ||
EDAC Inc. | Gold | 10 Áin | 0.25 Ám | 1 | Through Hole | Single | 0.156 in | 3.96 mm | Female | Diallyl Phthalate (DAP) | Green | Wire Wrap | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 32 | Non Specified - Single Edge | 1 | Copper Alloy | Cantilever | Top Mount Opening Unthreaded | 0.156 in | 3.96 mm |
EDAC Inc. | Gold | 10 Áin | 0.25 Ám | 1 | Through Hole Right Angle | Single | 0.156 in | 3.96 mm | Female | Diallyl Phthalate (DAP) | Green | Solder | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 32 | Non Specified - Single Edge | 1 | Copper Alloy | Cantilever | Floating Bobbin Top Mount Opening | 0.116 in | 2.95 mm |
EDAC Inc. | Gold | 10 Áin | 0.25 Ám | 1 | Through Hole | Single | 0.156 in | 3.96 mm | Female | Diallyl Phthalate (DAP) | Green | Wire Wrap | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 32 | Non Specified - Single Edge | 1 | Copper Alloy | Cantilever | Flush Mount M3 Threaded Insert Top Opening | ||
EDAC Inc. | Gold | 10 Áin | 0.25 Ám | 1 | Through Hole Right Angle | Single | 0.156 in | 3.96 mm | Female | Diallyl Phthalate (DAP) | Green | Solder | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 32 | Non Specified - Single Edge | 1 | Copper Alloy | Cantilever | |||
EDAC Inc. | Gold | 10 Áin | 0.25 Ám | 1 | Through Hole | Single | 0.156 in | 3.96 mm | Female | Diallyl Phthalate (DAP) | Green | Wire Wrap | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 32 | Non Specified - Single Edge | 1 | Copper Alloy | Cantilever | 4-40 Threaded Insert Top Mount Opening | ||
EDAC Inc. | Gold | 10 Áin | 0.25 Ám | 2 | Through Hole | Dual | 0.156 in | 3.96 mm | Female | Diallyl Phthalate (DAP) | Green | Wire Wrap | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 16 | Non Specified - Dual Edge | 2 | Copper Alloy | Cantilever | |||
EDAC Inc. | Gold | 10 Áin | 0.25 Ám | 1 | Through Hole | Single | 0.156 in | 3.96 mm | Female | Diallyl Phthalate (DAP) | Green | Wire Wrap | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 32 | Non Specified - Single Edge | 1 | Copper Alloy | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | ||
EDAC Inc. | Gold | 10 Áin | 0.25 Ám | 2 | Through Hole | Dual | 0.156 in | 3.96 mm | Female | Diallyl Phthalate (DAP) | Green | Solder | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 16 | Non Specified - Dual Edge | 2 | Copper Alloy | Cantilever | Floating Bobbin Flush Mount | 0.116 in | 2.95 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 66.15 | |
Description
General part information
837-032 Series

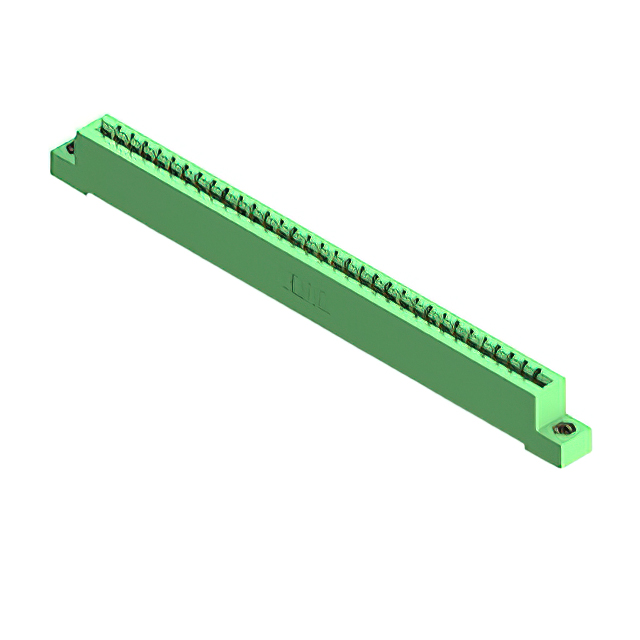

32 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
