AOLF-2B

Active

SRA Soldering Products

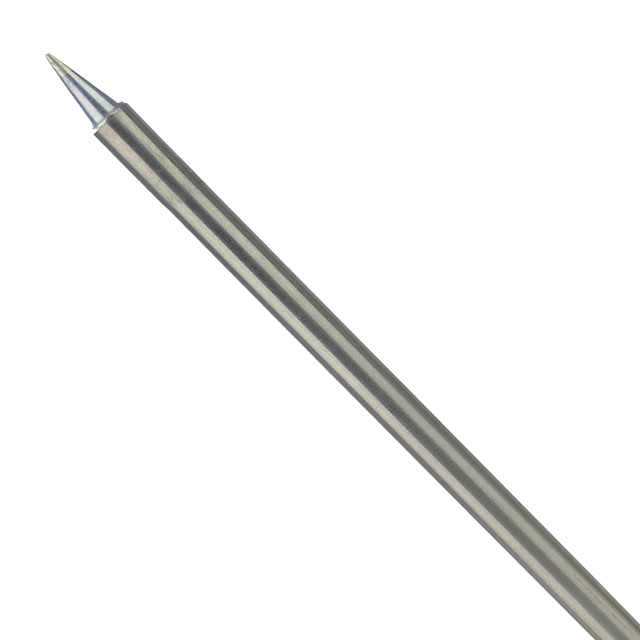

CONICAL SOLDERING IRON TIP WQ-2B

Search across all available documentation for this part.

Active

SRA Soldering Products

CONICAL SOLDERING IRON TIP WQ-2B

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AOLF-2B	AOLF Series

Diameter	-	1.19 - 1.6 mm
Diameter	-	0.047 - 0.063 in
For Use With/Related Products	2930, 2702A+, 2703A+, 2900	2930, 2702A+, 2703A+, 2900
Height	-	0.02 in
Height	-	0.5 mm
Length	-	0.205 in
Length	-	5.21 mm
Tip Shape	Conical	Flat, Conical, Chisel, Bent 30°, Blade
Tip Type	Soldering	Soldering
Width	-	0.618 in
Width	-	15.7 - 25 mm
Width	-	0.047 - 1.575 in
Width	-	1.2 - 40 mm

FLAT BLADE TYPE SOLDERING IRON T

Part	Tip Shape	Tip Type	For Use With/Related Products	Width	Width	Width [x]	Width [x]	Diameter [diameter]	Diameter [diameter]
SRA Soldering Products AOLF-1401	Flat	Soldering	2702A+, 2703A+, 2900, 2930	0.618 in	15.7 mm
SRA Soldering Products AOLF-1402	Flat	Soldering	2702A+, 2703A+, 2900, 2930			1.575 in	40 mm
SRA Soldering Products AOLF-2B	Conical	Soldering	2702A+, 2703A+, 2900, 2930
SRA Soldering Products AOLF-12D		Soldering	2702A+, 2703A+, 2900, 2930					1.19 mm	0.047 in
SRA Soldering Products AOLF-I	Conical	Soldering	2702A+, 2703A+, 2900, 2930
SRA Soldering Products AOLF-LB	Conical	Soldering	2702A+, 2703A+, 2900, 2930
SRA Soldering Products AOLF-1BC	Chisel	Soldering	2702A+, 2703A+, 2900, 2930
SRA Soldering Products AOLF-08LD		Soldering	2702A+, 2703A+, 2900, 2930
SRA Soldering Products AOLF-2BCM		Soldering	2702A+, 2703A+, 2900, 2930
SRA Soldering Products AOLF-LI	Conical	Soldering	2702A+, 2703A+, 2900, 2930

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.99

General part information

CONICAL SOLDERING IRON TIP WQ-2B

Technical documentation and resources
