CBT25J100R

Obsolete

TE Connectivity Passive Product

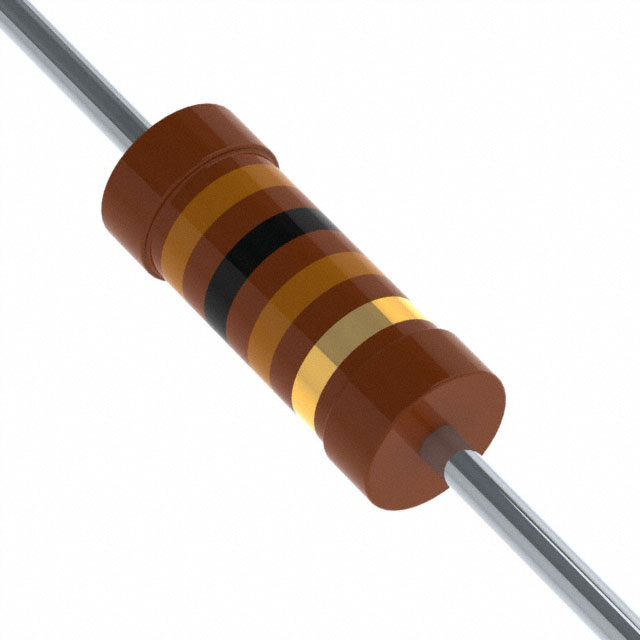

RES 100 OHM 5% 1/4W AXIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CBT25J100R

Obsolete

TE Connectivity Passive Product

RES 100 OHM 5% 1/4W AXIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CBT25J100R

Composition	Carbon Composition
Features	Pulse Withstanding
Number of Terminations	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Axial
Power (Watts)	0.25 W
Power (Watts)	250 mW
Resistance	100 Ohms
Size / Dimension [diameter]	0.094 "
Size / Dimension [diameter]	2.4 mm
Size / Dimension [z]	0.248 in
Size / Dimension [z]	6.3 mm
Supplier Device Package	Axial
Temperature Coefficient [Max]	400 ppm/°C
Temperature Coefficient [Min]	-700 ppm/°C
Tolerance	5 %

CBT25 Series

Part	Temperature Coefficient [Min]	Temperature Coefficient [Max]	Resistance	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [z]	Composition	Number of Terminations	Package / Case	Power (Watts)	Power (Watts)	Features	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package
TE Connectivity Passive Product CBT25J100R	-700 ppm/°C	400 ppm/°C	100 Ohms	0.248 in	0.094 "	2.4 mm	6.3 mm	Carbon Composition	2	Axial	0.25 W	250 mW	Pulse Withstanding	5 %	-55 °C	125 °C	Axial
TE Connectivity Passive Product CBT25J1M5	-700 ppm/°C	400 ppm/°C	1.5 MOhms	0.248 in	0.094 "	2.4 mm	6.3 mm	Carbon Composition	2	Axial	0.25 W	250 mW	Pulse Withstanding	5 %	-55 °C	125 °C	Axial
TE Connectivity Passive Product CBT25K100K	-700 ppm/°C	400 ppm/°C	100 kOhms	0.248 in	0.094 "	2.4 mm	6.3 mm	Carbon Composition	2	Axial	0.25 W	250 mW	Pulse Withstanding	10 %	-55 °C	125 °C	Axial
TE Connectivity Passive Product CBT25J680K	-700 ppm/°C	400 ppm/°C	680 kOhms	0.248 in	0.094 "	2.4 mm	6.3 mm	Carbon Composition	2	Axial	0.25 W	250 mW	Pulse Withstanding	5 %	-55 °C	125 °C	Axial
TE Connectivity Passive Product CBT25J10K	-700 ppm/°C	400 ppm/°C	10000 Ohms	0.248 in	0.094 "	2.4 mm	6.3 mm	Carbon Composition	2	Axial	0.25 W	250 mW	Pulse Withstanding	5 %	-55 °C	125 °C	Axial
TE Connectivity Passive Product CBT25J22K	-700 ppm/°C	400 ppm/°C	22 kOhms	0.248 in	0.094 "	2.4 mm	6.3 mm	Carbon Composition	2	Axial	0.25 W	250 mW	Pulse Withstanding	5 %	-55 °C	125 °C	Axial
TE Connectivity Passive Product CBT25J220R	-700 ppm/°C	400 ppm/°C	220 Ohms	0.248 in	0.094 "	2.4 mm	6.3 mm	Carbon Composition	2	Axial	0.25 W	250 mW	Pulse Withstanding	5 %	-55 °C	125 °C	Axial

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

CBT25 Series

100 Ohms ±5% 0.25W, 1/4W Through Hole Resistor Axial Pulse Withstanding Carbon Composition
