796693-3

Active

TE Connectivity AMP Connectors

TERM BLOCK PLUG 3POS 3.50MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

796693-3

Active

TE Connectivity AMP Connectors

TERM BLOCK PLUG 3POS 3.50MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.47
		10	$ 2.47
		25	$ 2.16
		50	$ 1.96
		200	$ 1.67
		400	$ 1.56
		600	$ 1.51
		1000	$ 1.45
		5000	$ 1.33

Description

General part information

796693 Series

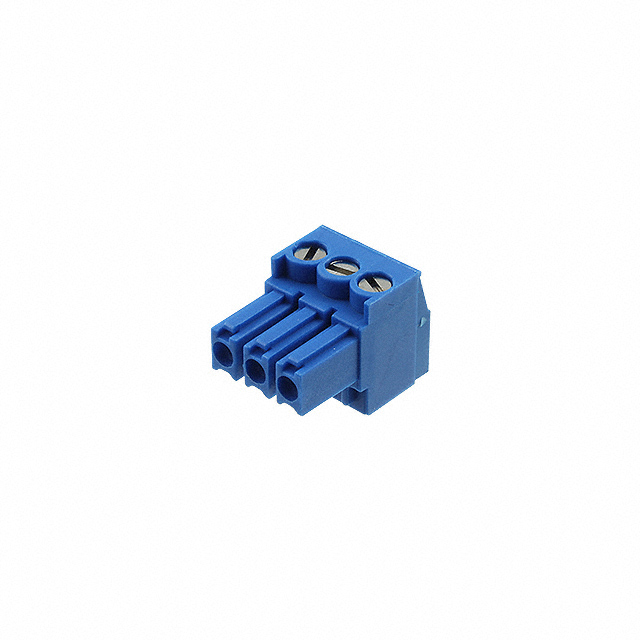

3 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	796693-3	796693 Series

Color	Blue	Blue
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Mating Finish	Tin	Tin
Current - UL	11 A	11 A
Features	Side Stacking	Side Stacking
Insulation Height	0.437 in	0.437 in
Insulation Height	11.1 mm	11.1 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Levels	1	1
Number of Positions	-	4 - 24
Operating Temperature [Max]	110 °C	110 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	3.5 mm	3.5 mm
Pitch [x]	0.138 in	0.138 in
Positions Per Level	3	3 - 23
Screw Size	M2	M2
Termination Style	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp
Torque - Screw	2.7 Lb-In	2.7 Lb-In
Torque - Screw	0.31 Nm	0.31 Nm
Type	Plug, Female Sockets	Plug, Female Sockets
Voltage - UL	300 V	300 V
Wire Gauge or Range - AWG [Max]	30 AWG	30 AWG
Wire Gauge or Range - AWG [Min]	14 AWG	14 AWG
Wire Gauge or Range - mm˛	-	2 mm˛
Wire Gauge or Range - mm˛	-	0.3 mm˛
Wire Gauge or Range - mm² [Max]	2 mm²	2 mm²
Wire Gauge or Range - mm² [Min]	0.3 mm²	0.3 mm²
Wire Strip Length [Max]	6 mm	6 mm
Wire Strip Length [Min]	5 mm	5 mm

796693 Series

TERM BLOCK PLUG 15POS STR 3.5MM

Part	Screw Size	Features	Termination Style	Material Flammability Rating	Wire Strip Length [Min]	Wire Strip Length [Max]	Insulation Height	Insulation Height	Pitch [x]	Pitch [x]	Contact Mating Finish	Color	Number of Positions	Contact Material	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Type	Mounting Type	Current - UL	Number of Levels	Operating Temperature [Min]	Operating Temperature [Max]	Torque - Screw	Torque - Screw	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Positions Per Level	Voltage - UL	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]
TE Connectivity AMP Connectors 1-796693-5	M2	Side Stacking	Screw - Rising Cage Clamp	UL94 V-0	5 mm	6 mm	0.437 in	11.1 mm	3.5 mm	0.138 in	Tin	Blue	15	Phosphor Bronze	14 AWG	30 AWG	Plug, Female Sockets	Free Hanging (In-Line)	11 A	1	-40 °C	110 °C	2.7 Lb-In	0.31 Nm	0.3 mm²	2 mm²	15	300 V
TE Connectivity AMP Connectors 2-796693-1	M2	Side Stacking	Screw - Rising Cage Clamp	UL94 V-0	5 mm	6 mm	0.437 in	11.1 mm	3.5 mm	0.138 in	Tin	Blue	21	Phosphor Bronze	14 AWG	30 AWG	Plug, Female Sockets	Free Hanging (In-Line)	11 A	1	-40 °C	110 °C	2.7 Lb-In	0.31 Nm	0.3 mm²	2 mm²	21	300 V
TE Connectivity AMP Connectors 796693-9	M2	Side Stacking	Screw - Rising Cage Clamp	UL94 V-0	5 mm	6 mm	0.437 in	11.1 mm	3.5 mm	0.138 in	Tin	Blue	9	Phosphor Bronze	14 AWG	30 AWG	Plug, Female Sockets	Free Hanging (In-Line)	11 A	1	-40 °C	110 °C	2.7 Lb-In	0.31 Nm	0.3 mm²	2 mm²	9	300 V
TE Connectivity AMP Connectors 2-796693-0	M2	Side Stacking	Screw - Rising Cage Clamp	UL94 V-0	5 mm	6 mm	0.437 in	11.1 mm	3.5 mm	0.138 in	Tin	Blue	20	Phosphor Bronze	14 AWG	30 AWG	Plug, Female Sockets	Free Hanging (In-Line)	11 A	1	-40 °C	110 °C	2.7 Lb-In	0.31 Nm	0.3 mm²	2 mm²	20	300 V
TE Connectivity AMP Connectors 2-796693-3	M2	Side Stacking	Screw - Rising Cage Clamp	UL94 V-0	5 mm	6 mm	0.437 in	11.1 mm	3.5 mm	0.138 in	Tin	Blue	23	Phosphor Bronze	14 AWG	30 AWG	Plug, Female Sockets	Free Hanging (In-Line)	11 A	1	-40 °C	110 °C	2.7 Lb-In	0.31 Nm	0.3 mm²	2 mm²	23	300 V
TE Connectivity AMP Connectors 2-796693-4	M2	Side Stacking	Screw - Rising Cage Clamp	UL94 V-0	5 mm	6 mm	0.437 in	11.1 mm	3.5 mm	0.138 in	Tin	Blue	24	Phosphor Bronze	14 AWG	30 AWG	Plug, Female Sockets	Free Hanging (In-Line)	11 A	1	-40 °C	110 °C	2.7 Lb-In	0.31 Nm				300 V	2 mm˛	0.3 mm˛
TE Connectivity AMP Connectors 796693-5	M2	Side Stacking	Screw - Rising Cage Clamp	UL94 V-0	5 mm	6 mm	0.437 in	11.1 mm	3.5 mm	0.138 in	Tin	Blue		Phosphor Bronze	14 AWG	30 AWG	Plug, Female Sockets	Free Hanging (In-Line)	11 A	1	-40 °C	110 °C	2.7 Lb-In	0.31 Nm	0.3 mm²	2 mm²	5	300 V
TE Connectivity AMP Connectors 1-796693-2	M2	Side Stacking	Screw - Rising Cage Clamp	UL94 V-0	5 mm	6 mm	0.437 in	11.1 mm	3.5 mm	0.138 in	Tin	Blue	12	Phosphor Bronze	14 AWG	30 AWG	Plug, Female Sockets	Free Hanging (In-Line)	11 A	1	-40 °C	110 °C	2.7 Lb-In	0.31 Nm			12	300 V	2 mm˛	0.3 mm˛
TE Connectivity AMP Connectors 796693-3	M2	Side Stacking	Screw - Rising Cage Clamp	UL94 V-0	5 mm	6 mm	0.437 in	11.1 mm	3.5 mm	0.138 in	Tin	Blue		Phosphor Bronze	14 AWG	30 AWG	Plug, Female Sockets	Free Hanging (In-Line)	11 A	1	-40 °C	110 °C	2.7 Lb-In	0.31 Nm	0.3 mm²	2 mm²	3	300 V
TE Connectivity AMP Connectors 796693-4	M2	Side Stacking	Screw - Rising Cage Clamp	UL94 V-0	5 mm	6 mm	0.437 in	11.1 mm	3.5 mm	0.138 in	Tin	Blue	4	Phosphor Bronze	14 AWG	30 AWG	Plug, Female Sockets	Free Hanging (In-Line)	11 A	1	-40 °C	110 °C	2.7 Lb-In	0.31 Nm	0.3 mm²	2 mm²	4	300 V
