Connectors, Interconnects

337-074-560-268

Active

EDAC Inc.

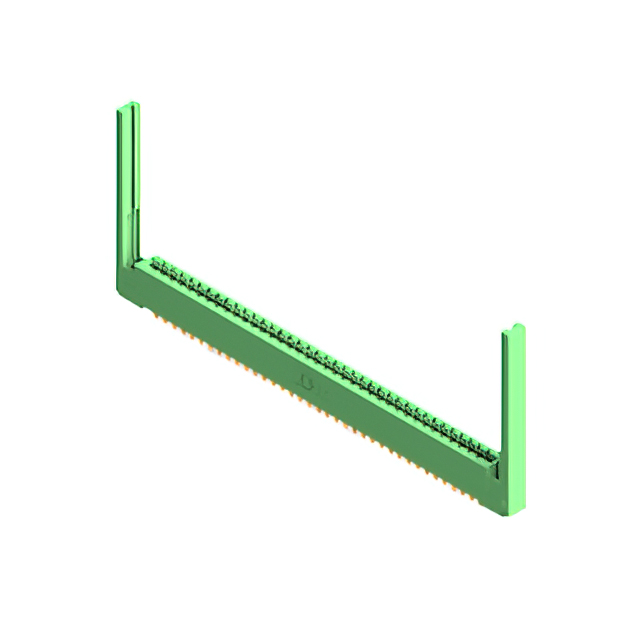

CONN EDGE DUAL FMALE 74POS 0.156

Connectors, Interconnects

337-074-560-268

Active

EDAC Inc.

CONN EDGE DUAL FMALE 74POS 0.156

Specifications Series Pricing CAD Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	337-074-560-268

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Extender, Card Guides
Flange Feature	Flush Mount, Top Opening, Threaded Insert, 4-40
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Straddle Mount, Board Edge
Number of Positions	74, 37 pos
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.156 in
Read Out	Dual
Termination	Solder
Termination Rows	2 rows

337-074 Series

...

Part	Contact Finish	Contact Finish Thickness	Number of Rows	Read Out	Card Thickness (Min)	Card Thickness (Max)	Gender	Number of Positions	Termination	Mounting Type	Contact Type	Color	Flange Feature	Card Type	Pitch	Contact Material	Operating Temperature (Min)	Operating Temperature (Max)	Material - Insulation	Termination Rows	Flange Feature Diameter	Features
EDAC Inc. 337-074-540-268	Gold	10 Ąin	2	Dual	0.054 in	0.07 in	Female	37 pos 74	Wire Wrap	Through Hole	Cantilever	Green	4-40 Flush Mount Threaded Insert Top Opening	Dual Edge Non Specified	0.156 in	Copper Alloy	-40 °C	105 °C	Polyester Thermoplastic	2 rows
EDAC Inc. 337-074-544-202	Gold	10 Ąin	2	Dual	0.054 in	0.07 in	Female	37 pos 74	Wire Wrap	Through Hole	Cantilever	Green	Flush Mount Top Opening Unthreaded	Dual Edge Non Specified	0.156 in	Copper Alloy	-40 °C	105 °C	Polyester Thermoplastic	2 rows	0.128 in
EDAC Inc. 337-074-542-258	Gold	10 Ąin	2	Dual	0.054 in	0.07 in	Female	37 pos 74	Wire Wrap	Through Hole	Cantilever	Green	4-40 Flush Mount Threaded Insert Top Opening	Dual Edge Non Specified	0.156 in	Copper Alloy	-40 °C	105 °C	Polyester Thermoplastic	2 rows		Card Guides
EDAC Inc. 337-074-524-268	Gold	10 Ąin	2	Dual	0.054 in	0.07 in	Female	37 pos 74	Solder	Through Hole	Cantilever	Green	4-40 Flush Mount Threaded Insert Top Opening	Dual Edge Non Specified	0.156 in	Copper Alloy	-40 °C	105 °C	Polyester Thermoplastic	2 rows		Card Guides
EDAC Inc. 337-074-556-878	Gold	10 Ąin	2	Dual	0.054 in	0.07 in	Female	37 pos 74	Solder	Board Edge Straddle Mount	Cantilever	Green	4-40 Threaded Insert Top Mount Opening	Dual Edge Non Specified	0.156 in	Copper Alloy	-40 °C	105 °C	Polyester Thermoplastic	2 rows		Card Extender Card Guides
EDAC Inc. 337-074-523-268	Gold	10 Ąin	2	Dual	0.054 in	0.07 in	Female	37 pos 74	Solder	Through Hole	Cantilever	Green	4-40 Flush Mount Threaded Insert Top Opening	Dual Edge Non Specified	0.156 in	Copper Alloy	-40 °C	105 °C	Polyester Thermoplastic	2 rows
EDAC Inc. 337-074-560-268	Gold	10 Ąin	2	Dual	0.054 in	0.07 in	Female	37 pos 74	Solder	Board Edge Straddle Mount	Cantilever	Green	4-40 Flush Mount Threaded Insert Top Opening	Dual Edge Non Specified	0.156 in	Copper Alloy	-40 °C	105 °C	Polyester Thermoplastic	2 rows		Card Extender Card Guides
EDAC Inc. 337-074-523-808	Gold	10 Ąin	2	Dual	0.054 in	0.07 in	Female	37 pos 74	Solder	Through Hole	Cantilever	Green	4-40 Threaded Insert Top Mount Opening	Dual Edge Non Specified	0.156 in	Copper Alloy	-40 °C	105 °C	Polyester Thermoplastic	2 rows
EDAC Inc. 337-074-556-204	Gold	10 Ąin	2	Dual	0.054 in	0.07 in	Female	37 pos 74	Solder	Board Edge Straddle Mount	Cantilever	Green	Flush Mount Top Opening Unthreaded	Dual Edge Non Specified	0.156 in	Copper Alloy	-40 °C	105 °C	Polyester Thermoplastic	2 rows	0.156 in	Card Extender
EDAC Inc. 337-074-540-868	Gold	10 Ąin	2	Dual	0.054 in	0.07 in	Female	37 pos 74	Wire Wrap	Through Hole	Cantilever	Green	4-40 Threaded Insert Top Mount Opening	Dual Edge Non Specified	0.156 in	Copper Alloy	-40 °C	105 °C	Polyester Thermoplastic	2 rows		Card Guides
