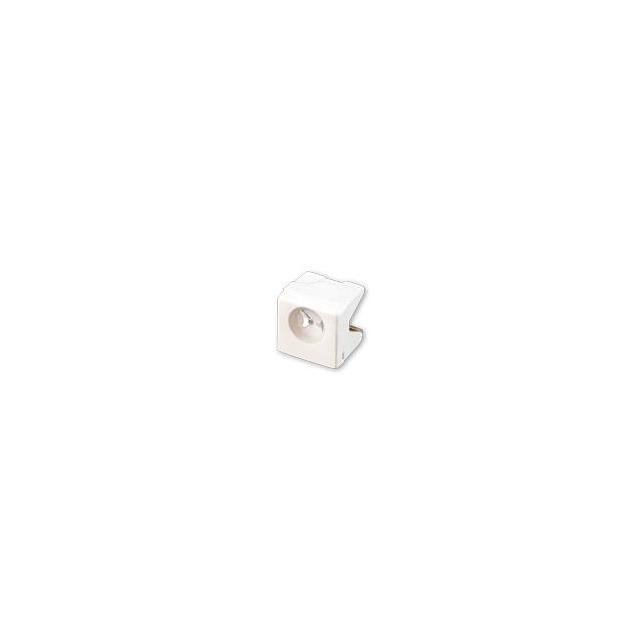

AA4040SRCGKC-R

Obsolete

Kingbright

LED GREEN/RED CLEAR SMD R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AA4040SRCGKC-R

Obsolete

Kingbright

LED GREEN/RED CLEAR SMD R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

AA4040 Series

Green, Red 570nm Green, 640nm Red LED Indication - Discrete 1.85V Green, 2.1V Red 2-SMD, Boomerang

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AA4040SRCGKC-R	AA4040 Series

Color	Red, Green	Yellow, Red, Green, Blue
Configuration	-	Bidirectional, Independent, Standard
Current - Collector (Ic) (Max)	-	600 µA
Current - Dark (Id) (Max)	-	100 nA
Current - DC Forward (If) (Max)	-	50 mA
Current - Test	20 mA, 20 mA	20 mA
Current - Test	-	20mA Red, 20mA Yellow
Height (Max)	-	4 - 4.25 mm
Height (Max) [Max]	4.1 mm	4.1 mm
Lens Color	Colorless	Colorless
Lens Size [diameter]	2.4 mm	1.4 - 2.4 mm
Lens Style	-	Round with Domed Top
Lens Transparency	Clear	Clear
Millicandela Rating	90 mcd, 200 mcd	6 - 1300 mcd
Millicandela Rating	-	1800 mcd
Millicandela Rating	-	250 mcd
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Orientation	-	Side View
Package / Case	2-SMD, Boomerang	2-SMD, Boomerang
Power - Max	-	100 mW
Radiant Intensity (Ie) Min @ If	-	1.2 mW/sr
Size / Dimension [x]	4 mm	3.6 - 4 mm
Size / Dimension [y]	3.6 mm	3.6 - 4 mm
Supplier Device Package	SMD	2-SMD, SMD
Type	-	Infrared (IR)
Viewing Angle	120 °	120 °
Viewing Angle	-	90 °
Voltage - Collector Emitter Breakdown (Max)	-	30 V
Voltage - Forward (Vf) (Typ)	2.1 V, 1.85 V	1.3 - 3.3 V
Wavelength	-	880 - 940 nm
Wavelength - Dominant	570 nm, 640 nm	465 - 640 nm
Wavelength - Peak	-	460 - 660 nm
Wavelength - Peak [custom]	655 nm	655 nm
Wavelength - Peak [custom]	574 nm	574 nm

AA4040 Series

LED RED/YLW CLEAR 2SMD R/A

Part	Configuration	Current - Test	Mounting Type	Millicandela Rating [custom]	Millicandela Rating [custom]	Height (Max) [Max]	Viewing Angle	Lens Transparency	Color	Lens Color	Size / Dimension [x]	Size / Dimension [y]	Lens Size [diameter]	Wavelength - Peak	Package / Case	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Current - Test	Millicandela Rating	Wavelength - Dominant	Height (Max) [Max] [z]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Current - DC Forward (If) (Max) [Max]	Orientation	Type	Wavelength	Radiant Intensity (Ie) Min @ If [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Viewing Angle [custom]
Kingbright AA4040SEKJ3SYKCT-R	Bidirectional	20mA Red, 20mA Yellow	Surface Mount, Right Angle	1800 mcd	250 mcd	4.1 mm	120 °	Clear	Red, Yellow	Colorless	4 mm	3.6 mm	2.4 mm	590 nm, 640 nm	2-SMD, Boomerang	2-SMD
Kingbright AA4040ZGCKT	Independent		Surface Mount, Right Angle			4.1 mm	120 °	Clear	Green	Colorless	3.6 mm	4 mm	2.4 mm	515 nm	2-SMD, Boomerang	2-SMD	3.3 V	20 mA	800 mcd	525 nm
Kingbright AA4040CGCK	Standard		Surface Mount, Right Angle				120 °	Clear	Green	Colorless	4 mm	3.6 mm	2.4 mm		2-SMD, Boomerang	SMD	2.1 V	20 mA	70 mcd	570 nm	4 mm
Kingbright AA4040SRCGKC-R			Surface Mount, Right Angle			4.1 mm	120 °	Clear	Green, Red	Colorless	4 mm	3.6 mm	2.4 mm		2-SMD, Boomerang	SMD	1.85 V, 2.1 V	20 mA, 20 mA	90 mcd, 200 mcd	570 nm, 640 nm		655 nm	574 nm
Kingbright AA4040QBS/D	Standard		Surface Mount, Right Angle				120 °	Clear	Blue	Colorless	4 mm	3.6 mm	2.4 mm	460 nm	2-SMD, Boomerang	SMD	3.3 V	20 mA	220 mcd	465 nm	4 mm
Kingbright AA4040SYSK	Standard		Surface Mount, Right Angle				120 °	Clear	Yellow	Colorless	4 mm	3.6 mm	2.4 mm	590 nm	2-SMD, Boomerang	SMD	2 V	20 mA	250 mcd	590 nm	4 mm
Kingbright AA4040MGS	Standard		Surface Mount, Right Angle				120 °	Clear	Green	Colorless	4 mm	3.6 mm	2.4 mm		2-SMD, Boomerang	SMD	2.1 V	20 mA	120 mcd	570 nm	4 mm
Kingbright AA4040SF4S-P22			Surface Mount, Right Angle				120 °								2-SMD, Boomerang		1.3 V							50 mA	Side View	Infrared (IR)	880 nm	1.2 mW/sr	85 °C	-40 °C
Kingbright AA4040SGS	Standard		Surface Mount, Right Angle				120 °	Clear	Green	Colorless	4 mm	3.6 mm	2.4 mm	565 nm	2-SMD, Boomerang	SMD	2.2 V	20 mA	30 mcd	568 nm	4 mm
Kingbright AA4040SURCK	Standard		Surface Mount, Right Angle					Clear	Red	Colorless	4 mm	3.6 mm	2.4 mm	650 nm	2-SMD, Boomerang	SMD	1.95 V	20 mA	250 mcd	630 nm	4 mm										90 °
