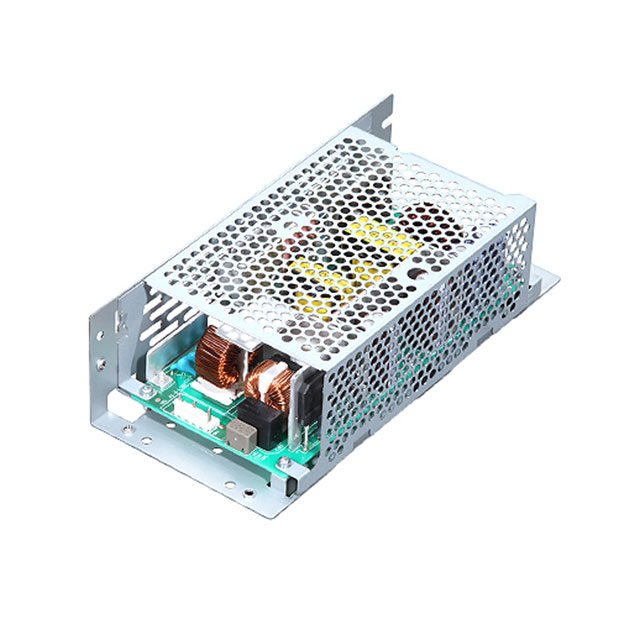

LFP240F-48-SNY

Active

Cosel USA, Inc.

AC/DC CONVERTER 48V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LFP240F-48-SNY

Active

Cosel USA, Inc.

AC/DC CONVERTER 48V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LFP240F-48-SNY

Applications	ITE (Commercial)
Approval Agency	cURus, CE, TUV
Current - Output 1	5 A
Efficiency	89 %
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Size / Dimension [x]	7.09 in
Size / Dimension [x]	180.1 mm
Size / Dimension [y]	3.31 "
Size / Dimension [y]	84.1 mm
Size / Dimension [z]	1.81 "
Size / Dimension [z]	46 mm
Type	Enclosed
Voltage - Isolation	3000 V
Voltage - Output 1	48 V

LFP240F Series

Part	Voltage - Output 1	Mounting Type	Approval Agency	Efficiency	Applications	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Number of Outputs	Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Isolation	Current - Output 1	Features	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)
Cosel USA, Inc. LFP240F-36-R2Y	36 V	Chassis Mount	CE cURus TUV	89 %	ITE (Commercial)	-10 °C	158 °F	1	Open Frame	1.81 "	3.31 "	7.09 in	46 mm	84.1 mm	180.1 mm	3000 V	6.7 A
Cosel USA, Inc. LFP240F-24-SY	24 V	Chassis Mount	CE cURus TUV	88.5 %	ITE (Commercial)	-10 °C	158 °F	1	Open Frame	1.81 "	3.31 "	7.09 in	46 mm	84.1 mm	180.1 mm	3000 V	10 A
Cosel USA, Inc. LFP240F-48-SNY	48 V	Chassis Mount	CE cURus TUV	89 %	ITE (Commercial)	-10 °C	158 °F	1	Enclosed	1.81 "	3.31 "	7.09 in	46 mm	84.1 mm	180.1 mm	3000 V	5 A
Cosel USA, Inc. LFP240F-36-TY	36 V	Chassis Mount	CE cURus TUV	89 %	ITE (Commercial)	-10 °C	158 °F	1	Open Frame	1.81 "	3.31 "	7.09 in	46 mm	84.1 mm	180.1 mm	3000 V	6.7 A
Cosel USA, Inc. LFP240F-24-J1RY	24 V	Chassis Mount	CE cURus TUV	88.5 %	ITE (Commercial)	-10 °C	158 °F	1	Open Frame	1.81 "	3.31 "	7.09 in	46 mm	84.1 mm	180.1 mm	3000 V	10 A
Cosel USA, Inc. LFP240F-24-CY	24 V	Chassis Mount	CE cURus TUV	88.5 %	ITE (Commercial)	-10 °C	158 °F	1	Open Frame	1.81 "	3.31 "	7.09 in	46 mm	84.1 mm	180.1 mm	3000 V	10 A
Cosel USA, Inc. LFP240F-24-J1Y	24 V	Chassis Mount	CE cURus TUV	88.5 %	ITE (Commercial)	-10 °C	158 °F	1	Open Frame	1.81 "	3.31 "	7.09 in	46 mm	84.1 mm	180.1 mm	3000 V	10 A
Cosel USA, Inc. LFP240F-48-Y	48 V	Chassis Mount	CE cURus TUV	89 %	ITE (Commercial)			1	Open Frame								5 A	Universal Input	-10 °C	70 °C	240 W
Cosel USA, Inc. LFP240F-48-GY	48 V	Chassis Mount	CE cURus TUV	89 %	ITE (Commercial)	-10 °C	158 °F	1	Open Frame	1.81 "	3.31 "	7.09 in	46 mm	84.1 mm	180.1 mm	3000 V	5 A
Cosel USA, Inc. LFP240F-36-SNY	36 V	Chassis Mount	CE cURus TUV	89 %	ITE (Commercial)	-10 °C	158 °F	1	Enclosed	1.81 "	3.31 "	7.09 in	46 mm	84.1 mm	180.1 mm	3000 V	6.7 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 154.51
		5	$ 149.75
		10	$ 145.00
		25	$ 140.25
		50	$ 135.49

Description

General part information

LFP240F Series

Enclosed AC DC Converters 1 Output 48V 85 ~ 264 VAC Input
