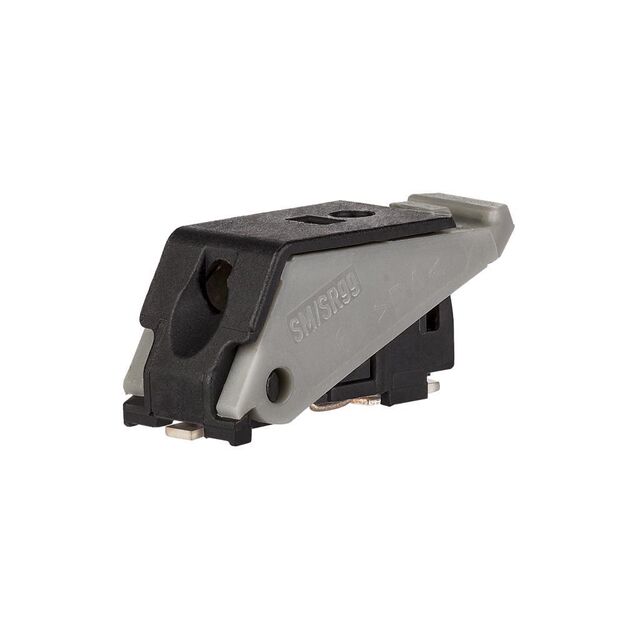

SM99S01VBNN07G7

Active

METZ CONNECT USA Inc.

TERM BLOCK 1POS SIDE ENTRY SMD

Deep-Dive with AI

Search across all available documentation for this part.

SM99S01VBNN07G7

Active

METZ CONNECT USA Inc.

TERM BLOCK 1POS SIDE ENTRY SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SM99S01VBNN07G7	SM99S01VB Series

Clamp Material - Plating	Steel	Steel
Color	Gray	Gray, Black, Yellow, Green, Blue, Brown, White
Contact Material - Plating	Copper Alloy - Tin Plated	Copper Alloy - Tin Plated
Current	9 A	9 A
Features	Push Button Actuated	Push Button Actuated
Housing Material	Polyamide (PA6T), Nylon 6T	Polyamide (PA6T), Nylon 6T
Mating Orientation	Horizontal with Board	Horizontal with Board
Mounting Type	Surface Mount	Surface Mount
Number of Levels	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Positions Per Level	1	1
Voltage	300 V	300 V
Wire Gauge [Max]	24 AWG	24 AWG
Wire Gauge [Min]	16 AWG	16 AWG
Wire Termination	Screwless - Spring Cage, Tension Clamp	Screwless - Spring Cage, Tension Clamp

SM99S01VB Series

TERM BLOCK 1POS SIDE ENTRY SMD

Part	Clamp Material - Plating	Mating Orientation	Wire Gauge [Min]	Wire Gauge [Max]	Current	Housing Material	Operating Temperature [Min]	Operating Temperature [Max]	Positions Per Level	Number of Levels	Mounting Type	Contact Material - Plating	Wire Termination	Features	Color	Voltage
METZ CONNECT USA Inc. SM99S01VBNN07G7	Steel	Horizontal with Board	16 AWG	24 AWG	9 A	Polyamide (PA6T), Nylon 6T	-40 °C	105 ░C	1	1	Surface Mount	Copper Alloy - Tin Plated	Screwless - Spring Cage, Tension Clamp	Push Button Actuated	Gray	300 V
METZ CONNECT USA Inc. SM99S01VBNN00G7	Steel	Horizontal with Board	16 AWG	24 AWG	9 A	Polyamide (PA6T), Nylon 6T	-40 °C	105 ░C	1	1	Surface Mount	Copper Alloy - Tin Plated	Screwless - Spring Cage, Tension Clamp	Push Button Actuated	Black	300 V
METZ CONNECT USA Inc. SM99S01VBNN02G7	Steel	Horizontal with Board	16 AWG	24 AWG	9 A	Polyamide (PA6T), Nylon 6T	-40 °C	105 ░C	1	1	Surface Mount	Copper Alloy - Tin Plated	Screwless - Spring Cage, Tension Clamp	Push Button Actuated	Yellow	300 V
METZ CONNECT USA Inc. SM99S01VBNN03G7	Steel	Horizontal with Board	16 AWG	24 AWG	9 A	Polyamide (PA6T), Nylon 6T	-40 °C	105 ░C	1	1	Surface Mount	Copper Alloy - Tin Plated	Screwless - Spring Cage, Tension Clamp	Push Button Actuated	Green	300 V
METZ CONNECT USA Inc. SM99S01VBNN05G7	Steel	Horizontal with Board	16 AWG	24 AWG	9 A	Polyamide (PA6T), Nylon 6T	-40 °C	105 ░C	1	1	Surface Mount	Copper Alloy - Tin Plated	Screwless - Spring Cage, Tension Clamp	Push Button Actuated	Blue	300 V
METZ CONNECT USA Inc. SM99S01VBNN06G7	Steel	Horizontal with Board	16 AWG	24 AWG	9 A	Polyamide (PA6T), Nylon 6T	-40 °C	105 ░C	1	1	Surface Mount	Copper Alloy - Tin Plated	Screwless - Spring Cage, Tension Clamp	Push Button Actuated		300 V
METZ CONNECT USA Inc. SM99S01VBNN08G7	Steel	Horizontal with Board	16 AWG	24 AWG	9 A	Polyamide (PA6T), Nylon 6T	-40 °C	105 ░C	1	1	Surface Mount	Copper Alloy - Tin Plated	Screwless - Spring Cage, Tension Clamp	Push Button Actuated	Brown	300 V
METZ CONNECT USA Inc. SM99S01VBNN01G7	Steel	Horizontal with Board	16 AWG	24 AWG	9 A	Polyamide (PA6T), Nylon 6T	-40 °C	105 ░C	1	1	Surface Mount	Copper Alloy - Tin Plated	Screwless - Spring Cage, Tension Clamp	Push Button Actuated	White	300 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 0.45

Description

General part information

SM99S01VB Series

1 Position Wire to Board Terminal Block Horizontal with Board Surface Mount

Documents

Technical documentation and resources

No documents available
