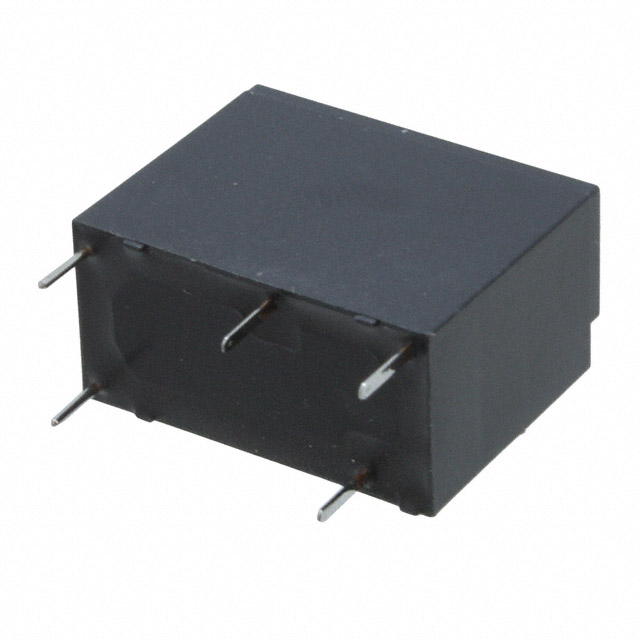

ALQ112
ActivePanasonic Electric Works
RELAY GEN PURPOSE SPDT 10A 12V
Deep-Dive with AI
Search across all available documentation for this part.
ALQ112
ActivePanasonic Electric Works
RELAY GEN PURPOSE SPDT 10A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ALQ112 |
|---|---|
| Approval Agency | cURuus, CQC, VDE |
| Coil Current | 33.3 mA |
| Coil Insulation | Class B |
| Coil Resistance | 360 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 5 A |
| Load - Max Switching | 1250 VA, 150 W |
| Mounting Type | Through Hole |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 0.6 VDC |
| Operate Time | 20 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 20 ms |
| Switching Voltage [Max] | 30 VDC, 250 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1.33 | |
| 10 | $ 1.18 | |||
| 25 | $ 1.13 | |||
| 50 | $ 1.09 | |||
| 100 | $ 1.05 | |||
| 300 | $ 1.00 | |||
| 500 | $ 0.97 | |||
| 1000 | $ 0.94 | |||
| 5000 | $ 0.87 | |||
Description
General part information
ALQ11 Series
General Purpose Relay SPDT (1 Form C) 12VDC Coil Through Hole
