SRF2I019-200

Active

Antenova

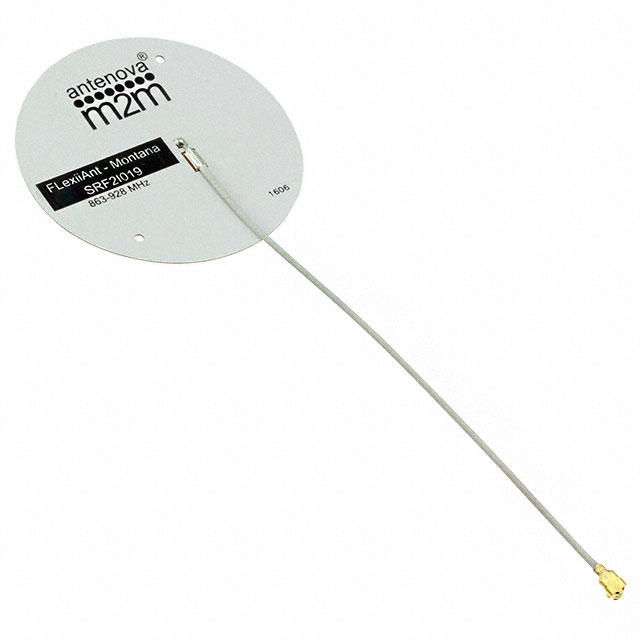

RF ANT 868MHZ/915MHZ FLAT PATCH

Search across all available documentation for this part.

Active

Antenova

RF ANT 868MHZ/915MHZ FLAT PATCH

Technical Specifications

Parameters and characteristics commom to parts in this series

RF ANT 868MHZ/915MHZ FLAT PATCH

Part	VSWR	Frequency Range [Max]	Frequency Range [Min]	RF Family/Standard	Return Loss	Height (Max)	Height (Max) [Max]	Termination	Frequency Group [Max]	Frequency Group [Min]	Applications	Features	Features	Mounting Type	Gain	Antenna Type	Frequency (Center/Band)	Number of Bands
Antenova SRF2I019-200	1.7	870 MHz, 928 MHz	863 MHz, 902 MHz	General ISM	-11 dB	0.15 mm	0.006 in	IPEX MHF1, U.FL (UMCC)	1 GHz	300 MHz	ISM	Cable	200 mm	Adhesive	1.9 dBi	Flat Patch	868 MHz, 915 MHz	2
Antenova SRF2I019-100	1.7	870 MHz, 928 MHz	863 MHz, 902 MHz	General ISM	-11 dB	0.15 mm	0.006 in	IPEX MHF1, U.FL (UMCC)	1 GHz	300 MHz	ISM	Cable	100 mm	Adhesive	1.9 dBi	Flat Patch	868 MHz, 915 MHz	2
Antenova SRF2I019-150	1.7	870 MHz, 928 MHz	863 MHz, 902 MHz	General ISM	-11 dB	0.15 mm	0.006 in	IPEX MHF1, U.FL (UMCC)	1 GHz	300 MHz	ISM	Cable - 150mm		Adhesive	1.9 dBi	Flat Patch	868 MHz, 915 MHz	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 3.02

General part information

RF ANTENNA ISM Flat Patch U.FL (UMCC), IPEX MHF1 Adhesive

Technical documentation and resources
