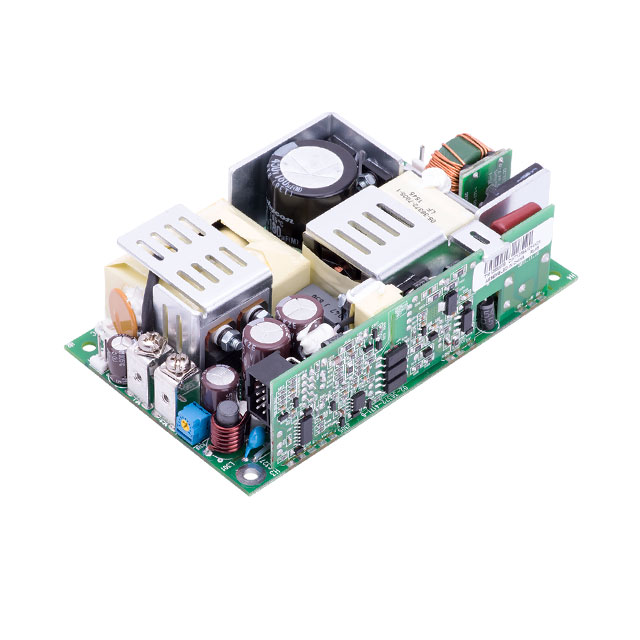

CINT1275A1214K01

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 12V 180W

Search across all available documentation for this part.

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 12V 180W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	40	$ 170.37

General part information

Open Frame AC DC Converters 1 Output 12V 90 ~ 264 VAC Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	CINT1275A1214K01	CINT1275 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE	CE
Current - Output 1	15 A	3.2 - 15 A
Efficiency	92 %	92 %
Features	Universal Input, DC Input Capable, Adjustable Output, Standby Output	Universal Input, DC Input Capable, Adjustable Output, Standby Output
Minimum Load Required	False	False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	180 W, 275 W	180 - 275 W
Size / Dimension [x]	127 mm	127 mm
Size / Dimension [x]	5 in	5 in
Size / Dimension [y]	76.2 mm	76.2 mm
Size / Dimension [y]	3 "	3 "
Size / Dimension [z]	35.1 mm	35.1 mm
Size / Dimension [z]	1.38 in	1.38 in
Type	Open Frame	Open Frame
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Isolation	4000 V	4000 V
Voltage - Output 1	12 V	12 - 56 V

AC/DC CONVERTER 56V 180W

Part	Number of Outputs	Power (Watts)	Voltage - Output 1	Approval Agency	Voltage - Isolation	Features	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Type	Mounting Type	Current - Output 1	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]
SL POWER / Advanced Energy CINT1275A5614K01	1	180 W, 275 W	56 V	CE	4000 V	Adjustable Output, DC Input Capable, Standby Output, Universal Input	35.1 mm	127 mm	1.38 in	76.2 mm	3 "	5 in	90 VAC	264 VAC	ITE (Commercial)	Open Frame	Chassis Mount	3.2 A	92 %	-10 °C	70 °C
SL POWER / Advanced Energy CINT1275A1214K01	1	180 W, 275 W	12 V	CE	4000 V	Adjustable Output, DC Input Capable, Standby Output, Universal Input	35.1 mm	127 mm	1.38 in	76.2 mm	3 "	5 in	90 VAC	264 VAC	ITE (Commercial)	Open Frame	Chassis Mount	15 A	92 %	-10 °C	70 °C
SL POWER / Advanced Energy CINT1275A4814K01	1	180 W, 275 W	48 V	CE	4000 V	Adjustable Output, DC Input Capable, Standby Output, Universal Input	35.1 mm	127 mm	1.38 in	76.2 mm	3 "	5 in	90 VAC	264 VAC	ITE (Commercial)	Open Frame	Chassis Mount	3.75 A	92 %	-10 °C	70 °C
SL POWER / Advanced Energy CINT1275A2414K01	1	180 W, 275 W	24 V	CE	4000 V	Adjustable Output, DC Input Capable, Standby Output, Universal Input	35.1 mm	127 mm	1.38 in	76.2 mm	3 "	5 in	90 VAC	264 VAC	ITE (Commercial)	Open Frame	Chassis Mount		92 %	-10 °C	70 °C
