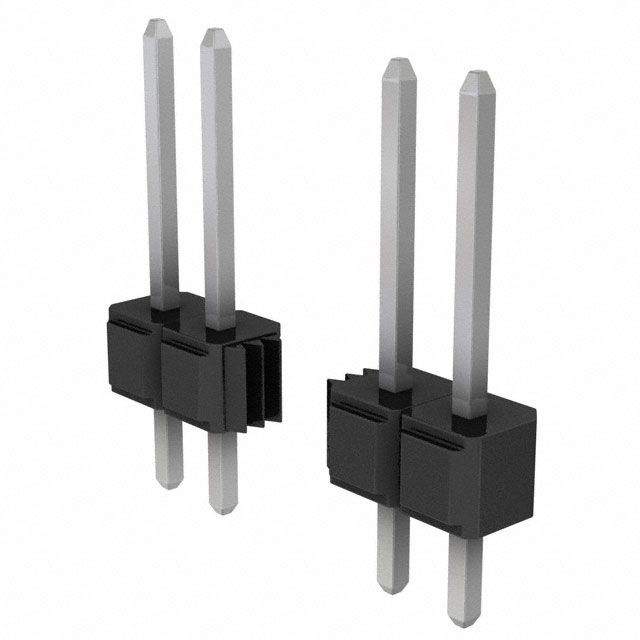

929700-01-20-RK

Active

3M (TC)

CONN HEADER VERT 20POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Catalog Datasheet

929700-01-20-RK

Active

3M (TC)

CONN HEADER VERT 20POS 2.54MM

Deep-Dive with AI

DocumentsInterconnect Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	929700-01-20-RK

Connector Type	Breakaway, Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	5.08 µm
Contact Finish Thickness - Mating	200 µin
Contact Length - Mating [x]	0.318 "
Contact Length - Mating [x]	8.08 mm
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.5 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Overall Contact Length	13.42 mm
Overall Contact Length	0.528 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Solder

929700 Series

...

Part	Insulation Height	Insulation Height	Insulation Material	Shrouding	Termination	Contact Finish - Mating	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Number of Positions Loaded	Mounting Type	Contact Shape	Contact Length - Post [x]	Contact Length - Post	Contact Type	Connector Type	Fastening Type	Current Rating (Amps)	Contact Length - Mating [x]	Contact Length - Mating [x]	Overall Contact Length	Overall Contact Length	Material Flammability Rating	Number of Positions	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Finish - Post	Contact Length - Post [x]	Overall Contact Length
3M (TC) 929700-01-35	0.1 in	2.54 mm	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Unshrouded	Solder	Tin-Lead	Copper Alloy	2.54 çm	100 çin	1	-40 °C	105 ░C	Black	All	Through Hole	Square	0.11 in	2.79 mm	Male Pin	Breakaway Header	Push-Pull	2.5 A	0.318 "	8.08 mm	13.42 mm	0.528 in	UL94 V-0	35	0.1 in	2.54 mm
3M (TC) 929700-08-01-RK	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT)	Unshrouded	Solder		Copper Alloy	5.08 µm	200 µin	1	-40 °C	105 ░C	Black	All	Through Hole	Square		7.87 mm	Male Pin	Breakaway Header	Push-Pull	2.5 A	0.318 "	8.08 mm	18.49 mm	0.728 in	UL94 V-0	1			0.31 in	Tin
3M (TC) 929700-08-25-RK	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT)	Unshrouded	Solder		Copper Alloy	5.08 µm	200 µin	1	-40 °C	105 ░C	Black	All	Through Hole	Square		7.87 mm	Male Pin	Breakaway Header	Push-Pull	2.5 A	0.318 "	8.08 mm	18.49 mm	0.728 in	UL94 V-0	26	0.1 in	2.54 mm	0.31 in	Tin
3M (TC) 929700-01-20-RK	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT)	Unshrouded	Solder		Copper Alloy	5.08 µm	200 µin	1	-40 °C	105 ░C	Black	All	Through Hole	Square	0.11 in	2.79 mm	Male Pin	Breakaway Header	Push-Pull	2.5 A	0.318 "	8.08 mm	13.42 mm	0.528 in	UL94 V-0	20	0.1 in	2.54 mm		Tin
3M (TC) 929700-11-23	0.1 in	2.54 mm	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Unshrouded	Solder	Tin-Lead	Copper Alloy	2.54 çm	100 çin	1	-40 °C	105 ░C	Black	All	Through Hole	Square	0.125 in		Male Pin	Breakaway Header	Push-Pull	2.5 A	0.318 "	8.08 mm	13.8 mm	0.543 in	UL94 V-0	23	0.1 in	2.54 mm			3.18 mm
3M (TC) 929700-11-14	0.1 in	2.54 mm	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Unshrouded	Solder	Tin-Lead	Copper Alloy	2.54 çm	100 çin	1	-40 °C	105 ░C	Black	All	Through Hole	Square	0.125 in		Male Pin	Breakaway Header	Push-Pull	2.5 A	0.318 "	8.08 mm	13.8 mm	0.543 in	UL94 V-0	14	0.1 in	2.54 mm			3.18 mm
3M (TC) 929700-06-17-RK	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT)	Unshrouded	Solder		Copper Alloy	5.08 µm	200 µin	1	-40 °C	105 ░C	Black	All	Through Hole	Square		18.03 mm	Male Pin	Breakaway Header	Push-Pull	2.5 A	0.318 "	8.08 mm	28.65 mm		UL94 V-0		0.1 in	2.54 mm	0.71 "	Tin		1.128 "
3M (TC) 929700-06-30-RK	0.1 in	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT)	Unshrouded	Solder		Copper Alloy	5.08 µm	200 µin	1	-40 °C	105 ░C	Black	All	Through Hole	Square		18.03 mm	Male Pin	Breakaway Header	Push-Pull	2.5 A	0.318 "	8.08 mm	28.65 mm		UL94 V-0	30	0.1 in	2.54 mm	0.71 "	Tin		1.128 "
3M (TC) 929700-01-03	0.1 in	2.54 mm	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Unshrouded	Solder	Tin-Lead	Copper Alloy	2.54 çm	100 çin	1	-40 °C	105 ░C	Black	All	Through Hole	Square	0.11 in	2.79 mm	Male Pin	Breakaway Header	Push-Pull	2.5 A	0.318 "	8.08 mm	13.42 mm	0.528 in	UL94 V-0		0.1 in	2.54 mm
3M (TC) 929700-01-18	0.1 in	2.54 mm	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Unshrouded	Solder	Tin-Lead	Copper Alloy	2.54 çm	100 çin	1	-40 °C	105 ░C	Black	All	Through Hole	Square	0.11 in	2.79 mm	Male Pin	Breakaway Header	Push-Pull	2.5 A	0.318 "	8.08 mm	13.42 mm	0.528 in	UL94 V-0	18	0.1 in	2.54 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.20
		10	$ 1.92
		100	$ 1.71
		500	$ 1.43
		1000	$ 1.22
		5000	$ 1.08

Description

General part information

929700 Series

Connector Header Through Hole 20 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Interconnect Catalog

Datasheet
