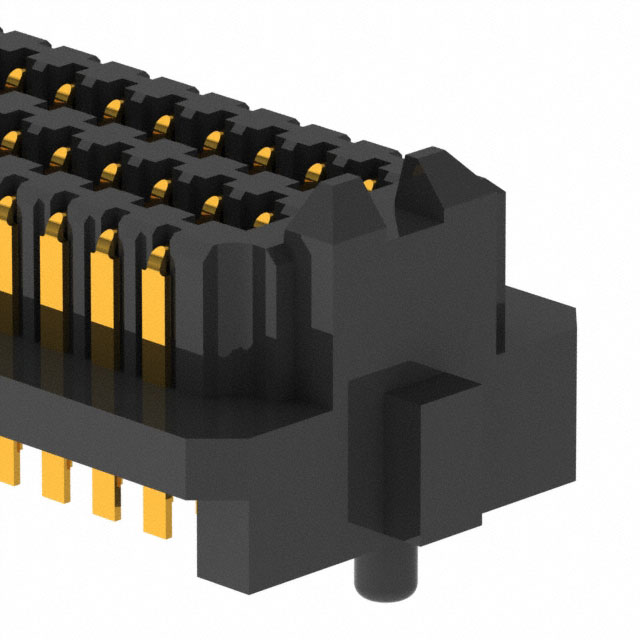

SEAM-19-03.5-S-06-2-A-K-TR

Active

Samtec Inc.

CONN HD ARRAY PLUG 114P SMD GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HD ARRAY PLUG 114P SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Part	Pitch [x]	Pitch [x]	Connector Type	Mounting Type	Mated Stacking Heights	Number of Rows	Number of Positions	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Features	Height Above Board [z]	Height Above Board [z]
Samtec Inc. SEAM-19-03.5-S-06-2-A-K-TR	0.05 in	1.27 mm	High Density Array Male	Surface Mount	8.5 mm 9.5 mm 10 mm 11 mm 11.5 mm	6	114	Gold	0.76 Ám	30 Áin	Board Guide Pick and Place	0.24 "	6.1 mm
Samtec Inc. SEAM-19-03.5-L-06-2-A-K-TR	0.05 in	1.27 mm	High Density Array Male	Surface Mount	8.5 mm 9.5 mm 10 mm 11 mm 11.5 mm	6	114	Gold	0.25 Ám	10 Áin	Board Guide Pick and Place	0.24 "	6.1 mm
Samtec Inc. SEAM-19-03.5-L-06-1-A-K-TR	0.05 in	1.27 mm	High Density Array Male	Surface Mount	8.5 mm 9.5 mm 10 mm 11 mm 11.5 mm	6	114	Gold	0.25 Ám	10 Áin	Board Guide Pick and Place	0.24 "	6.1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	200	$ 10.96

General part information

114 Position Connector High Density Array, Male Surface Mount Gold
