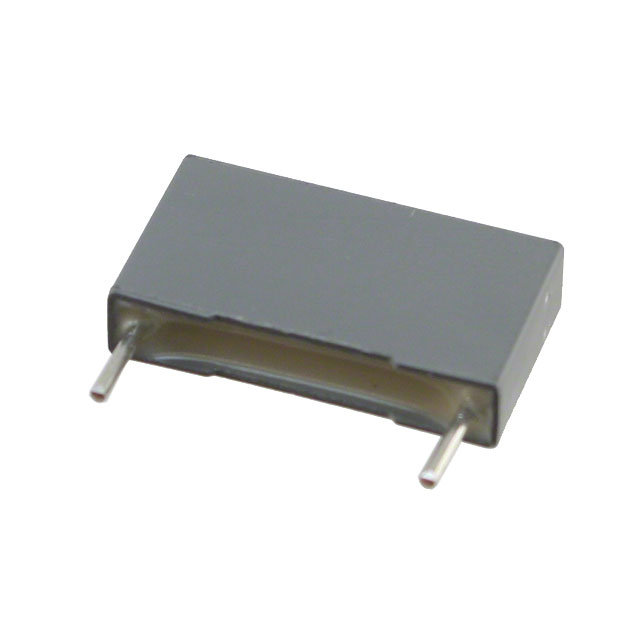

R747I1150AAH3J

Active

KEMET

CAP FILM 1500PF 5% 2KVDC RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP FILM 1500PF 5% 2KVDC RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	R747I1150AAH3J

Applications	High Pulse, DV/DT
Capacitance	1500 pF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max]	0.437 in
Height - Seated (Max) [Max]	11.1 mm
Lead Spacing	15 mm
Lead Spacing	0.591 in
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	18 mm
Size / Dimension [x]	0.709 in
Size / Dimension [y]	0.197 "
Size / Dimension [y]	5 mm
Termination	PC Pins
Tolerance	5 %
Voltage Rating - AC	700 V
Voltage Rating - DC	2 kV
Voltage Rating - DC	2 kVDC

Part	Tolerance	Mounting Type	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage Rating - DC	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Lead Spacing	Lead Spacing	Voltage Rating - AC	Capacitance	Termination	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Dielectric Material	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET R747I1150AA00J	5 %	Through Hole	DV/DT High Pulse	11 mm	0.433 in	2 kV	2 kVDC	105 ░C	-55 °C	15 mm	0.591 in	700 V	1500 pF	PC Pins	18 mm	0.197 "	5 mm	0.709 in	Metallized Polypropylene (PP)	Radial
KEMET R747I1150AAH3J	5 %	Through Hole	DV/DT High Pulse			2 kV	2 kVDC	125 °C	-55 °C	15 mm	0.591 in	700 V	1500 pF	PC Pins	18 mm	0.197 "	5 mm	0.709 in	Metallized Polypropylene (PP)	Radial	0.437 in	11.1 mm
KEMET R747I1100AA00J	5 %	Through Hole	DV/DT High Pulse			2 kV	2 kVDC	105 ░C	-55 °C	15 mm	0.591 in	700 V	0.001 µF	PC Pins	18 mm	0.197 "	5 mm	0.709 in	Metallized Polypropylene (PP)	Radial	0.437 in	11.1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.59
		10	$ 0.35
Newark	Each	2500	$ 0.17

General part information

1500 pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial
