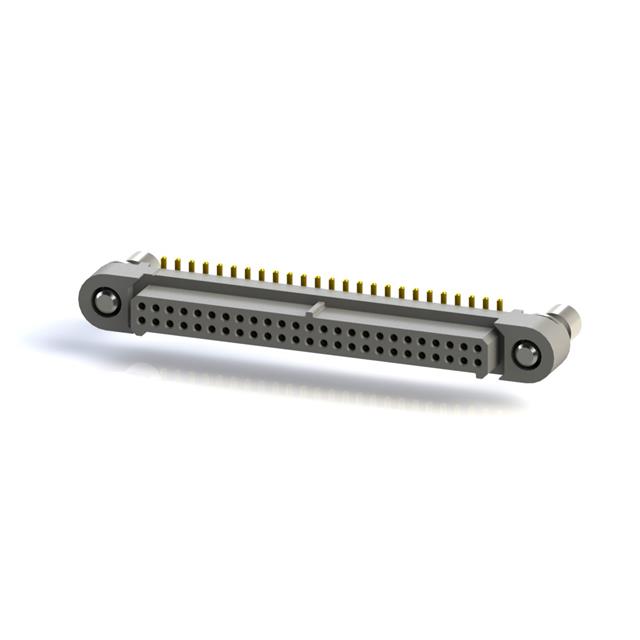

A222T50V16

Active

Nicomatic

FEM. 50POS STRAIGHT SMT 1.27MM

Search across all available documentation for this part.

Active

Nicomatic

FEM. 50POS STRAIGHT SMT 1.27MM

Technical Specifications

Parameters and characteristics for this part

Specification	A222T50V16

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.15 µm
Contact Finish Thickness - Mating	5.9 µin
Contact Finish Thickness - Post	0.15 µm
Contact Finish Thickness - Post	5.9 µin
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	2.5 A
Fastening Type	Push-Pull
Features	Polarizing Key, Mounting Flange, Jackscrews, Mating Flange
Insulation Color	Black
Insulation Height [custom]	0.157 in
Insulation Height [custom]	4 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Row Spacing - Mating	0.039 "
Row Spacing - Mating	1 mm
Termination	Solder
Voltage Rating	600 VAC

FEM. 50POS STRAIGHT SMT 1.27MM

Part	Pitch - Mating	Pitch - Mating	Termination	Current Rating (Amps)	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Fastening Type	Insulation Material	Contact Type	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Insulation Height [custom]	Insulation Height [custom]	Material Flammability Rating	Contact Finish - Post	Features	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Insulation Color	Voltage Rating	Contact Material	Contact Finish - Mating	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating
Nicomatic A222T50V16	0.039 in	1 mm	Solder	2.5 A	Circular	0.15 µm	5.9 µin	50	Push-Pull	Liquid Crystal Polymer (LCP)	Female Socket	2	-65 ░C	200 °C	Receptacle	0.157 in	4 mm	UL94 V-0	Gold	Jackscrews, Mating Flange, Mounting Flange, Polarizing Key	0.15 µm	5.9 µin	Surface Mount	Black	600 VAC	Copper Alloy	Gold	All	0.039 "	1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 Position Receptacle Connector 0.039" (1.00mm) Surface Mount Gold
