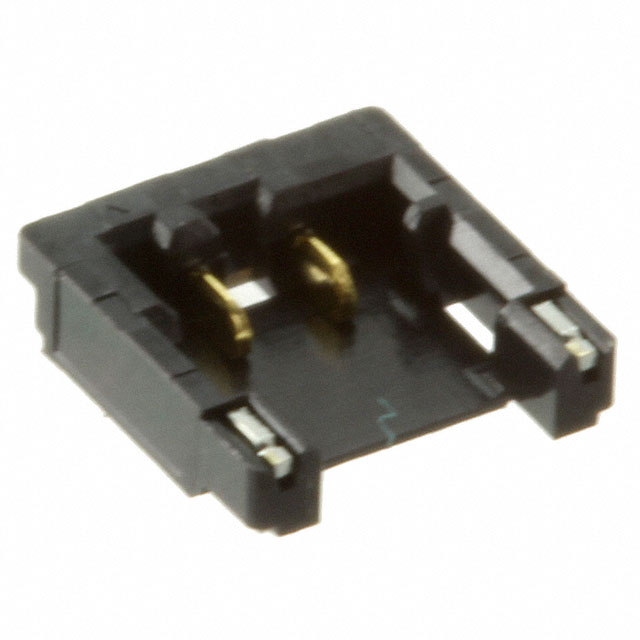

BM02B-ACHLKS-GAN-ETF

Active

JST Sales America Inc.

CONN HEADER SMD R/A 2POS 1.2MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER SMD R/A 2POS 1.2MM

Technical Specifications

Parameters and characteristics for this part

Specification	BM02B-ACHLKS-GAN-ETF

Connector Type	Header
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Male Blade
Current Rating (Amps)	2 A
Fastening Type	Detent Lock
Features	Solder Retention
Insulation Color	Black
Insulation Height	0.047 in
Insulation Height	1.2 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.047 in
Pitch - Mating	1.2 mm
Shrouding	Shrouded - 3 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	50 V

Part	Number of Rows	Termination	Contact Shape	Insulation Material	Contact Material	Contact Finish - Mating	Connector Type	Contact Type	Insulation Height	Insulation Height	Mounting Type	Style	Voltage Rating	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Number of Positions	Features	Shrouding	Insulation Color	Fastening Type	Insulation Height [z]	Insulation Height [z]
JST Sales America Inc. BM02B-ACHLKS-GAN-ETF	1	Solder	Rectangular	Thermoplastic	Copper Alloy	Gold	Header	Male Blade	0.047 in	1.2 mm	Surface Mount Right Angle	Board to Cable/Wire	50 V	0.047 in	1.2 mm	UL94 V-0	All	-25 °C	85 °C	2 A	2	Solder Retention	Shrouded - 3 Wall	Black	Detent Lock
JST Sales America Inc. BM02B-ACHKS-GAN-TF	1	Solder	Rectangular	Thermoplastic	Copper Alloy	Gold	Header	Male Blade			Surface Mount Right Angle	Board to Cable/Wire	50 V	0.047 in	1.2 mm	UL94 V-0	All	-25 °C	85 °C	2 A	2	Solder Retention	Shrouded - 3 Wall	Black	Detent Lock	0.055 in	1.4 mm
JST Sales America Inc. BM02B-ACHSS-GAN-TF	1	Solder	Rectangular	Thermoplastic	Copper Alloy	Gold	Header	Male Blade			Surface Mount Right Angle	Board to Cable/Wire	50 V	0.047 in	1.2 mm	UL94 V-0	All	-25 °C	85 °C	2 A	2	Solder Retention	Shrouded - 3 Wall	Natural	Detent Lock	0.055 in	1.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount, Right Angle 2 position 0.047" (1.20mm)
