Q-2H0470001009i

Active

Amphenol Custom Cable

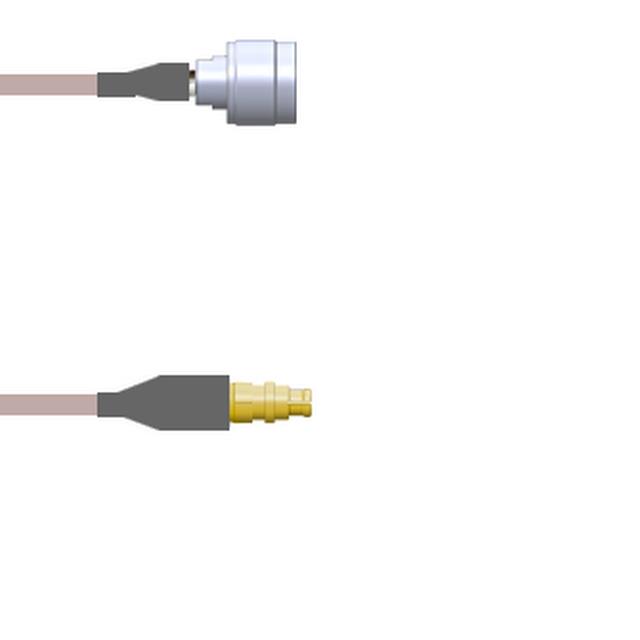

CBL ASSY SMPM-NTYPE PLUG-PLUG 9"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2H0470001009i

Active

Amphenol Custom Cable

CBL ASSY SMPM-NTYPE PLUG-PLUG 9"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2H0470001009i

1st Connector	SMPM Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-178
Color	Copper
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	9 "
Length	228.6 mm
Overall Impedance	50 Ohms
Style	SMPM to N-Type

Q-2H0470 Series

Part	1st Contact Gender	Style	Length	Length	Features	Overall Impedance	2nd Connector Mounting Type	1st Connector	1st Connector Mounting Type	2nd Connector	Color	2nd Contact Gender	Frequency - Max [Max]	Cable Type	Length
Amphenol Custom Cable Q-2H0470001009i	Male	SMPM to N-Type	9 "	228.6 mm	Shielded	50 Ohms	Free Hanging (In-Line)	SMPM Plug	Free Hanging (In-Line)	N-Type Plug	Copper	Male	6000 MHz	RG-178
Amphenol Custom Cable Q-2H0470001060i	Male	SMPM to N-Type	5 '	1.5 m	Shielded	50 Ohms	Free Hanging (In-Line)	SMPM Plug	Free Hanging (In-Line)	N-Type Plug	Copper	Male	6000 MHz	RG-178	5 ft
Amphenol Custom Cable Q-2H0470001001M	Male	SMPM to N-Type	39.4 in	1 m	Shielded	50 Ohms	Free Hanging (In-Line)	SMPM Plug	Free Hanging (In-Line)	N-Type Plug	Copper	Male	6000 MHz	RG-178	3.3 ft
Amphenol Custom Cable Q-2H0470001072i	Male	SMPM to N-Type	72 in	1.8 m	Shielded	50 Ohms	Free Hanging (In-Line)	SMPM Plug	Free Hanging (In-Line)	N-Type Plug	Copper	Male	6000 MHz	RG-178	6 ft
Amphenol Custom Cable Q-2H04700011.5M	Male	SMPM to N-Type	59.1 in	1.5 m	Shielded	50 Ohms	Free Hanging (In-Line)	SMPM Plug	Free Hanging (In-Line)	N-Type Plug	Copper	Male	6000 MHz	RG-178	4.9 ft
Amphenol Custom Cable Q-2H0470001003M	Male	SMPM to N-Type	118.1 in	3 m	Shielded	50 Ohms	Free Hanging (In-Line)	SMPM Plug	Free Hanging (In-Line)	N-Type Plug	Copper	Male	6000 MHz	RG-178	9.8 '
Amphenol Custom Cable Q-2H04700012.5M	Male	SMPM to N-Type	98.4 in	2.5 m	Shielded	50 Ohms	Free Hanging (In-Line)	SMPM Plug	Free Hanging (In-Line)	N-Type Plug	Copper	Male	6000 MHz	RG-178	8.2 '
Amphenol Custom Cable Q-2H0470001108i	Male	SMPM to N-Type	108 in	2.7 m	Shielded	50 Ohms	Free Hanging (In-Line)	SMPM Plug	Free Hanging (In-Line)	N-Type Plug	Copper	Male	6000 MHz	RG-178	9 ft
Amphenol Custom Cable Q-2H0470001.75M	Male	SMPM to N-Type	29.53 "	750 mm	Shielded	50 Ohms	Free Hanging (In-Line)	SMPM Plug	Free Hanging (In-Line)	N-Type Plug	Copper	Male	6000 MHz	RG-178
Amphenol Custom Cable Q-2H0470001002M	Male	SMPM to N-Type	78.7 in	2 m	Shielded	50 Ohms	Free Hanging (In-Line)	SMPM Plug	Free Hanging (In-Line)	N-Type Plug	Copper	Male	6000 MHz	RG-178	6.6 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 110.06
		25	$ 107.99
		50	$ 105.92
		100	$ 103.85
		250	$ 101.78

Description

General part information

Q-2H0470 Series

Cable Assembly Coaxial SMPM to N-Type RG-178 9.000" (228.60mm)

Documents

Technical documentation and resources

No documents available
