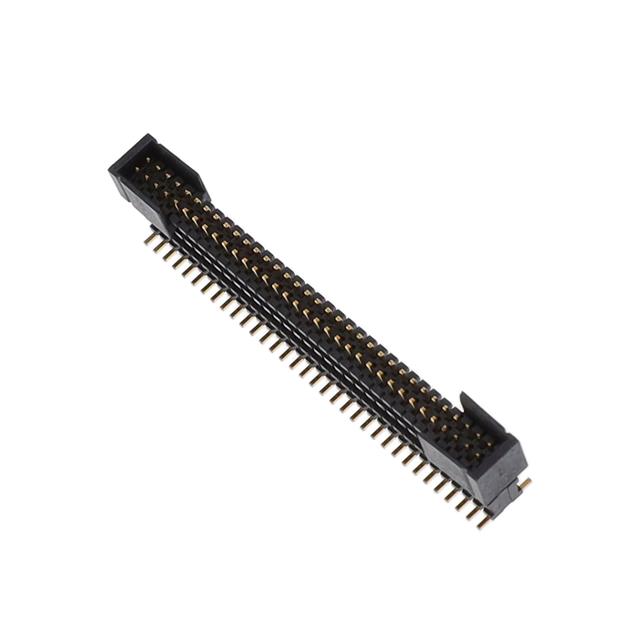

FW-34-03-G-D-295-075-ES-A

Active

Samtec Inc.

CONN HDR 68POS 0.05 STACK SMD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR 68POS 0.05 STACK SMD

Technical Specifications

Parameters and characteristics for this part

Specification	FW-34-03-G-D-295-075-ES-A

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin [x]	9.4 mm
Length - Overall Pin [x]	0.37 in
Length - Post (Mating) [x]	0.075 in
Length - Post (Mating) [x]	1.905 mm
Length - Stack Height [x]	0.295 in
Length - Stack Height [x]	7.493 mm
Mounting Type	Surface Mount
Number of Positions	68
Number of Rows	2
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Row Spacing	1.27 mm
Row Spacing	0.05 in
Termination	Solder

Part	Number of Positions	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Length - Stack Height [x]	Length - Stack Height [x]	Contact Finish - Post (Mating)	Length - Overall Pin [x]	Length - Overall Pin [x]	Mounting Type	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Color	Number of Rows	Termination	Pitch [x]	Pitch [x]	Row Spacing	Row Spacing	Length - Overall Pin	Length - Overall Pin	Length - Stack Height [z]	Length - Stack Height [z]
Samtec Inc. FW-34-03-G-D-295-075-ES-A	68	0.075 in	1.905 mm	0.295 in	7.493 mm	Gold	9.4 mm	0.37 in	Surface Mount	0.25 Ám	10 Áin	Black	2	Solder	0.05 in	1.27 mm	1.27 mm	0.05 in
Samtec Inc. FW-34-03-F-D-215-118	68	0.118 in	2.997 mm			Gold			Surface Mount	0.076 Ám	3 Áin	Black	2	Solder	0.05 in	1.27 mm	1.27 mm	0.05 in	8.458 mm	0.333 "	5.461 mm	0.215 in
Samtec Inc. FW-34-03-F-D-215-100-A	68	0.1 in	2.54 mm			Gold	8 mm	0.315 "	Surface Mount	0.076 Ám	3 Áin	Black	2	Solder	0.05 in	1.27 mm	1.27 mm	0.05 in			5.461 mm	0.215 in
Samtec Inc. FW-34-03-L-D-220-065	68	0.065 in	1.651 mm			Gold	7.239 mm	0.285 in	Surface Mount	0.25 Ám	10 Áin	Black	2	Solder	0.05 in	1.27 mm	1.27 mm	0.05 in
Samtec Inc. FW-34-03-L-D-285-065	68	0.065 in	1.651 mm			Gold	8.89 mm	0.35 in	Surface Mount	0.25 Ám	10 Áin	Black	2	Solder	0.05 in	1.27 mm	1.27 mm	0.05 in			7.239 mm	0.285 in
Samtec Inc. FW-34-03-G-D-280-120	68	0.12 in	3.048 mm	0.28 in	7.112 mm	Gold	10.16 mm	0.4 in	Surface Mount	0.25 Ám	10 Áin	Black	2	Solder	0.05 in	1.27 mm	1.27 mm	0.05 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

68 Position Header Spacer Connector 0.050" (1.27mm) Gold Surface Mount
