336306-12-0200

Amphenol RF

CBL ASSY AMC-RPSMA JCK-PL 7.874"

Search across all available documentation for this part.

Amphenol RF

CBL ASSY AMC-RPSMA JCK-PL 7.874"

Technical Specifications

Parameters and characteristics for this part

Specification	336306-12-0200

1st Connector	RP-SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Male
2nd Connector	AMC Plug, U.FL (UMCC), Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	1.13mm OD Coaxial Cable
Color	Black
Frequency - Max [Max]	6000 MHz
Length	7.874 in
Length	200 mm
Overall Impedance	50 Ohms
Style	U.FL (UMCC)
Style	AMC to RP-SMA

Part	1st Contact Gender	2nd Connector Mounting Type	Style	Style	2nd Connector	Color	2nd Contact Gender	1st Connector Mounting Type	Frequency - Max [Max]	1st Connector Mounting Feature	Length	Length	Cable Type	1st Connector	Overall Impedance	Cable Type [diameter]	Length [x]	Length [x]
Amphenol RF 336306-12-0200	Male	Free Hanging (In-Line)	U.FL (UMCC)	AMC to RP-SMA	AMC Plug Right Angle U.FL (UMCC)	Black	Female	Panel Mount	6000 MHz	Bulkhead - Front Side Nut	7.874 in	200 mm	1.13mm OD Coaxial Cable	RP-SMA Jack	50 Ohms
Amphenol RF 336306-14-0200	Male	Free Hanging (In-Line)	U.FL (UMCC)	AMC to RP-SMA	AMC Plug Right Angle U.FL (UMCC)	Black	Female	Panel Mount		Bulkhead - Front Side Nut	7.874 in	200 mm		RP-SMA Jack	50 Ohms	1.37 mm
Amphenol RF 336306-12-0100	Male	Free Hanging (In-Line)	U.FL (UMCC)	AMC to RP-SMA	AMC Plug Right Angle U.FL (UMCC)	Black	Female	Panel Mount	6000 MHz	Bulkhead - Front Side Nut			1.13mm OD Coaxial Cable	RP-SMA Jack	50 Ohms		0.1 m	3.937 in
Amphenol RF 336306-14-0050	Male	Free Hanging (In-Line)	U.FL (UMCC)	AMC to RP-SMA	AMC Plug Right Angle U.FL (UMCC)	Black	Female	Panel Mount		Bulkhead - Front Side Nut				RP-SMA Jack	50 Ohms	1.37 mm	50 mm	1.969 in
Amphenol RF 336306-14-0150	Male	Free Hanging (In-Line)	U.FL (UMCC)	AMC to RP-SMA	AMC Plug Right Angle U.FL (UMCC)	Black	Female	Panel Mount		Bulkhead - Front Side Nut				RP-SMA Jack	50 Ohms	1.37 mm	150 mm	5.906 "
Amphenol RF 336306-12-0150	Male	Free Hanging (In-Line)	U.FL (UMCC)	AMC to RP-SMA	AMC Plug Right Angle U.FL (UMCC)	Black	Female	Panel Mount	6000 MHz	Bulkhead - Front Side Nut			1.13mm OD Coaxial Cable	RP-SMA Jack	50 Ohms		150 mm	5.906 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

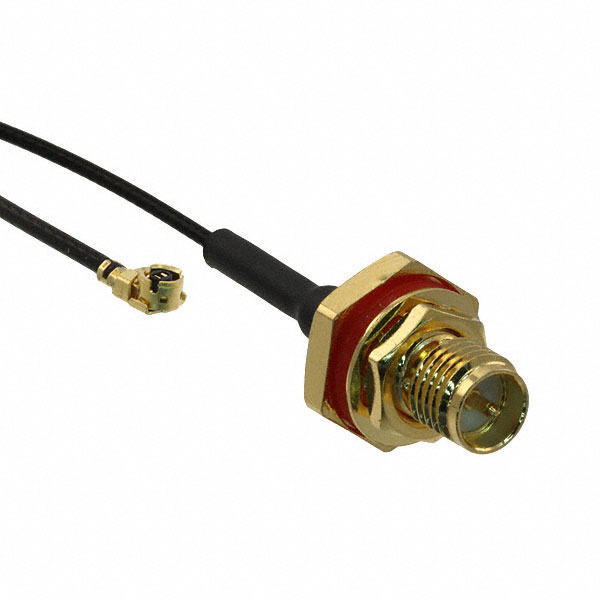

Cable Assembly Coaxial U.FL (UMCC), AMC to RP-SMA 1.13mm OD Coaxial Cable 7.874" (200.00mm)
